Overview

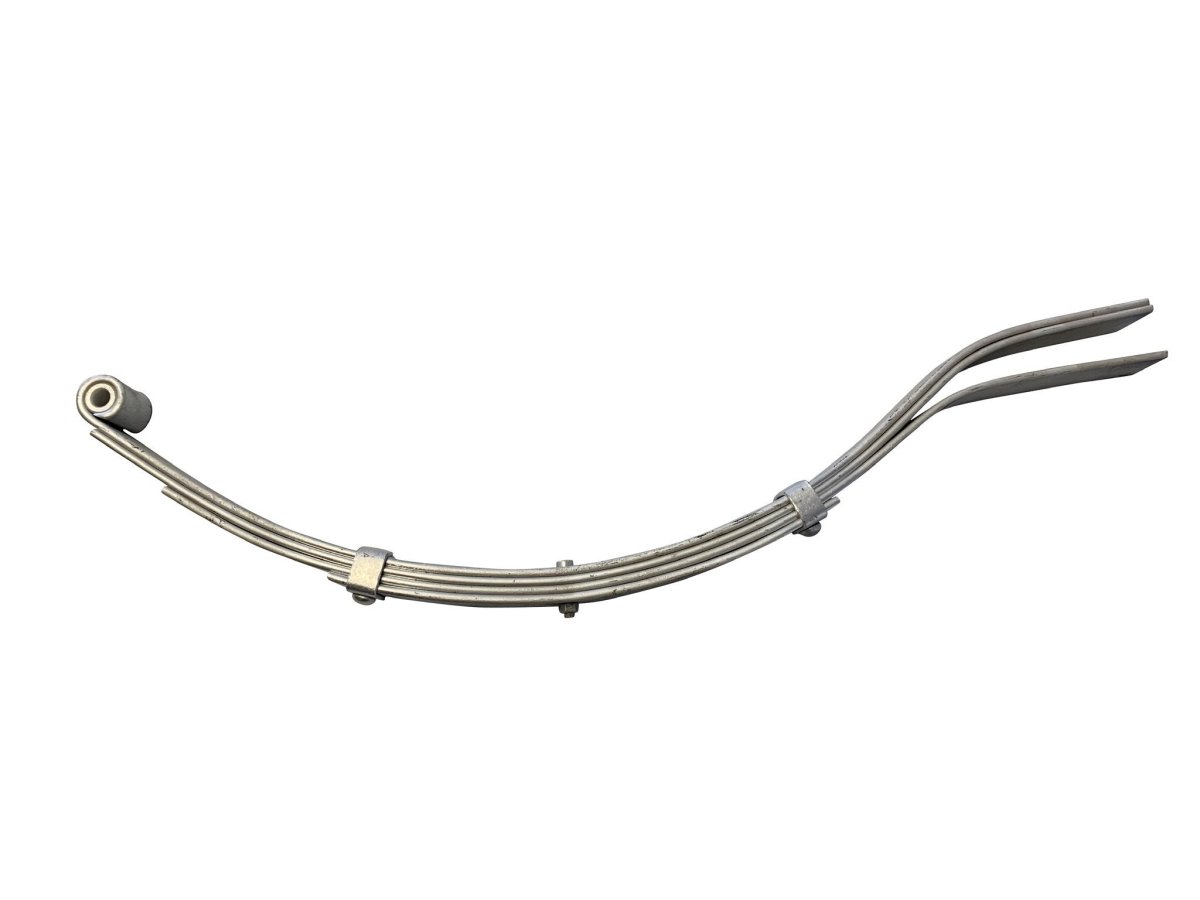

This genuine AL‑KO 5‑Leaf Dacromet Slipper Spring (P/N 584565DT) measures 765 mm eye‑to‑tail, 45 mm wide, with 6 mm thick leaves. Featuring a durable Dacromet zinc‑alloy coating, this spring is ideal for trailers exposed to moisture or coastal conditions.
Each spring provides a 500 kg static load capacity, so a matched pair supports up to 1,000 kg, making it a robust suspension option for heavier trailers. Installation is easy—just slide into AL‑KO hanger setups.
✅ Key Features
-
500 kg static capacity per spring (1,000 kg per axle with two springs)
-
Dacromet corrosion-resistant finish for marine or coastal use
-
5‑leaf configuration (stronger than 4‑leaf models) for enhanced load support
-
Eye‑to‑tail slipper design fits directly into standard AL‑KO hangers
-
Pre-fitted nylon bush (½″ ID × 7/8″ OD × 45 mm wide) ensures smooth articulation
📐 Specifications
| Feature | Specification |
|---|---|
| Part Number | 584565DT |
| Spring Style | 5‑Leaf eye‑to‑tail slipper spring |
| Length (Eye‑to‑Tail) | 765 mm |
| Leaf Width | 45 mm |
| Leaf Thickness | 6 mm |
| Load Rating (Single) | 500 kg |
| Load Rating (Pair) | 1,000 kg |
| Nylon Bush | ½″ ID × 7/8″ OD × 45 mm width |
| Finish | Dacromet zinc‑alloy coating |
| Application | Boat/carry trailers—heavy duty use |
