Overview

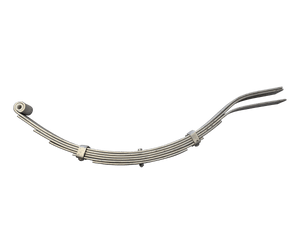

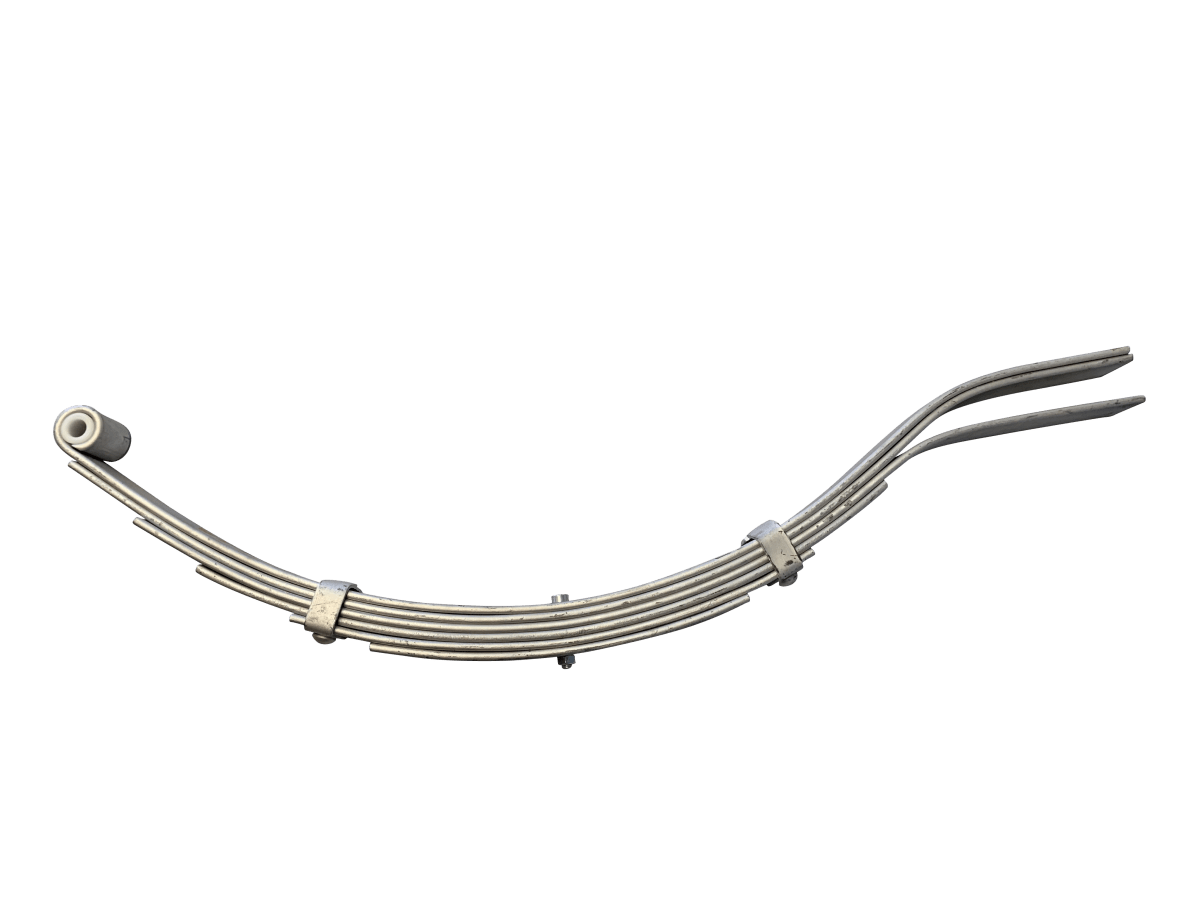

The premium AL‑KO 6‑Leaf Dacromet Slipper Spring (P/N 584566DT) measures 765 mm eye-to-tail, 45 mm wide, with 6 mm thick leaves. Engineered with a Dacromet zinc-alloy coating, it resists rust and wear—ideal for trailer suspension in marine or coastal environments.
Built for robustness, this spring delivers a 600 kg static load rating, meaning a matched pair supports 1200 kg per axle, offering superior durability for heavy-duty trailers.
✅ Key Features
-
★ 600 kg load per spring (1200 kg per axle with pair) — ideal for heavier trailer applications
-
★ 6‑leaf configuration for enhanced load capacity and suspension integrity
-
★ Dacromet corrosion-resistant finish built to endure marine environments
-
★ Eye‑to‑tail design slides smoothly into standard AL‑KO slip-on hangers
-
★ Fitted nylon bush (½″ ID × 7/8″ OD) ensures smooth pivoting and long life
📐 Specifications
| Feature | Specification |
|---|---|
| Part Number | 584566DT |
| Spring Type | 6‑Leaf eye‑to‑tail slipper spring |
| Eye‑to‑Tail Length | 765 mm |
| Leaf Width | 45 mm |
| Leaf Thickness | 6 mm |
| Static Load Rating | 600 kg (per spring); 1 200 kg (per axle) |
| Nylon Bush Size | ½″ ID × 7/8″ OD |
| Coating | Dacromet zinc‑alloy finish |
| Ideal Use Case | Coastal/marine or heavy-duty trailer use |
