Overview

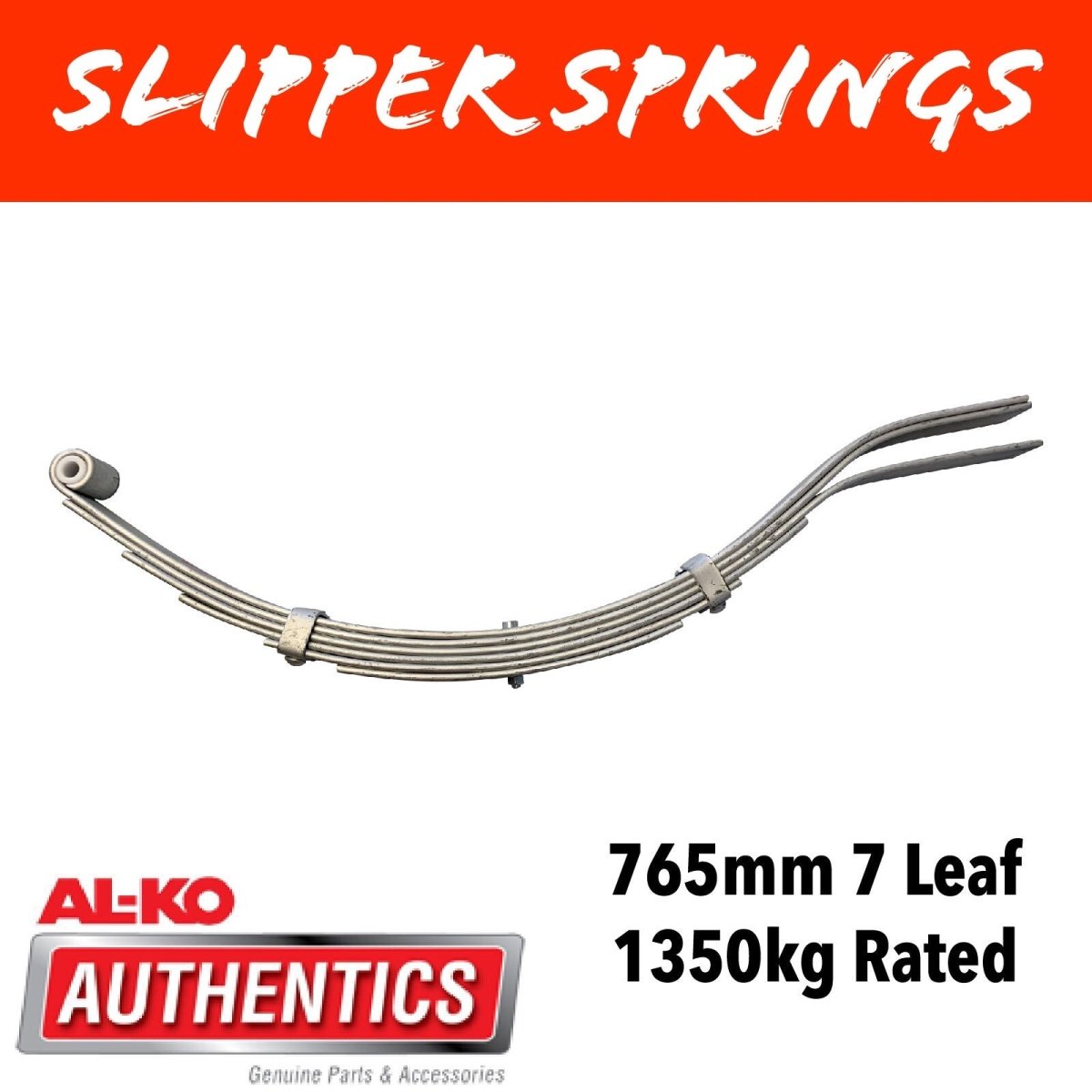

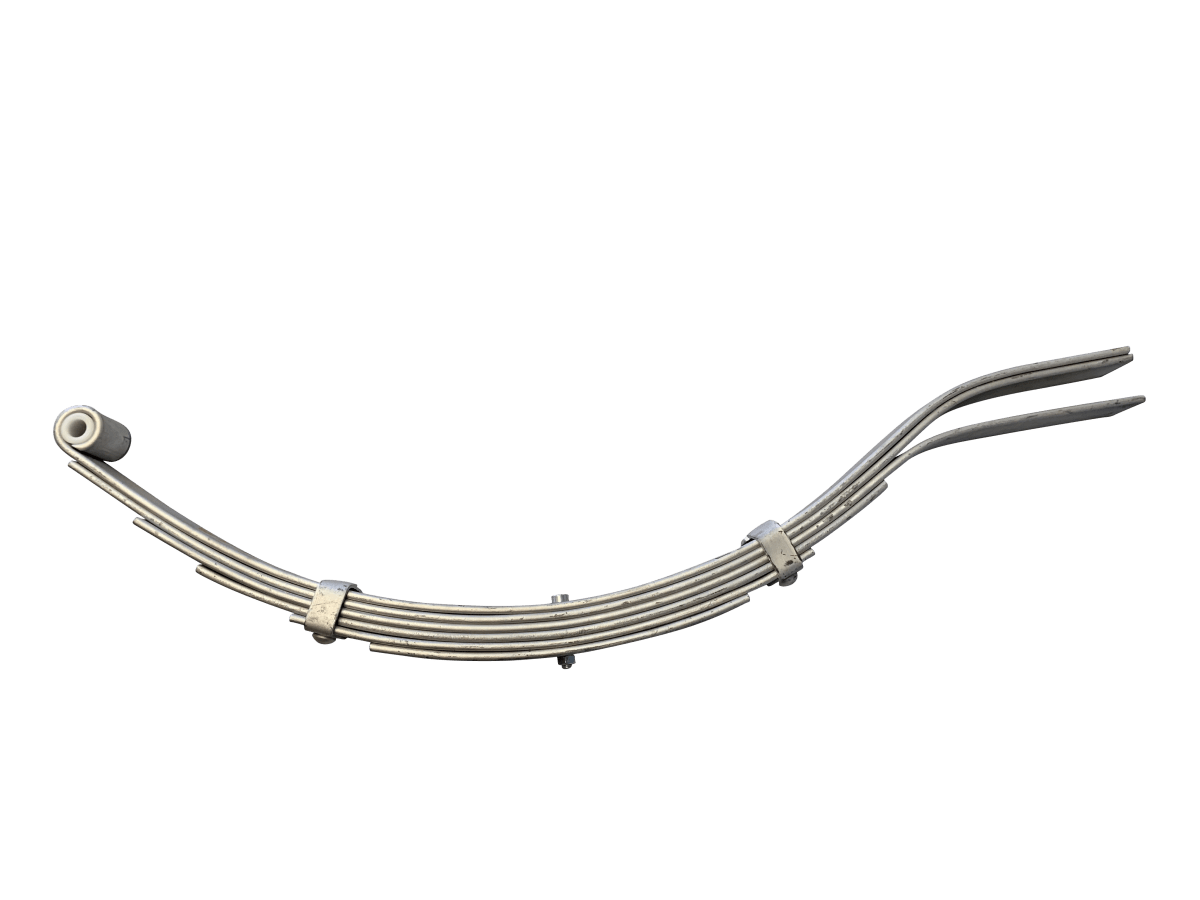

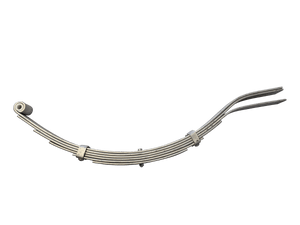

This genuine AL‑KO 7‑Leaf Dacromet Slipper Spring (P/N 584567DT) measures 765 mm eye‑to‑tail, 45 mm wide, with each leaf 6 mm thick, and features a Dacromet zinc‑alloy coating for superior corrosion resistance. Each spring is rated to 675 kg static load, delivering 1,350 kg per axle when installed as a matched pair—ideal for heavier boat or equipment trailers.
✅ Key Features
-
Durable 7‑leaf configuration rated at 675 kg per spring
-
Dacromet coating—marine-grade rust protection
-
Slipper-style (eye-to-tail) design for easy insertion into AL‑KO hangers
-
Fitted nylon bush (½″ ID × 7/8″ OD) for smooth articulation
-
Built to OEM AL‑KO specifications for reliable fit and performance
📐 Specifications
| Feature | Specification |
|---|---|
| Part Number | 584567DT |
| Type | Eye-to-tail slipper spring |
| Length (Eye-to-Tail) | 765 mm |
| Leaf Width | 45 mm |
| Leaf Thickness | 6 mm |
| Capacity (Single) | 675 kg static |
| Capacity (Pair) | 1,350 kg static |
| Bushing | Nylon bush, ½″ ID / 7/8″ OD |
| Finish | Dacromet zinc-alloy coating |
| Ideal Use | Heavier trailers, marine/coastal use |
