PREMIUM AUTO RETRACT JOCKEY WHEEL
P/N: 622455
Description

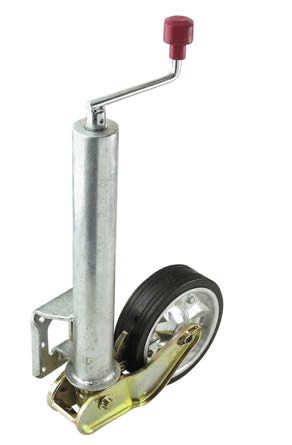

AL-KO Premium 8” Semi Auto Retract Jockey Wheel. Winding the handle automatically
retracts the wheel and fork to a travelling position. Dynamic capacity is limited to 300kg.

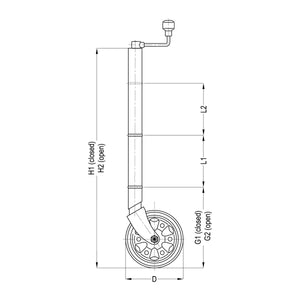

Specifications
Wheel Size: 200mm dia.
Mounting: Bolt / U Bolt
Static Capacity: 500kg
Closed length: 730mm
Open Length: 975mm
Tube O.D.: 60mm
Weight: 9kg
Retracting Wheel
When the handle is actuated the wheel is retracted through the yoke mechanism
eliminating the need to swivel.
