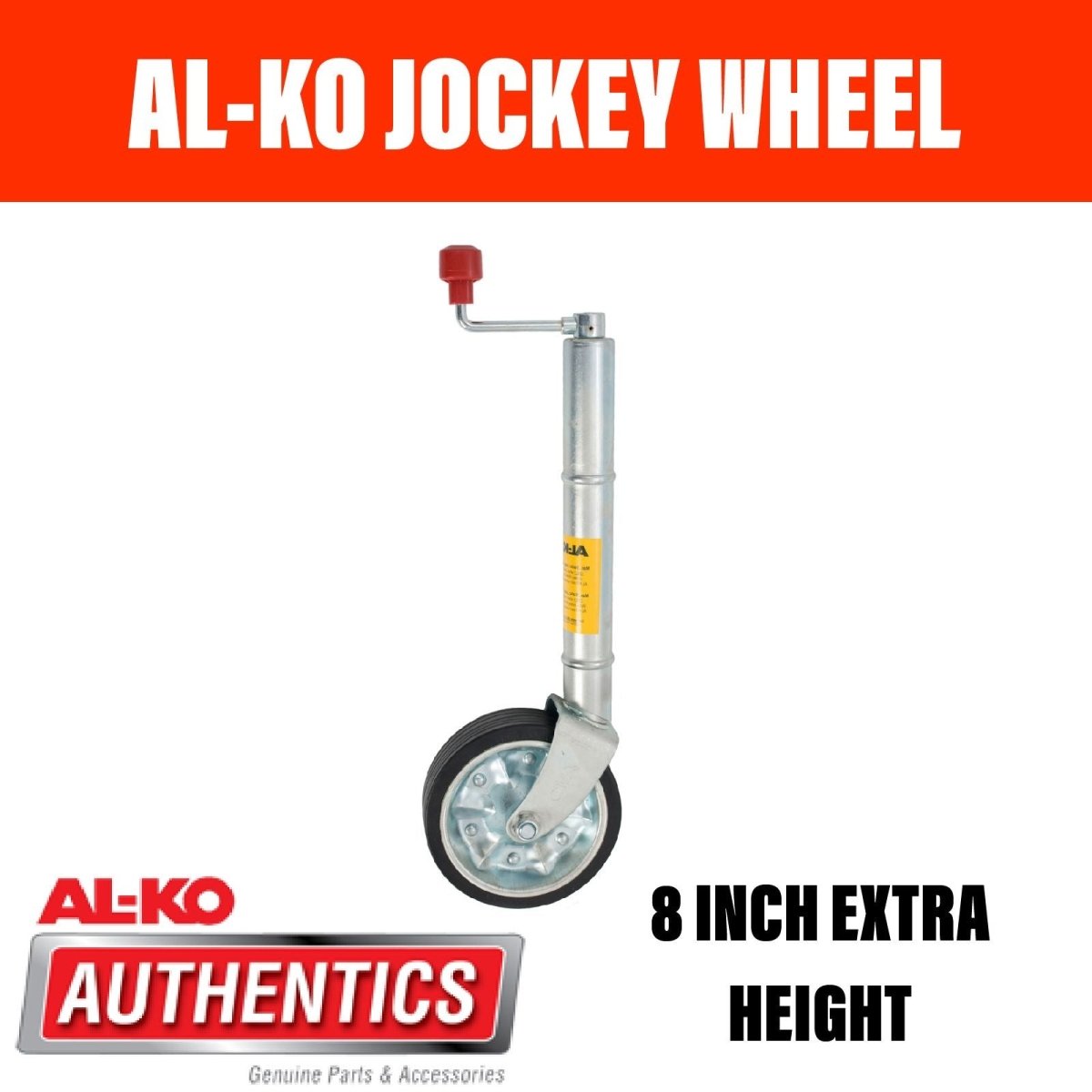

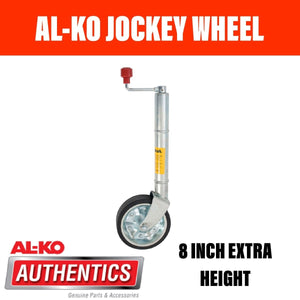

AL‑KO 8″ Premium Clamp‑On Jockey Wheel – Extra‑Height (P/N 628300)

Product Overview

The AL‑KO 8″ Premium Clamp‑On Jockey Wheel 628300 offers extra height and premium quality for caravans, trailers, and campers. Its solid 200 mm rubber tyre, zinc-plated 48 mm shaft, and clamp-on mount provide effortless maneuverability on flat or uneven surfaces.

Key Features & Technical Specs

• Part No.: 628300 (Extra‑height variant with clamp)

• Wheel Diameter: 200 mm solid rubber with crowned profile for excellent grip on varied ground

• Static Load Capacity: 400 kg standard, up to 500 kg with premium clamp upgrade

• Tube Diameter: 48 mm zinc-plated, corrosion resistant

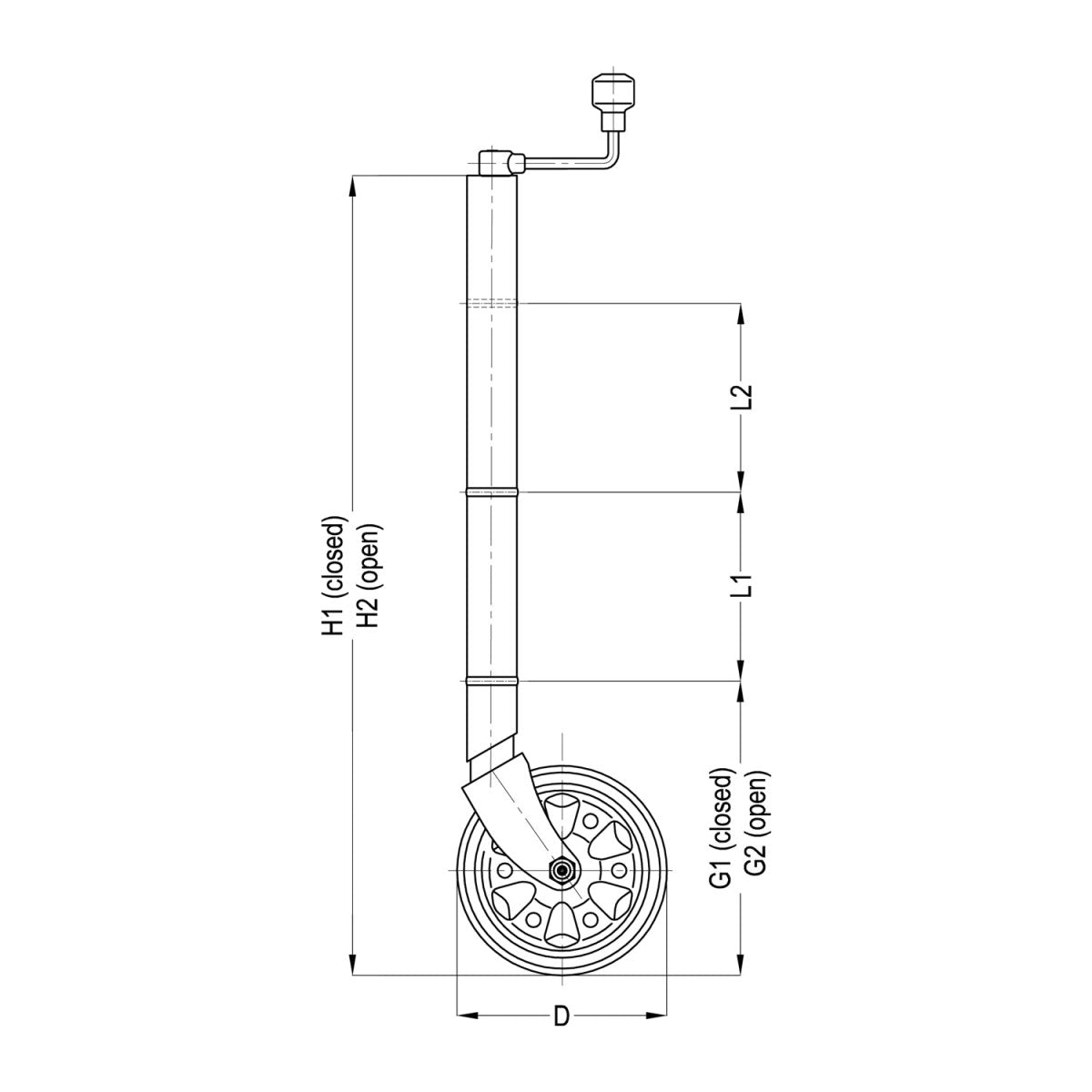

• Height Closed (H1): 730 mm

• Height Open (H2): 995 mm

• Ground to Mount Center (G1/G2): 370 mm / 635 mm

• Hole Spacing (L1): 132–150 mm depending on clamp bracket type

• Weight: Approx. 7 kg

• Mounting Options: Uses clamp-on bracket; compatible with bolt-on or weld-on setups using AL‑KO accessories (e.g., clamp 629900 or swivel clamp 629935)

What’s Included

• 1 × AL‑KO 8″ Premium clamp-on jockey wheel (Extra‑height, P/N 628300)


Benefits & Use Cases

• Extra lift provides better clearance over drawbars or toolboxes

• Solid wheel and crowned profile enhance traction on soft ground without sinking

• Zinc finish and robust tube ensure durability in harsh conditions

• Ideal for trailers and campers needing height and maneuverability on varied terrain

• Can be upgraded to a swing-up or side-wind version using compatible clamps (extras)

Warranty & Shipping

• Backed by a 12-month manufacturer warranty (typical for AL‑KO jockey wheels)

• Fast dispatch from Queensland—most orders ship within one business day

• Australia-wide delivery calculated at checkout
