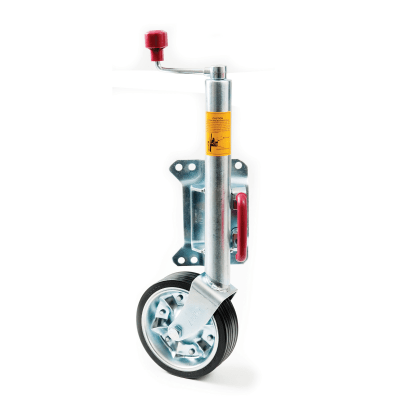

AL‑KO Trailtech 8″ Swing‑Up Jockey Wheel (628200BX) – 400 kg Load, Zinc-Plated

Overview

The AL‑KO Trailtech 8″ Swing‑Up Jockey Wheel is a premium-grade trailer support solution, designed for durability, ease of use, and long-lasting performance. Rated to a static load of 400 kg, it features a solid rubber tyre, zinc-plated finish for corrosion protection, and a reliable swing-up bracket that allows quick stowing without removal.

This jockey wheel is ideal for boat trailers, camper trailers, general-purpose trailers, and trade equipment.

Key Features

• Part Number: 628200BX

• Wheel Size: 8″ (200 mm) solid rubber tyre

• Load Capacity: 400 kg (static)

• Outer Tube Diameter: 48 mm

• Bracket Type: Heavy-duty swing-up swivel bracket with locking pin

• Surface Finish: Zinc-plated steel for rust and corrosion resistance

• Operation: Fast swing-up function—no removal required

• Mounting Options:

  • Bolt-on via multi-hole bracket (fits U‑bolt spacings from 50 mm to 100 mm)

  • Weld-on compatible for permanent fixture

• Warranty: 12-month AL‑KO manufacturer warranty

• Weight: Approx. 8.5 kg

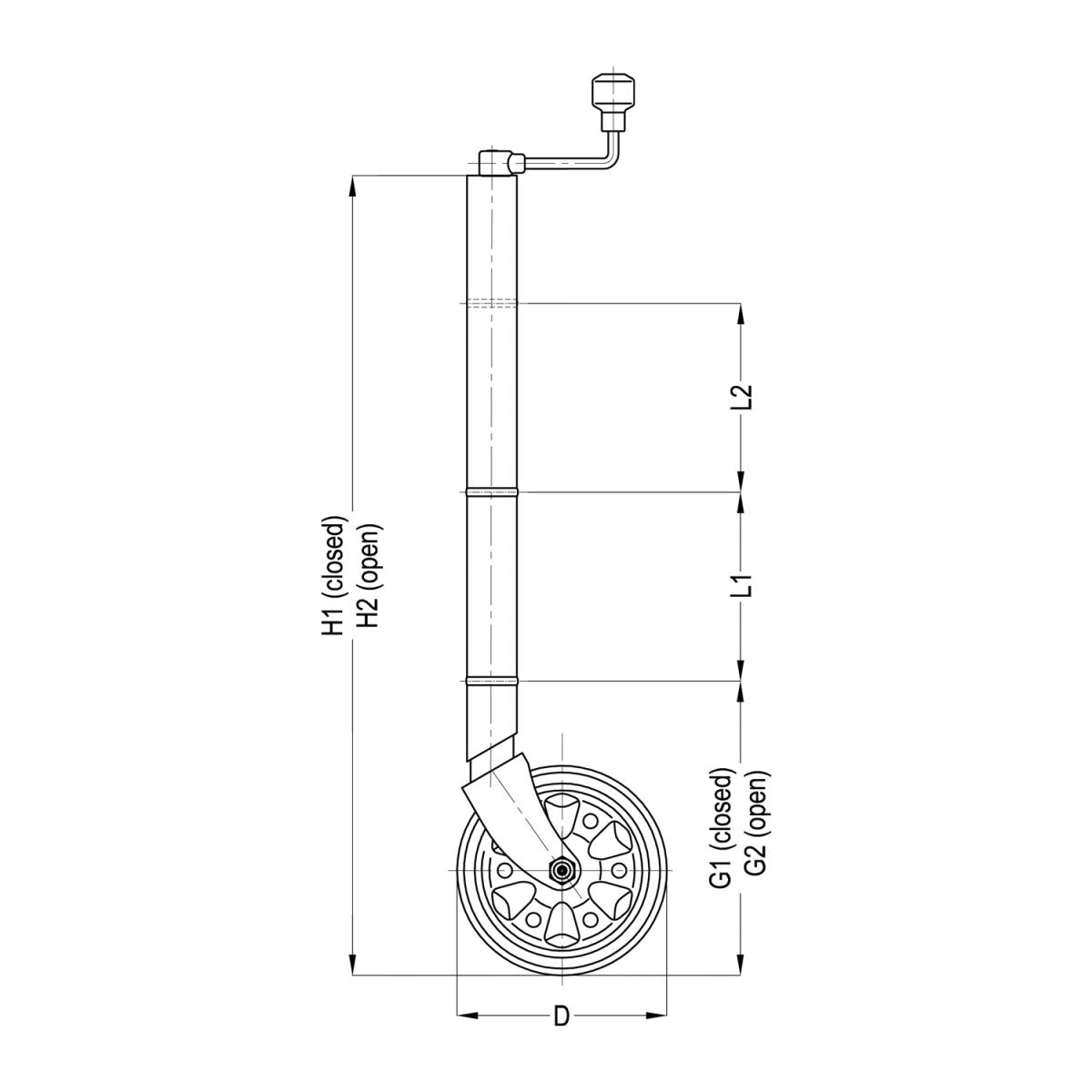

Dimensions

Applications

• Suitable for trailers up to 3000 kg ATM (static use only)

• Ideal for use with:

  • Box trailers

  • Boat trailers

  • Camper trailers

  • Jet ski trailers

  • General utility trailers


Installation Notes

• No tools needed to swing up—simply release the handle and rotate the unit upward into travel position

• For bolt-on fitment, use a U‑bolt kit that matches your drawbar profile

• For welding, ensure bracket is flush with drawbar for structural integrity

Compliance & Build

• Built by AL‑KO, Australia’s trusted trailer parts brand

• Zinc finish provides protection against corrosion in marine or coastal conditions

• Maintenance-free solid tyre design—no punctures or inflation required

• Locking mechanism ensures safe towing and stowage positions
