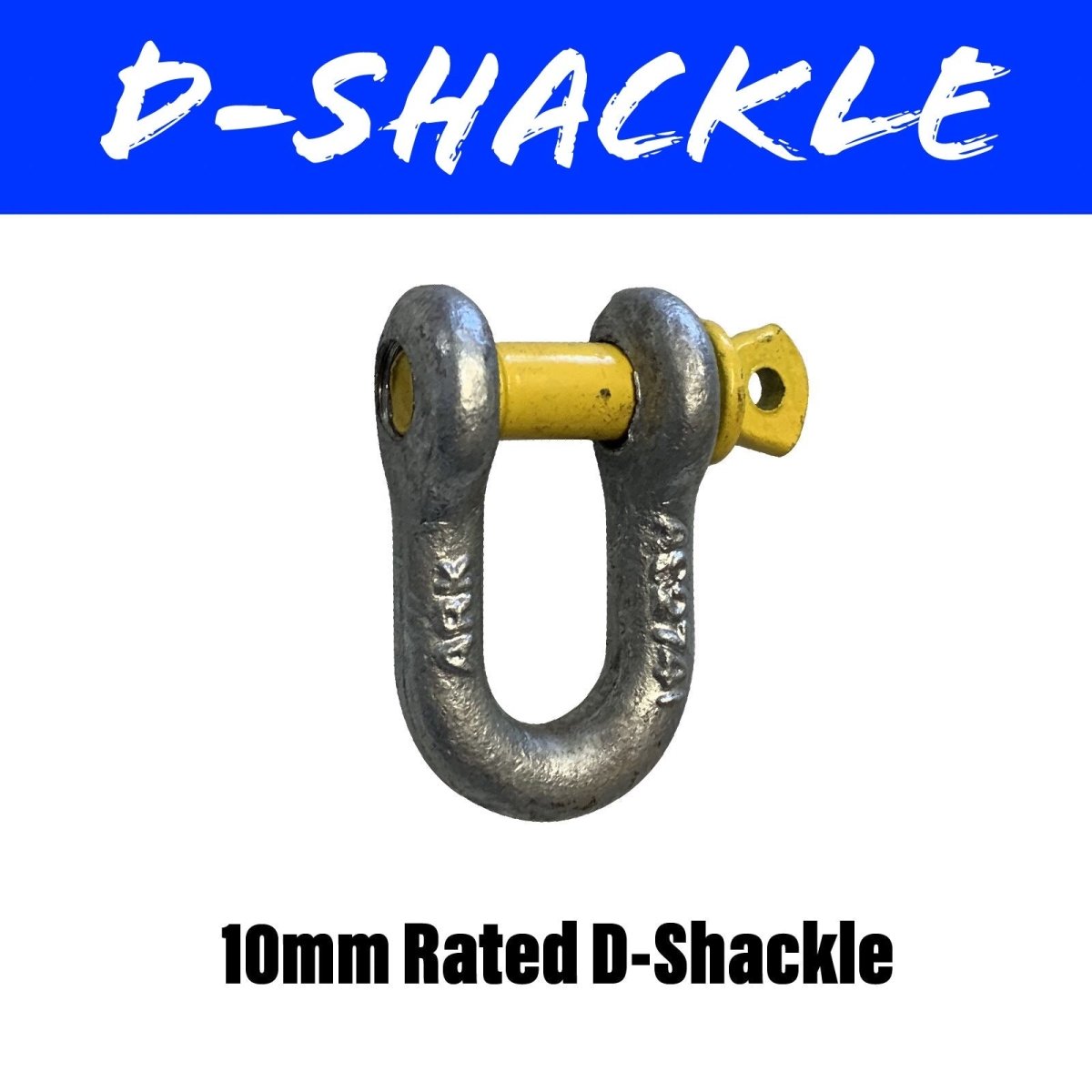

10MM RATED D-SHACKLE
P/N: 10MMDS
PRICE IS FOR 1X SHACKLE
| Trailer ATM (kg) | Chain size classification (AS 4177.4-2004) |
Chain marking (AS 4177.4-2004) |
Suitable rated D shackle size (AS 2741-2002) Grade ‘S’ or ‘6 dee’ or ‘6 bow’ |
Minimum proof load strength (kN) chain / shackle |
|---|---|---|---|---|
| Up to 1,000 | 1,000 | 4177-10 | 6mm S WLL 0.5T | 4.9 / 9.9 |
| Up to 1,600 | 1,600 | 4177-16 | 6mm S WLL 0.5T | 7.9 / 9.9 |
| Up to 2,500 | 2,500 | 4177-25 | 8mm S WLL 0.75T | 12.3 / 14.8 |
| Up to 3,500 | 3,500 | 4177-35 | 10mm S WLL 1.0T | / 19.7 |
Alternatively, use a shackle that is compatible with the safety chain and a reputable brand. The shackle will have markings to show the brand or enough identification to trace its brand and strength.
Here are more tips for using a shackle:
- Usually the diameter of a shackle pin is larger than the shackle body.
- The strength of a shackle varies according to its grade. An ‘S’ grade shackle is stronger than an ‘M’ grade shackle of the same size.
- Stainless steel shackles are generally unsuitable for trailers, as they have low resistance to bending stresses.
- A bow shackle provides flexibility for more angular movement than a ‘D’ shackle.
