Overview

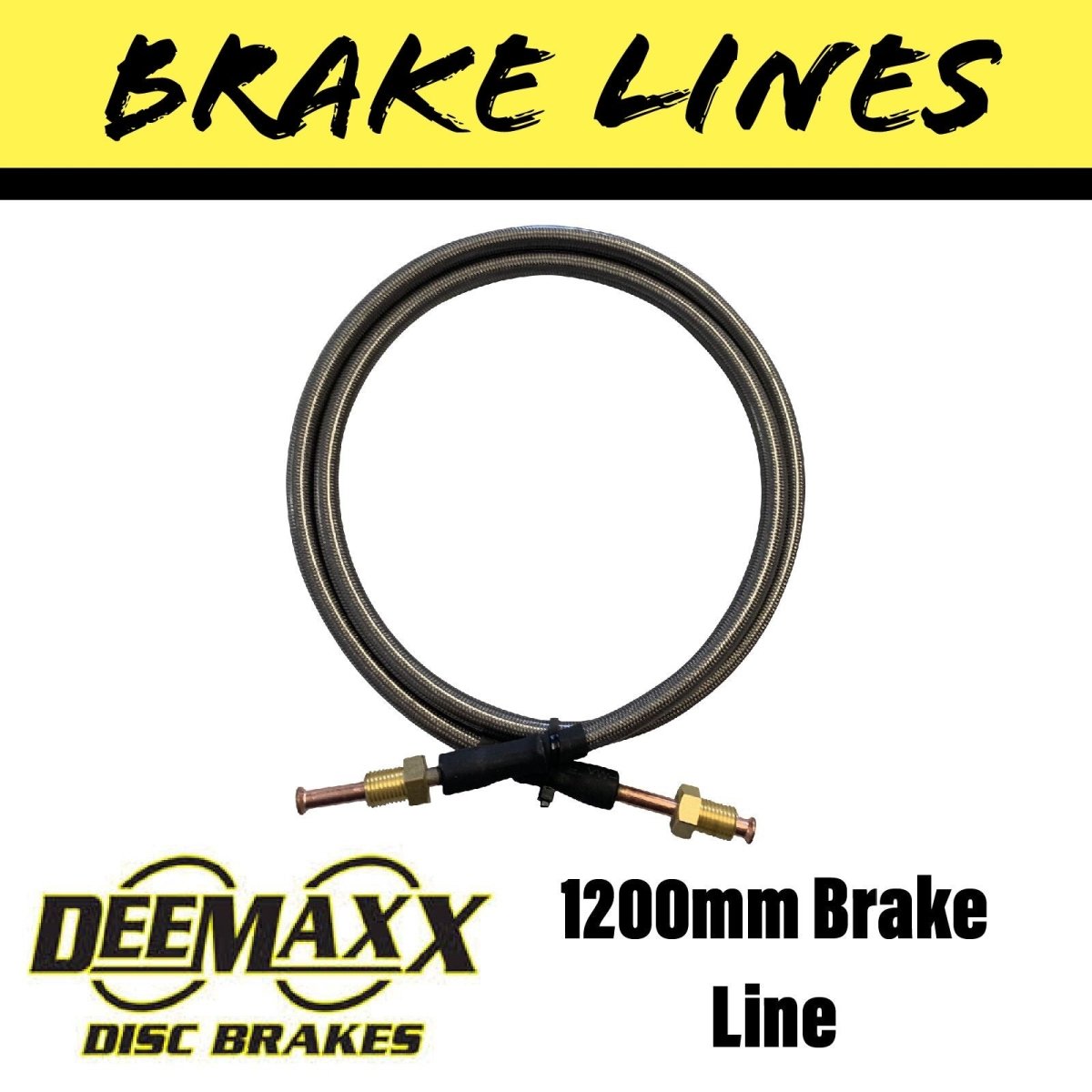

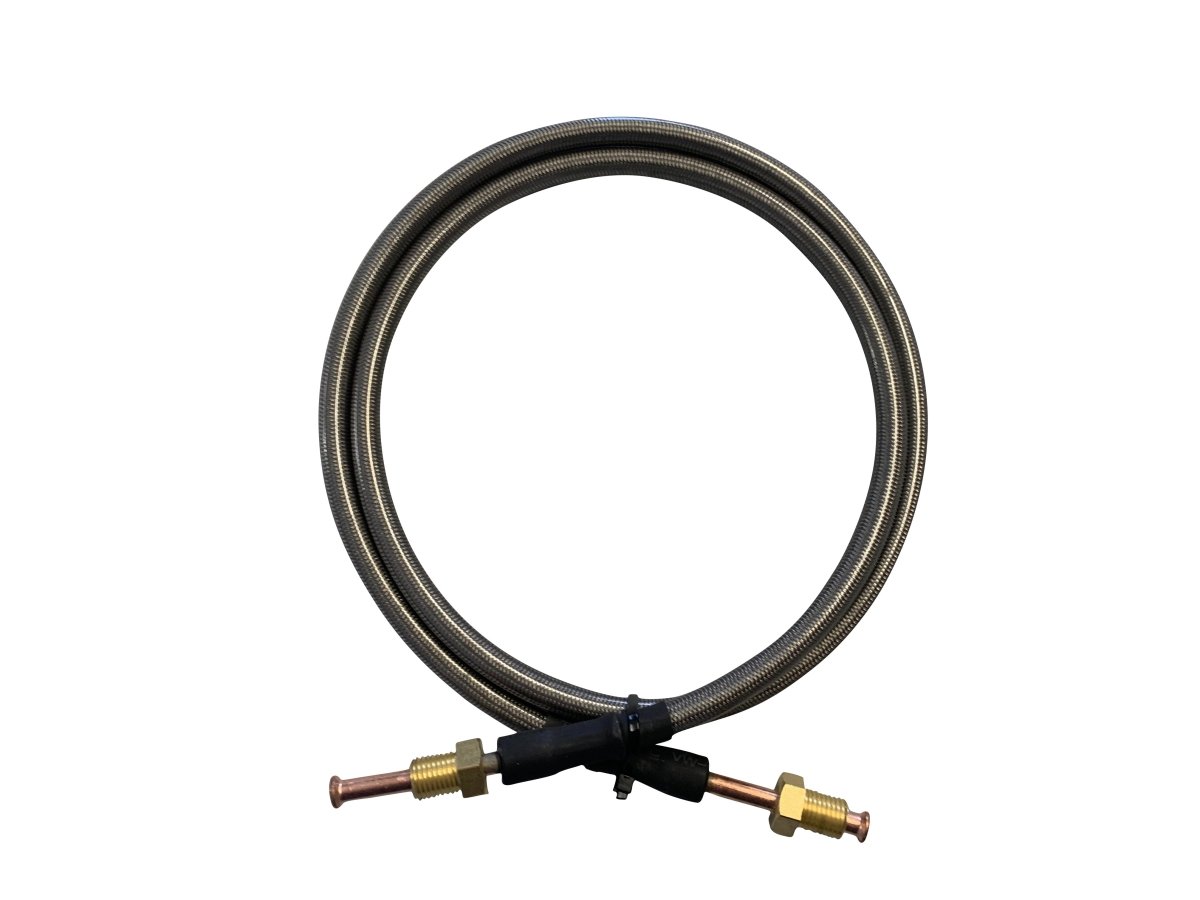

This 1,200 mm stainless steel braided brake hose (Part EBS.BL.1200) features a high-performance PTFE (Teflon) inner core with stainless steel braid for maximum durability, minimal expansion, and superior pedal response. Designed for trailer brake systems up to 1.2 m routing, it includes pre-flared 3/8″ UNF inverted flare fittings—no onsite flaring required.
Fully compliant with SAE J1401 and U.S. DOT standards, this hose is ideal for trailers, caravans, and boat trailers in coastal or heavy‑vibration settings.
What’s Included
-
1 × 1,200 mm brake hose with PTFE liner and stainless braid
-
Pre-flared 3/8″ UNF inverted flare brass fittings
Key Features
✅ SAE J1401 / DOT compliant — engineered to meet high standards in brake line safety
✅ Minimal hydraulic expansion — PTFE core transfers hydraulic force more directly for better braking feel
✅ Plug-and-play installation — pre-assembled fittings remove the need for flaring tools
✅ Marine-grade corrosion resistance — perfect for coastal or harsh environments
✅ Flexible and kink-resistant — longer routing without binding or damage
✅ Next-day dispatch from QLD with visible stock and supported by a 12-month manufacturer warranty
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | EBS.BL.1200 |
| Length | 1,200 mm |
| Fittings | 3/8″ UNF inverted flare |
| Inner Core | PTFE (Teflon) |
| Outer Braid | Stainless steel |
| Standards | SAE J1401 / USA DOT compliant |
| Installation | No flaring required |
| Warranty | 12‑month manufacturer cover |
Applications
-
Hydraulic brake systems on trailers, campers, boats, and caravans requiring longer routing
-
Upgrading older copper or rubber lines for better corrosion resistance and performance
-
Where flexible hose routing up to 1.2 m is needed
-
Ideal for coastal, high-moisture, or rugged environments
Why Choose the 1,200 mm Hose?
Stainless braided hoses with PTFE cores offer significantly better longevity and brake performance than rubber counterparts—they resist expansion, provide a crisper feel, and withstand corrosion. This 1.2 m length gives flexibility for complex routing while maintaining DOT/Sae certification for Australian safety compliance.
🔧 Installation Tips
-
Secure with stainless steel P‑clips to chassis avoiding chafe
-
Keep bends gentle—avoid sharp curves or compression points
-
Hand-tighten first before torquing to spec, ensuring no hose twist
-
Bleed entire system thoroughly after installation to eliminate air pockets
