Overview

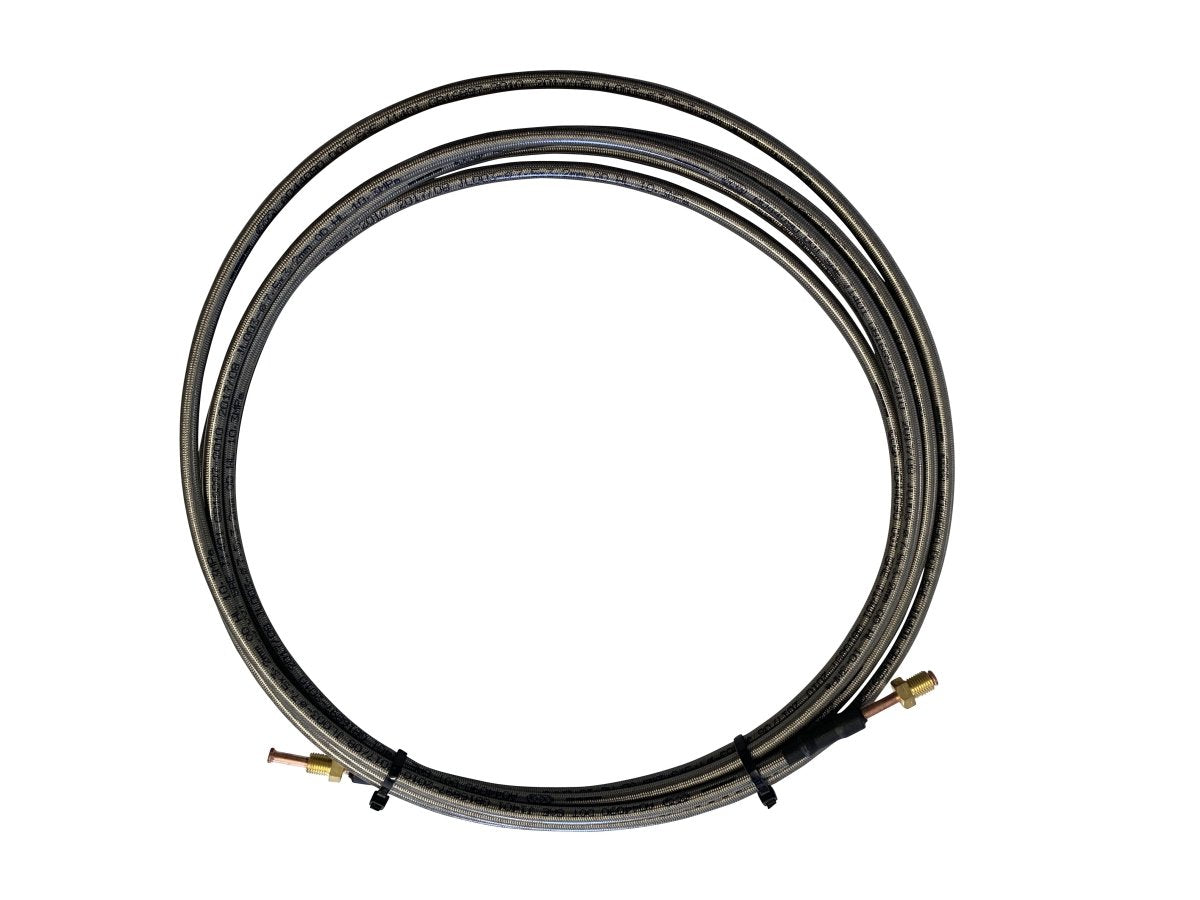

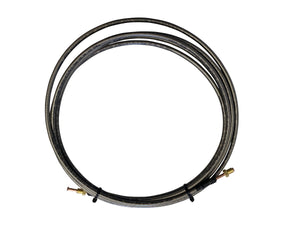

The 4,500 mm stainless steel braided brake hose (Part EBS.BL.4500) features a high-performance PTFE (Teflon) inner liner with a protective stainless steel braid. Designed for long brake runs, this hose resists expansion and corrosion, delivering reliable stopping power. Equipped with pre-flared 3/8″ UNF inverted flair brass fittings, installation is quick and tool-free.
This hose meets both SAE J1401 and U.S. DOT standards, making it ideal for heavy-duty trailer applications, including long A-frame runs, tandem-axle trailers, RVs, and boat trailers. ([turn0search2], [turn0search1])
What’s Included
-
1 × 4,500 mm brake hose, PTFE core with stainless braid
-
Pre-flared 3/8″ UNF inverted flare fittings included
Key Features
-
DOT & SAE J1401 certified for use in compliant trailer brake systems
-
Minimal hose expansion for a firm, responsive brake pedal feel
-
No onsite flaring required—ready to install out of the package
-
Corrosion-resistant stainless braid — ideal for coastal/marine use
-
Flexible routing with high kink resistance
-
Backed by a 12-month manufacturer warranty; ships fast from Brisbane
Technical Specifications
| Feature | Specification |
|---|---|
| Part Number | EBS.BL.4500 |
| Length | 4,500 mm |
| Fittings | 3/8″ UNF inverted flare (brass) |
| Inner Core | PTFE (Teflon) |
| Braiding | Stainless steel |
| Compliance | SAE J1401, U.S. DOT standards |
| Installation | Pre-flared — no onsite flaring required |
| Warranty | 12-month manufacturer coverage |
Applications
-
Extended brake line routing in tandem or quad-axle trailers
-
Ideal for caravan, livestock, or heavy-duty boat trailer builds
-
Suitable for A-frame routing or long chassis configurations
-
Replaces copper or rubber brake lines for superior performance and flexibility
Why Choose This Hose?
Compared to rubber brake hoses, this braided stainless steel option offers significantly less expansion, better pressure-handling, and longer service life. Its extended length accommodates complex trailer builds without compromising performance, and its DOT/SAE certification ensures compliance.
🔧 Installation Tips
-
Secure the hose to the chassis using stainless P‑clips or mounts.
-
Route with smooth bends—avoid tight kinks, especially near suspension points.
-
Hand-tighten fittings first, then torque to specification—avoid twisting the hose.
-
Bleed hydraulic lines thoroughly post-install to remove air.
