Overview
The BLK.6500T kit provides a full brake hose solution for tandem-axle trailers up to ~8 m—tailored for caravans, boat trailers, or large campers. It includes braided stainless steel hoses with PTFE inner cores, all pre-flared with 3/8″ UNF fittings for tool-free installation. Three brass 3‑way joiners allow for branch routing to wheel-end hoses.
Certified to SAE J1401 and U.S. DOT standards, this kit ensures compliant and corrosion-resistant brake plumbing.

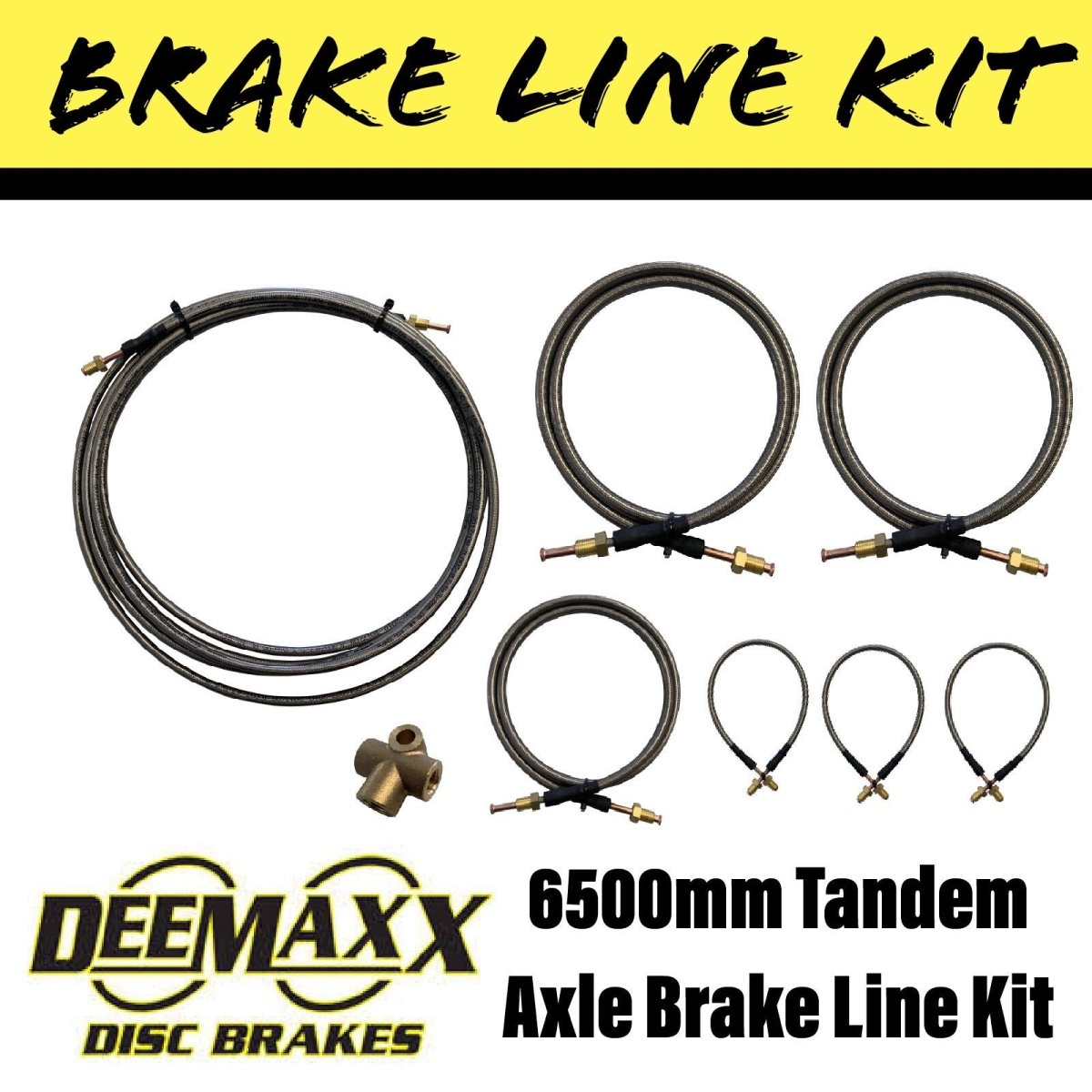

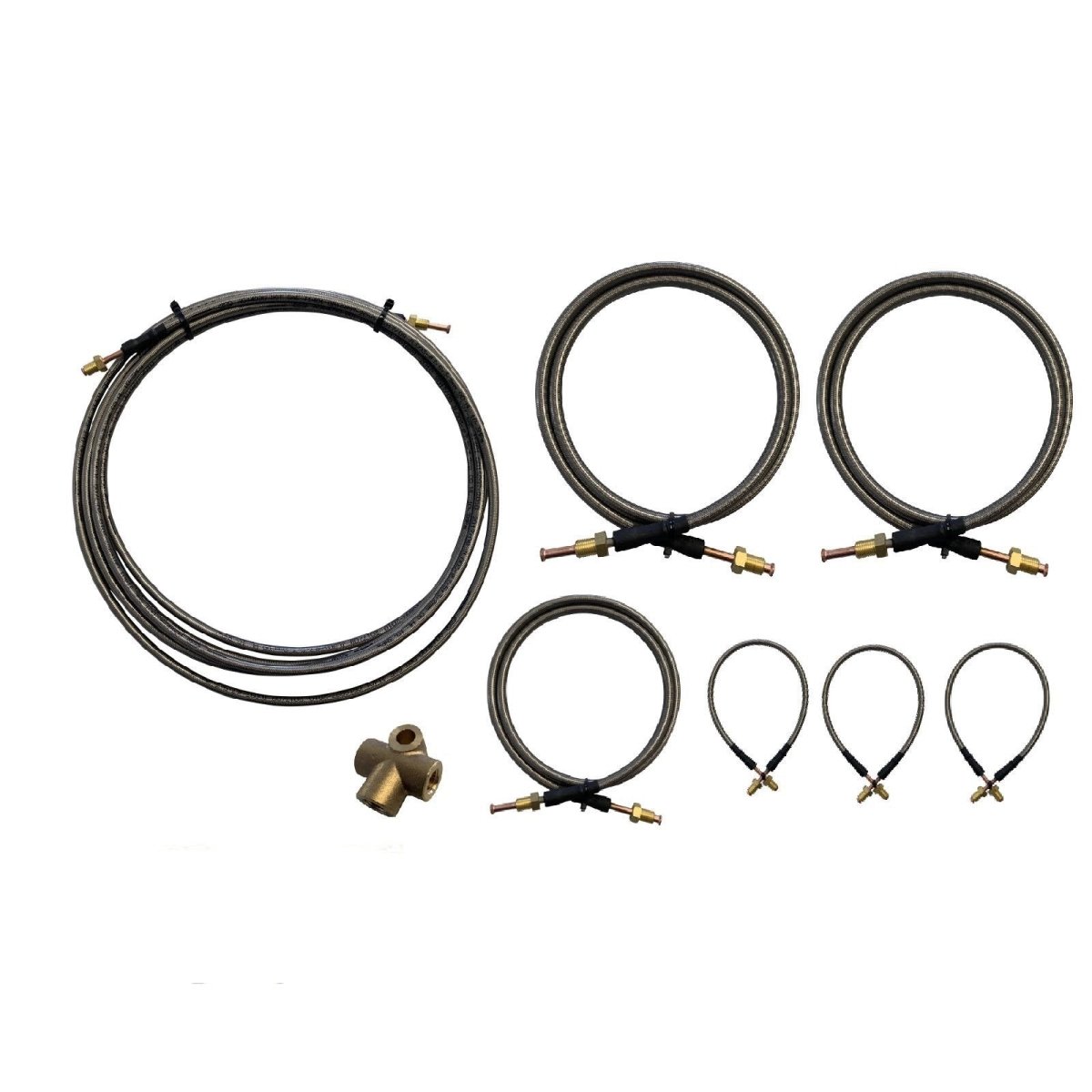

✅ What’s Included
-
1 × 6,500 mm main hose (straight fittings)
-
2 × 2,000 mm hose (straight fittings)
-
1 × 1,000 mm hose (straight fittings)
-
3 × 500 mm hose (straight fittings)
-
3 × brass 3‑way joiners (for 3/16″ inverted-flare tubing)
Note: Some brake calipers (e.g. AL‑KO) may require separate brass brake line unions—not included.
🔧 Key Features
-
Pre-flared hoses—no brake flare tools required
-
PTFE-lined inner core + stainless braid—minimal expansion, firmer braking feel
-
Highly corrosion-resistant—built for marine or humid conditions
-
Full compliance with SAE J1401 and U.S. DOT standards
-
Ideal for flexible routing—no rigid tubing required
-
12‑month manufacturer warranty and next-business-day dispatch from Brisbane
⚙️ Technical Specifications
| Feature | Specification |
|---|---|
| Model | BLK.6500T |
| Included Hoses | 6,500 mm; 2 × 2,000 mm; 1,000 mm; 3 × 500 mm |
| Precision Joiners | 3 × brass 3‑way male joiners (3/16″ tube) |
| Fittings | Pre-flared 3/8″ UNF inverted-flare brass |
| Compliance | SAE J1401 / U.S. DOT certified |
| Warranty | 12 months |
🚚 Applications
Ideal for:
-
Tandem‑axle trailers, caravans, RVs, or campers with hydraulics needing up to 6,500 mm routing
-
Eliminates the need for copper or rigid brake tubing
-
Suited to coastal, marine, or high-moisture environments with corrosion concerns
🔍 Why Choose This Kit?
Compared to traditional tubing or rubber hoses, these PTFE-lined stainless braided hoses deliver greater durability, reduced hydraulic expansion, and superior brake responsiveness. The kit's structured hose lengths and integrated joiners simplify installation, reduce parts counts, and maintain full DOT/SAE certification.
🛠 Installation Tips
-
Secure hose routing with stainless P‑clips to avoid chafing
-
Keep hose bends gentle—avoid tight angles around pivot points
-
Hand-tighten fittings before final torque to prevent twisting
-
Fully bleed hydraulic system post-install to ensure consistent brake response
