Overview

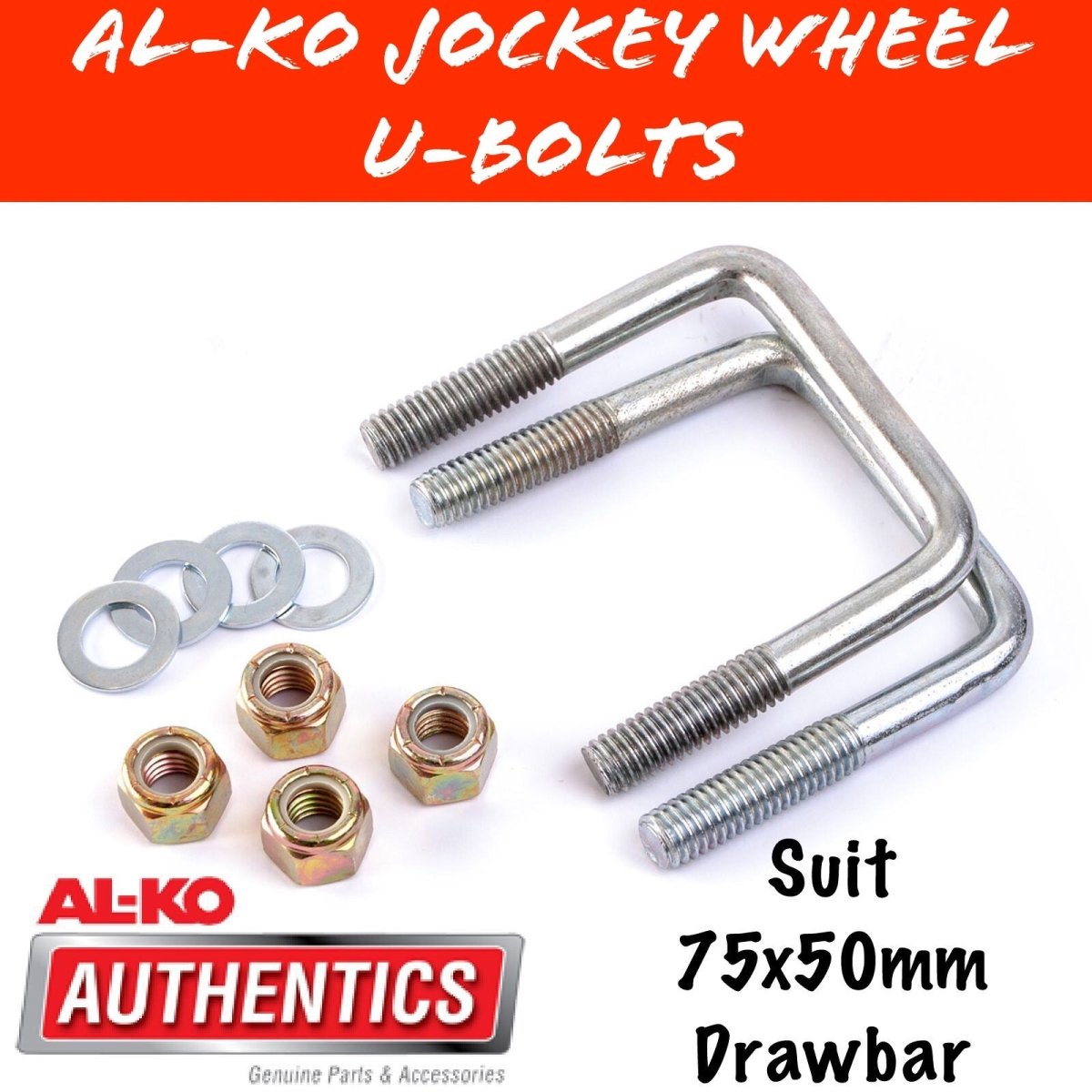

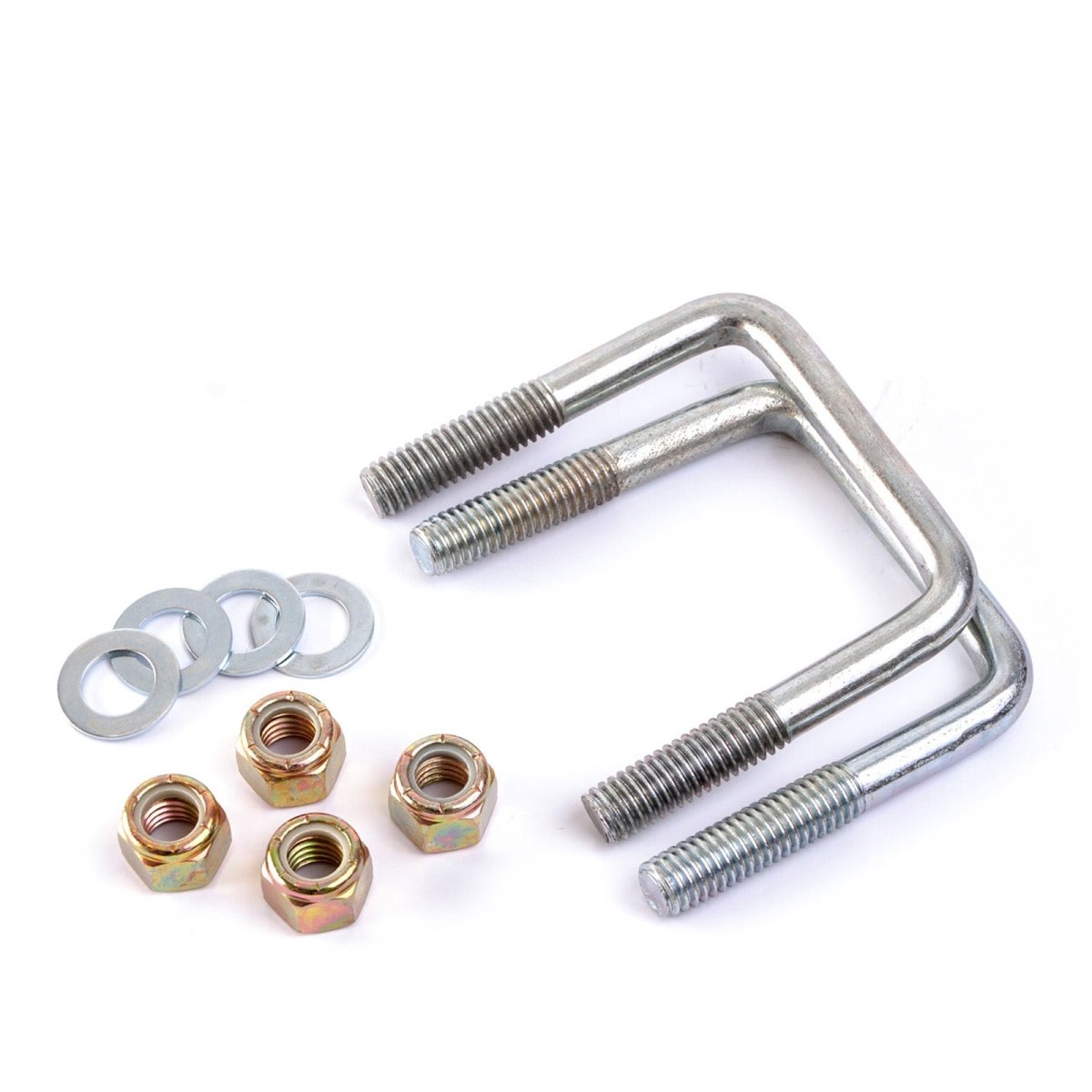

This AL‑KO U‑Bolt Kit (P/N 626262) is tailored for mounting jockey wheels to drawbars measuring 75 × 50 mm (3″ × 2″). The kit includes two zinc‑plated U‑bolts, four nuts, and washers—designed for long-lasting and secure fix‑up.
Perfect for caravans, trailers, boat trailers, and horse floats, this kit meets OEM standards for stability and ease of installation.
✅ Key Features
-
Designed specifically for 75 × 50 mm drawbars (3″ × 2″)
-
Includes: 2 U‑bolts, 4 nyloc nuts, and 4 washers for secure mounting
-
Zinc-plated finish to prevent rust and corrosion Standard 85 mm length with ~½″ BSW threading to suit OEM jockey wheel clamps
📐 Specifications
| Specification | Details |
|---|---|
| Part Number | 626262 |
| Fit | 75×50 mm drawbar (3"×2") |
| Includes | 2 U-bolts, 4 washers, 4 nyloc nuts |
| U-Bolt Length | ~85 mm |
| Thread | ½″ BSW standard |
| Finish | Zinc-plated steel |
Specifications:
- Drawbar Size: 75mm x 50mm
- Length: 85mm
- Thread Pitch: 1/2 inch BSW
- Finish: Zinc Plated
