Overview

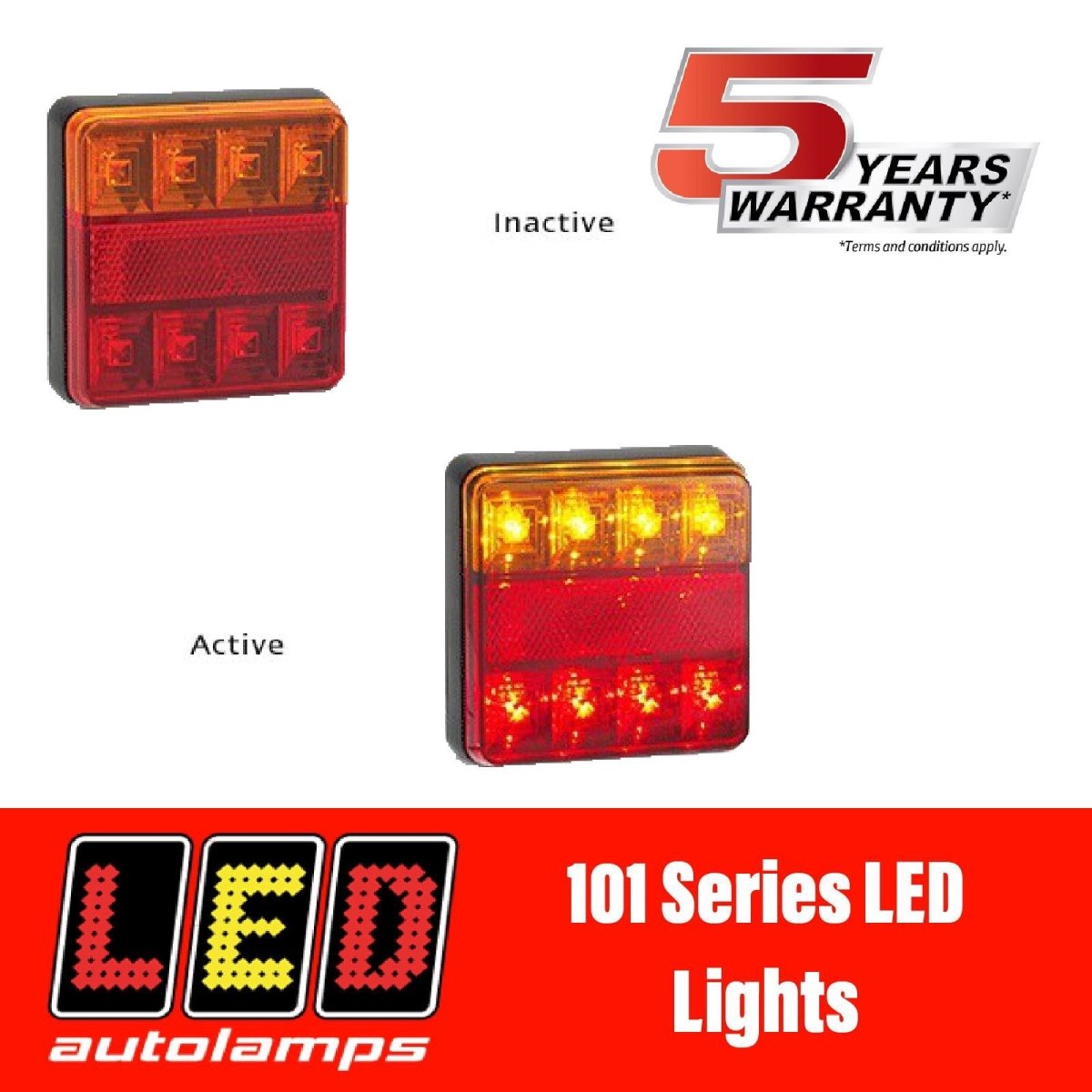

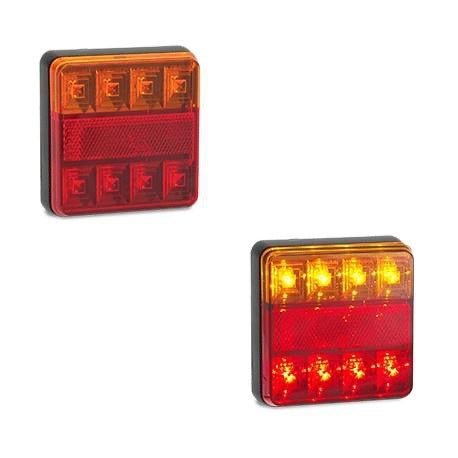

The LED Autolamps 101BAR2 delivers a compact, budget-friendly trailer lighting solution. Featuring Stop/Tail/Indicator and a built-in reflector, this twin-pack lamp is ADR/ECE certified and rated IP67 for full submersion protection—ideal for boat, caravan, ute, and utility trailers.
Key Features
-
Authentic LED Autolamps 101 Series (Part No. 101BAR2), delivered in a twin blister pack
-
Fully ADR/ECE-approved for Australian road compliance
-
IP67 waterproof and dust-sealed design
-
Compact 100 × 100 × 22 mm form factor, low-profile mount
-
Stop/Tail/Indicator + integrated reflector for simplified installation
-
Pre-wired with 40 cm cable, install vertically with indicator on top per ADR guidance
-
Efficient LED current draw: Stop 0.13 A, Tail 0.04 A, Indicator 0.12 A at 13.8 V
Technical Specifications
| Specification | Details |
|---|---|
| Voltage | 12 V DC |
| Dimensions | 100 × 100 × 22 mm |
| LED Count | 8 LEDs per lamp |
| Cable Length | 40 cm pre-wired cable |
| Current Draw | Stop 0.13 A / Tail 0.04 A / Indicator 0.12 A |
| Mounting | Surface – mount indicator at top |
| IP Rating | IP67 (fully sealed) |
| Compliance | ADR 49/00, 6/00 / ECE, CTA Certified |
| Warranty | 5 years |
Who It's For
-
Australian trailer owners needing reliable ADR-compliant rear lighting
-
Environments exposed to water, vibration, or marine salt air
-
Customers looking for a cost-effective, durable trailer lamp with long warranty
