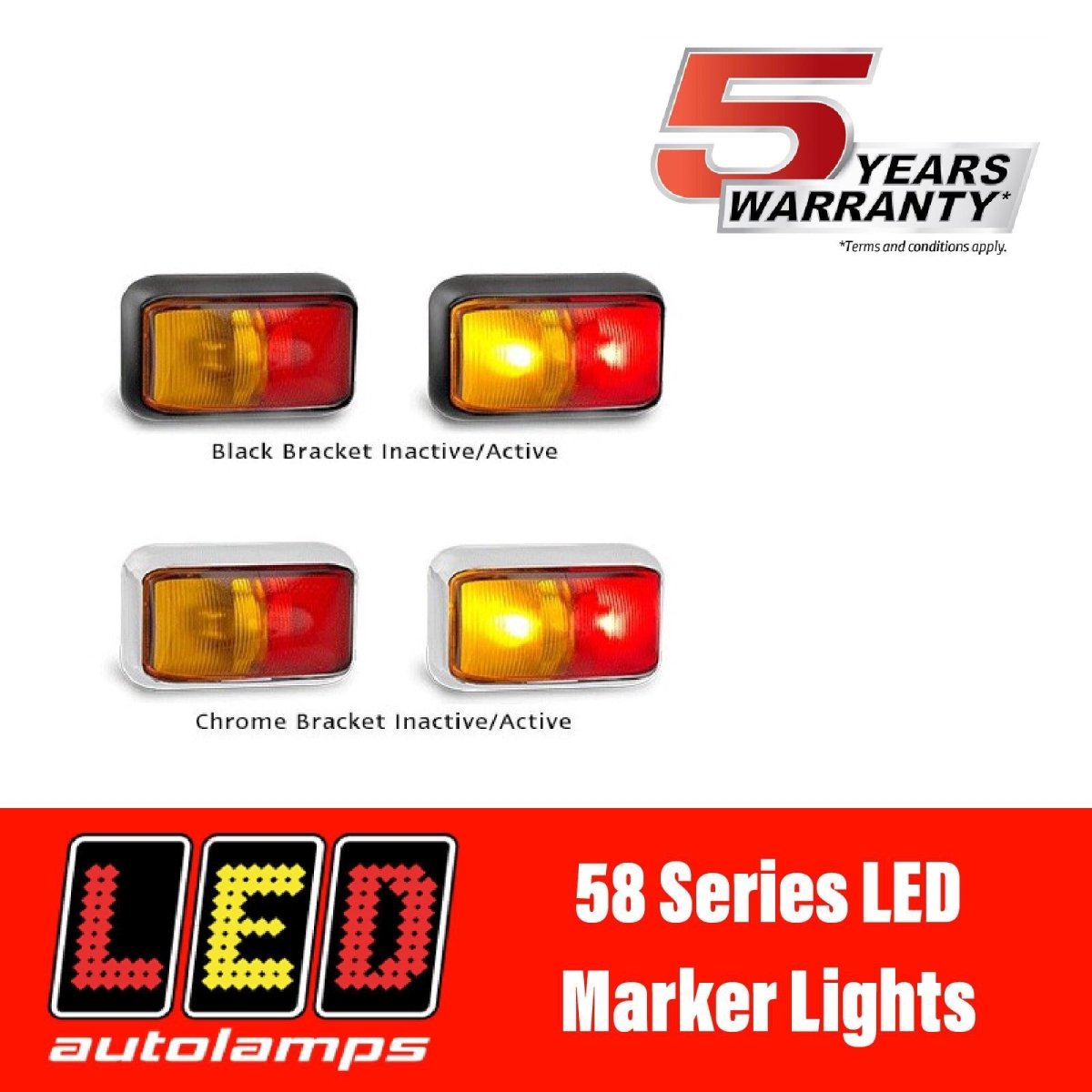

LED Autolamps 58ARM Amber/Red LED Clearance Light – Hardwired 12–24 V (P/N 58ARM)

Overview

The LED Autolamps 58ARM is a compact, hardwired amber/red LED clearance light, ideal for marking the front and rear sides of trailers, caravans, and utility vehicles. This non–plug-in version offers permanent wiring and reliable performance, backed by a 5-year warranty.

Key Features

• Part Number: 58ARM – hardwired (not plug-in), with pre-wired cable for permanent installation

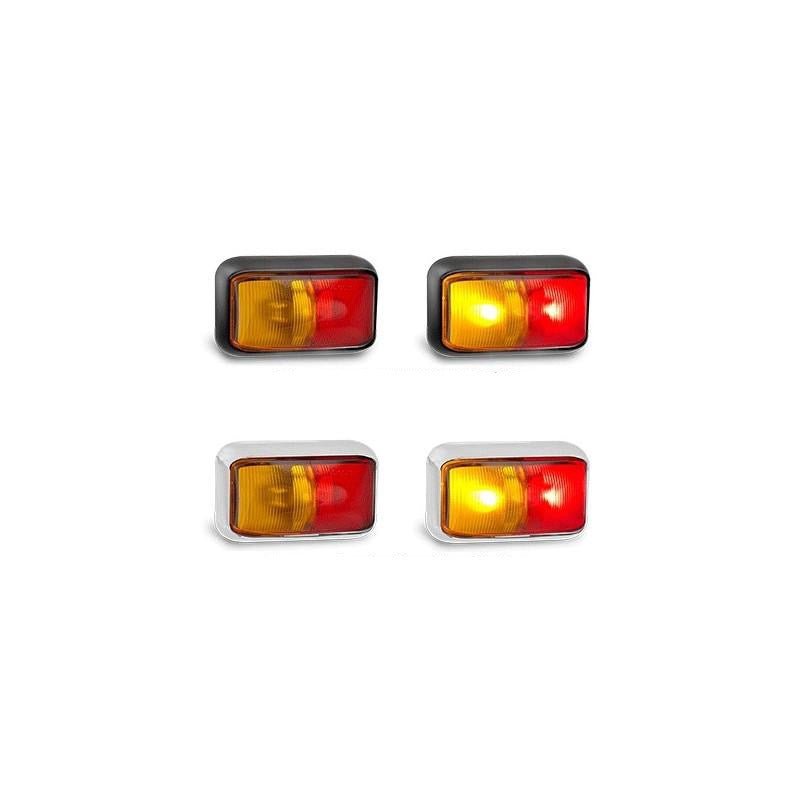

• Dual-colour lens – amber (front) and red (rear) for side clearance compliance

• Multi-Voltage Compatible – suits 12 V and 24 V systems

• Low Current Draw – 0.10 A @ 13.8 V, 0.04 A @ 28 V

• ADR/ECE Approved – Complies with ADR 13/00 and ECE Regulation 91 (CRN 36841)

• Sealed & Durable – IP67 waterproof rating, ABS base and polycarbonate lens

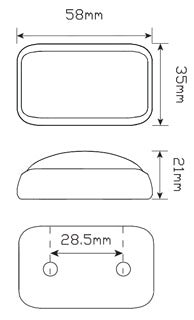

• Compact Dimensions – 58 mm (L) × 35 mm (H) × 21 mm (D)

• Surface Mount with Clip-on Lens – includes 40 cm hardwired cable and mounting bracket

Applications

• Perfect for use on trailers, caravans, boats, trucks, and agricultural machinery where legal side marking is required

• Amber facing forward, red facing rearward when mounted on the trailer side

Warranty & Reliability

• Backed by LED Autolamps' 5-year warranty

• Designed for Australian conditions and rugged trailer use
