Overview

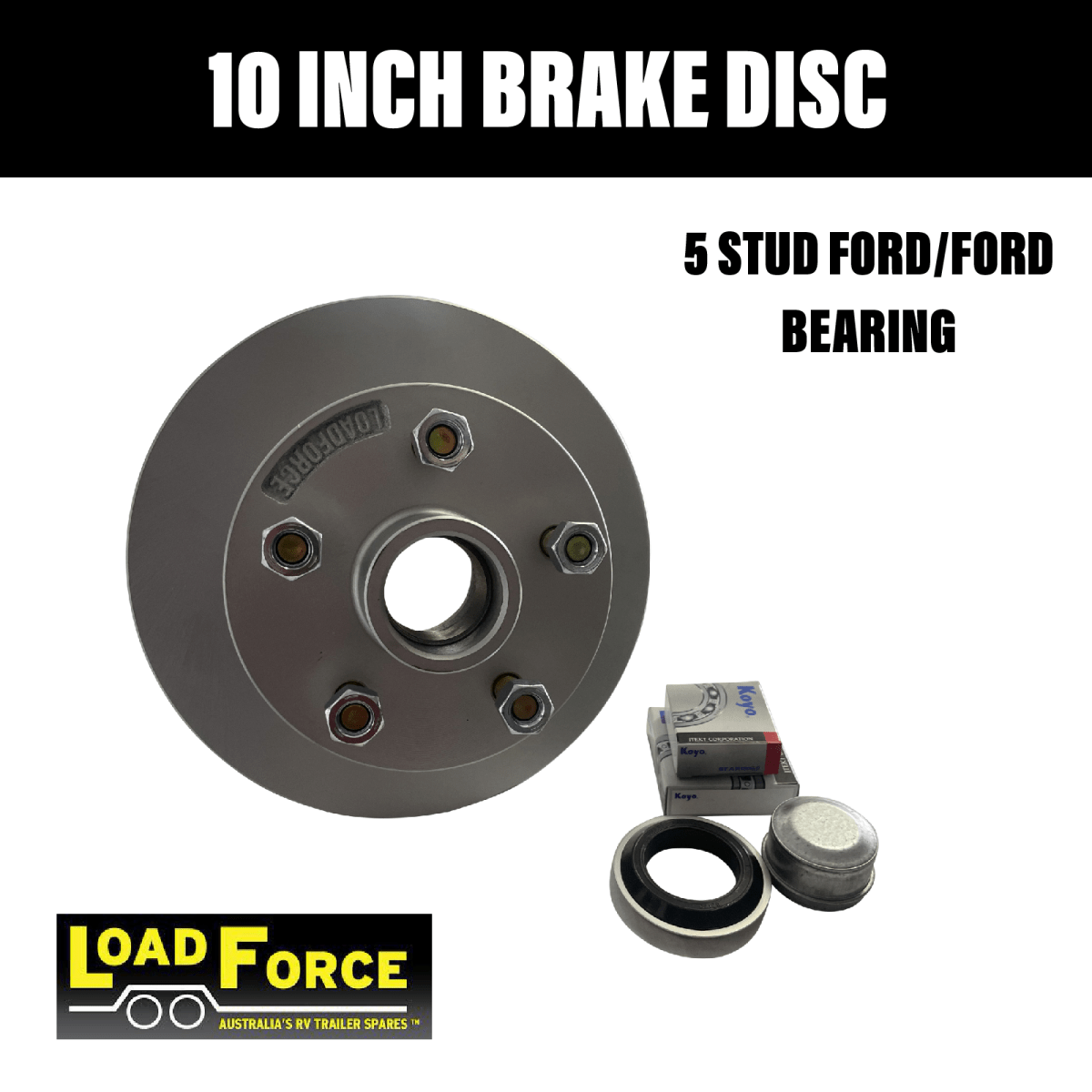

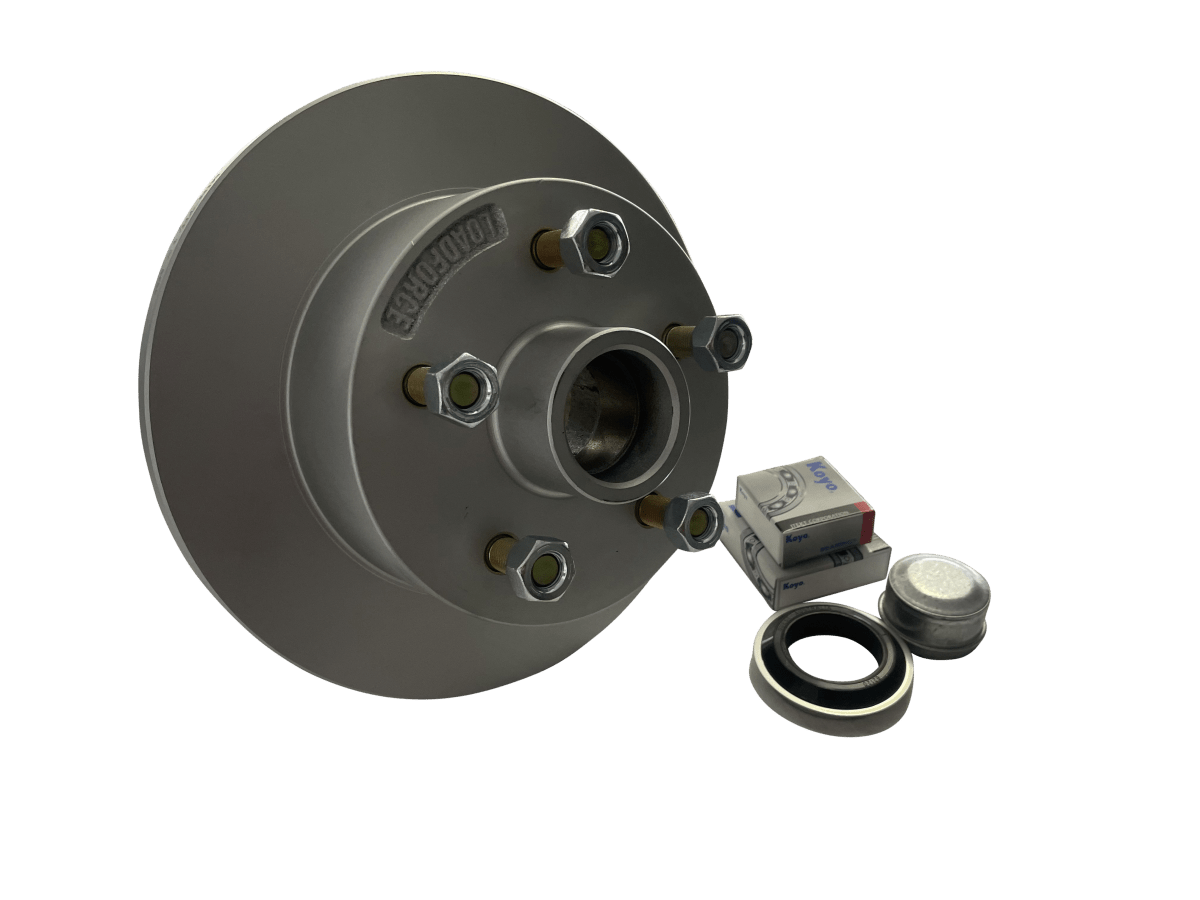

The LoadForce 10″ Dacromet-coated disc hub (P/N: DH58FDG‑10) is engineered for durability and precision. Featuring Ford 5 × 114.3 mm bolt pattern and fitted with premium Japanese SL bearings (inner 68149/10, outer 12749/10) plus an Australian-made marine seal and dust cap — this kit is designed for reliability in harsh marine trailer conditions.
✔️ Highlights & Key Features
-
10″ diameter × 5/8″ thickness Dacromet-coated disc hub for corrosion protection
-
Ford 5‑stud, 5 × 114.3 mm PCD, compatible with matching trailer hubs and calipers
-
Includes Japanese-made SL bearings (inner LM68149/10 & outer LM12749/10), wheel nuts, dust cap, and marine seal
-
Stud spacing: center-to-center 67 mm, stud diameter: ½″ UNF
📊 Specifications
| Spec | Detail |
|---|---|
| Part Number | DH58FDG‑10 |
| Disc Diameter / Thickness | 10″ (254 mm) × 5/8″ thickness |
| Bolt Pattern | Ford 5‑stud (5 × 114.3 mm PCD) |
| Stud Diameter | ½″ UNF |
| Stud Spacing | 67 mm centre-to-centre |
| Bearing Sets | Japanese SL bearings: L68149/10 & L12749/10 |
| Included Components | Bearings, wheel nuts, marine seal, dust cap |
| Coating | Dacromet marine-grade plating |
🚚 Compatibility & Applications
This top-quality disc hub is built for trailers using Ford-style stud pattern hubs. With marine-grade bearings, seal, and coating, it’s ideal for coastal boats, caravans, or utility trailers. Simple bolt-on installation with matching brake rotor and caliper assemblies.
🚛 Warranty & Shipping
-
Covered by a 12‑month manufacturer warranty
-
