Overview

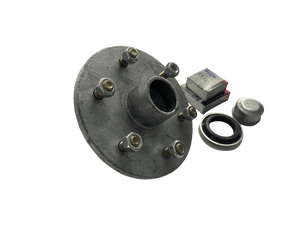

This LoadForce 7-inch unbraked (lazy) hub kit (P/N: LF190G) features the Ford‑standard 5×114.3 mm stud pattern, fitted with high-quality Japanese slim-line Ford bearings (inner LM68149/10 & outer LM12749/10). The hub is galvanized and includes an Australian-made marine seal and dust cap—ideal for coastal trailers, caravans, and boat rigs.
✅ Key Features
-
Suitable for lazy axle applications, supporting up to ~1.5 ton load ratings.
-
Ford 5‑stud (5×114.3 mm PCD) with ½″ UNF studs spaced ~67 mm apart.
-
Includes premium Japanese SL bearings: inner LM68149/10 & outer LM12749/10, for smooth operation and reliability.
-
Galvanized hub finish and marine-grade rubber seal ensure excellent corrosion resistance in wet environments.
-
Fully packaged kit: hub, bearings, studs & nuts, marine seal, dust cap—ready to install.
📊 Specifications
| Specification | Detail |
|---|---|
| Part Number | LF190G |
| Hub Diameter | ~7″ (150 mm) |
| Stud Pattern / PCD | Ford 5‑stud, 114.3 mm |
| Stud Size / Spacing | ½″ UNF studs, ~67 mm centre-to-centre |
| Bearings Included | LM68149/10 (inner) & LM12749/10 (outer) |
| Mounting Kit | Includes studs, nuts, marine seal & dust cap |
| Coating | Galvanized for coastal resistance |
| Warranty | 12‑month manufacturer warranty |
⚙️ Compatibility & Use
Designed for trailers using Ford-style 5-stud hubs with lazy axle setups. Compatible with LoadForce, Kodiak, UFP, and similar systems where Ford-standard bearings are preferred. The corrosion-resistant finish and marine seal make this hub ideal for boat trailers or coastal conditions.
🚚 Warranty & Shipping
-
Includes 12‑month manufacturer warranty under Australian Consumer Law
-
Fast Australia-wide dispatch, typically next business day from QLD
-
Shipping costs auto-calculated at checkout based on delivery address
Shipping is calculated at checkout based on your location.
