Overview

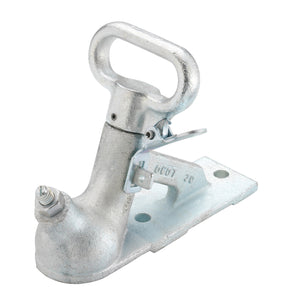

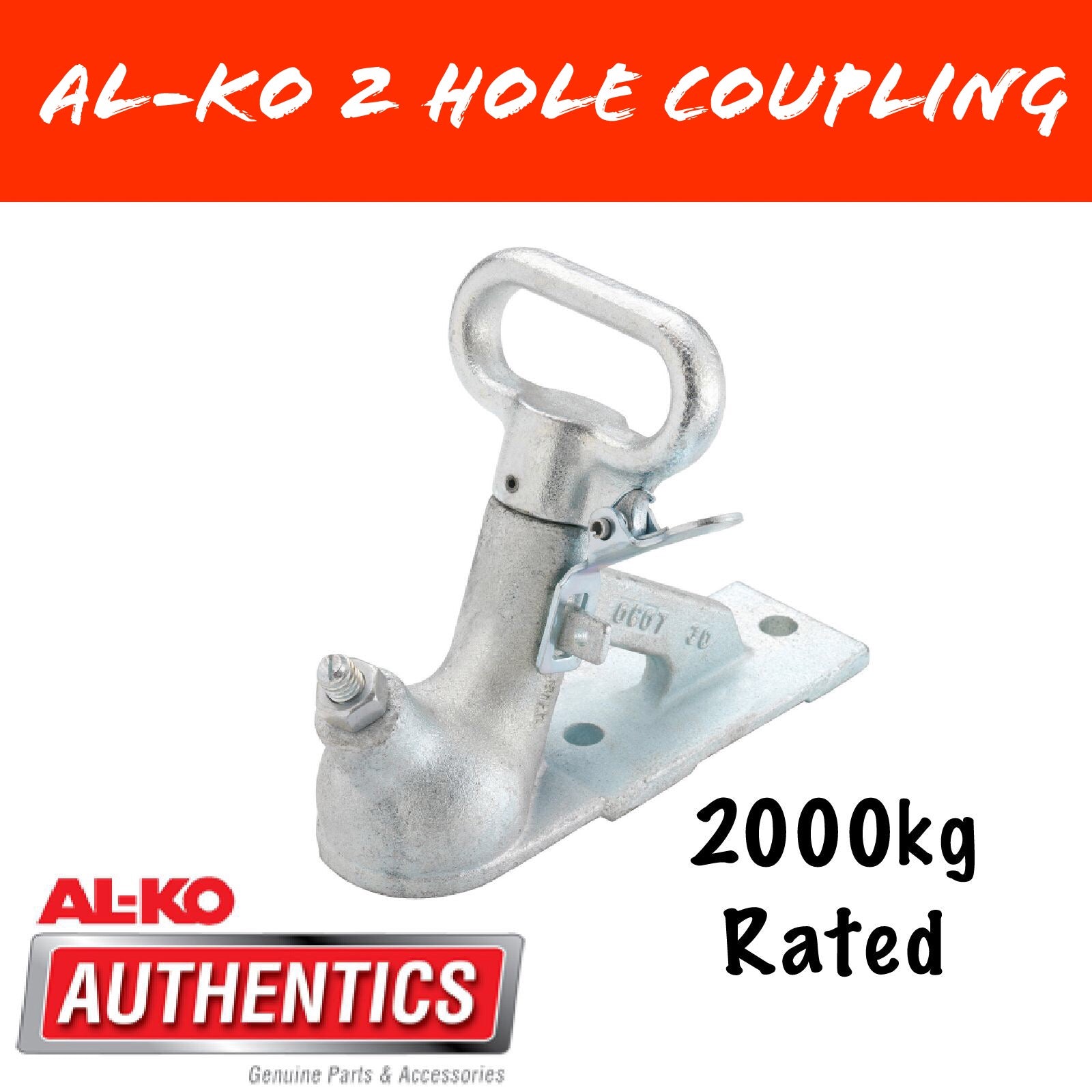

The AL‑KO Snap-On Coupling (614060PL) is a high-quality, unbraked trailer coupling rated to 2000 kg. Designed for 50 mm tow balls, this coupling features a simple 2-hole bolt pattern, durable zinc-plated finish, and snap-on latch mechanism for fast, secure hitching. A proven option for unbraked trailers, box trailers, and lightweight plant carriers.
✅ Key Features
-
Rated to 2000 kg (braked capacity)
-
Fits standard 50 mm tow balls
-
Snap-on latch mechanism—no tools required to couple or uncouple
-
Zinc-plated finish for corrosion resistance
-
2-hole mounting pattern (101.6 mm center-to-center)
-
ADR compliant for legal road use in Australia
-
Compatible with 3-hole drawbar plates
⚙️ Technical Specifications
| Feature | Specification |
|---|---|
| Part Number | 614060PL |
| Coupling Type | Snap-on, unbraked |
| Tow Ball Size | 50 mm |
| Mount Pattern | 2-hole (101.6 mm spacing), suits 3-hole plates too |
| Finish | Zinc-plated |
| Lockable | No |
| Compliance | ADR Approved |
| Weight Rating | 2000 kg (braked) |
Applications
-
Box trailers
-
General unbraked trailers
-
Boat trailers (lightweight)
-
Garden or domestic trailers
-
Suitable replacement for standard 50 mm snap-on couplings
Installation Tips
-
Confirm your drawbar has a 101.6 mm 2-hole or standard 3-hole pattern.
-
Use M12 high-tensile bolts with lock washers or nyloc nuts.
-
Ensure full travel and secure latch engagement on 50 mm ball before towing.
-
Regularly inspect for rust, play, or latch wear during routine trailer checks.
