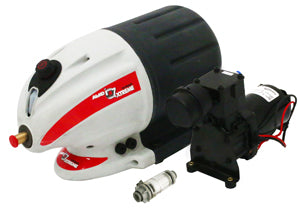

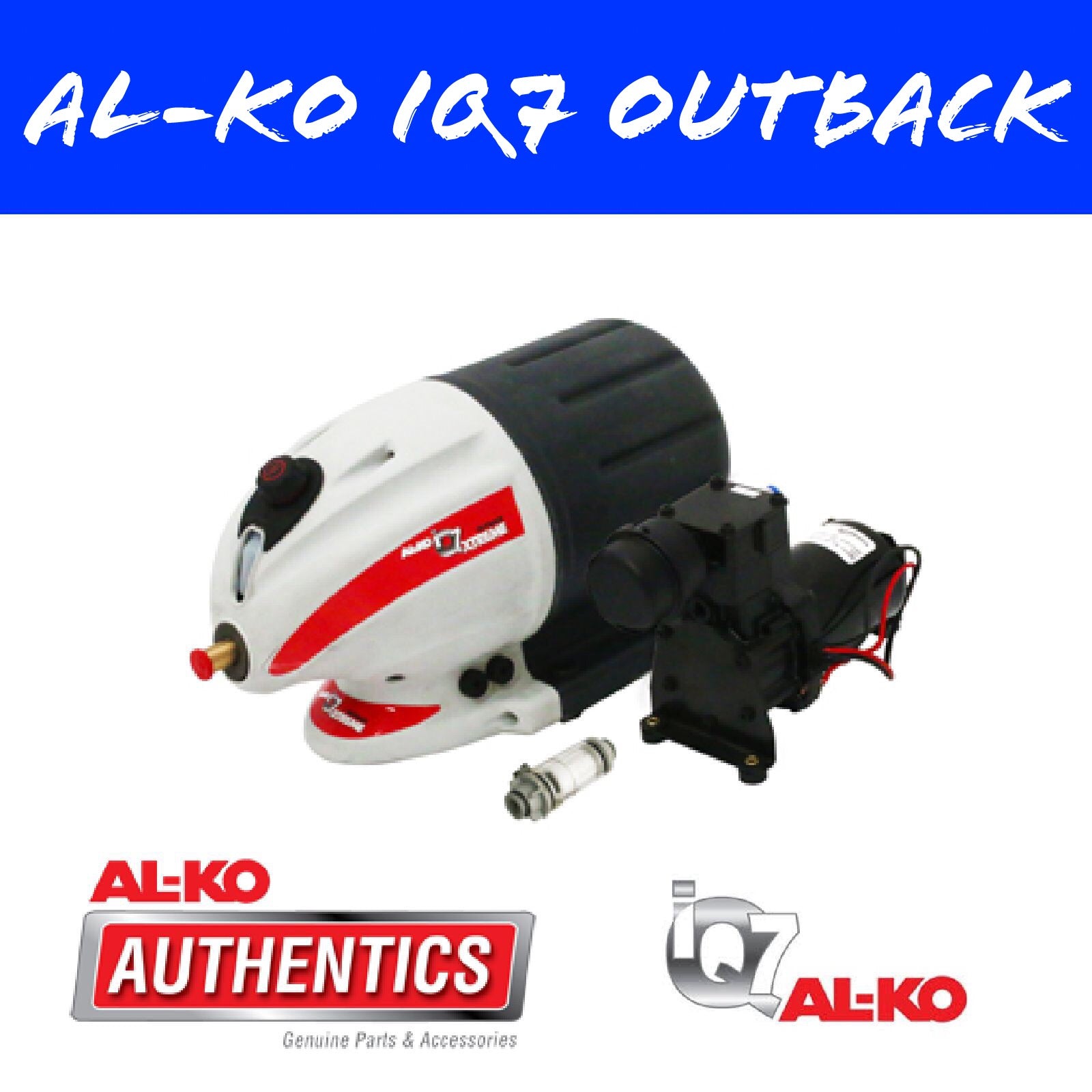

AL‑KO iQ7 Outback Electric‑Hydraulic Brake Actuator (P/N 355100) – Filtered for Dusty Conditions

Overview

The AL‑KO iQ7 Outback Brake Actuator (P/N 355100) delivers reliable, instant electric-over-hydraulic braking, engineered with robust dust-resistant features for extreme Australian off-road and coastal environments.

Key Features & Outback Benefits

• Built-in breakaway switch—no extra components required

• Replaceable air-filter system: user-serviceable in dusty conditions without tools

• Fast hydraulic response via compressed air reservoir

• Exceeds ADR compliance for trailers over 2 t ATM in Australia / 2.5 t in NZ

• Tested beyond 220,000 cycles (~10 years operational life) for durability

• Max pressure: 6.9 MPa (1000 psi); displaces ~21 cc hydraulic fluid

Applications & Controller Compatibility

• Suited for boat trailers, caravans, and off-road towing

• Works with major motion-sensing controllers: Tekonsha P3, Hayes Energiser III, REDARC Tow‑Pro Elite, etc.

• Compatible with Outback model-specific mounting and hose orientation

Installation & Maintenance

• Easy filter access for maintenance in remote locations

• Dimensions and hardware mounting options clearly stated

• Use DOT 3 or DOT 4 brake fluid as specified

• 3‑year warranty when installed by authorised AL‑KO iQ7 professional
