Overview

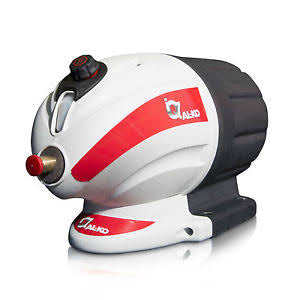

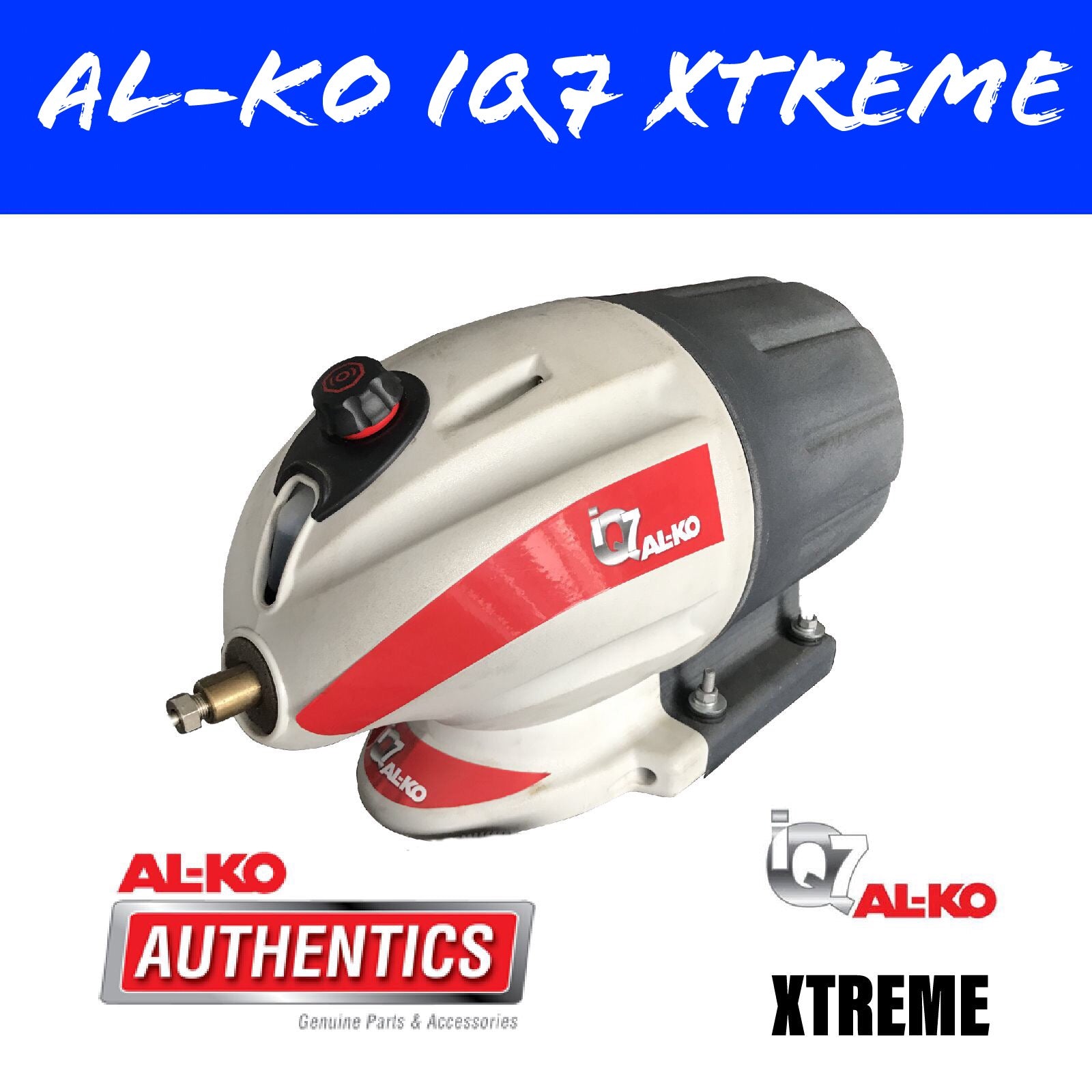

The AL‑KO iQ7 XTREME is a premium electric‑over‑hydraulic brake actuator designed for serious towing — ideal for boat trailers, caravans, and off-road use requiring ADR compliance and high-response braking.
Key Features & Benefits
-
Max hydraulic pressure: 6.9 MPa (1000 psi); fluid displacement: 21 cc
-
Rated for trailers up to 3,500 kg ATM
-
Built-in breakaway system—no extra kit required
-
Compressed-air chamber with replaceable filter for automatic brake activation and outback durability
-
Tested over 220,000 cycles (~10-year lifespan) for reliability
-
ADR compliant (CTA‑060284) for trailers over 2 tonnes
Compatibility & Installation Notes
-
Designed to work only with AL‑KO XTREME in‑car kit (P/N 355013A and 355013M)
-
Requires professional installation by authorised AL‑KO installer to qualify for the 3‑year warranty
-
Compatible with motion-sensing controllers specified by AL‑KO
Warranty & Certification
-
3‑year manufacturer warranty when professionally installed
-
Component Type Approval for ADR compliance in Australia and NZ
Shipping is calculated at checkout based on your location.
- AL‑KO iQ7 Xtreme electric-over-hydraulic brake actuator
- Must be used with the AL‑KO iQ7 Xtreme in-car kit (sold separately)
- Suitable for trailers over 2,000 kg ATM
- Integrated breakaway system activates brakes if trailer disconnects
- Tested to over 220,000 cycles — proven reliability in harsh conditions
- Complies with ADR breakaway regulations
- Backed by a 3‑year AL‑KO warranty when installed by authorised technician
