Overview
The AL‑KO 441260 is a 7″ unbraked trailer hub with the popular 6‑stud LandCruiser PCD (6×139.7 mm). It comes pre-fitted with Ford SL series bearings (L68149 inner, LM12749 outer), making it ideal for lazy axle applications that demand higher load capacity and compatibility with Toyota 6-stud wheels.
This heavy-duty hub kit includes wheel studs, nuts, standard seal, and grease cap—ready to install.

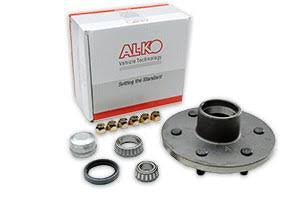

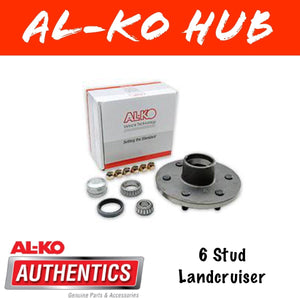

✅ What’s Included
-
1 × 7″ hub with 6 × ½″ UNF studs
-
Inner bearing: L68149
-
Outer bearing: LM12749
-
SL grease seal
-
Grease cap
-
6 × wheel nuts
⚙️ Technical Specifications
| Specification | Details |
|---|---|
| Part Number | 441260 |
| Stud Pattern (PCD) | 6 × 139.7 mm (LandCruiser) |
| Stud Thread | ½″ UNF |
| Inner Bearing | L68149 (ID: 31.75 mm) |
| Outer Bearing | LM12749 (ID: 19.05 mm) |
| Seal Type | SL |
| Hub Diameter | 6″ (lazy hub – unbraked) |
| Finish | Cast iron |
| Load Rating (per pair) | Up to ~1,600 kg |
| Suitable For | Lazy axle (non-braked trailers) |
🚚 Applications & Use Cases
-
Perfect for boat trailers, box trailers, camper builds, and off-road trailers
-
Compatible with 6-stud LandCruiser wheels (6×139.7 mm PCD)
-
Suits axles with Ford SL bearing spindles
-
Marine-style seal offers protection in coastal and wet environments
