Overview

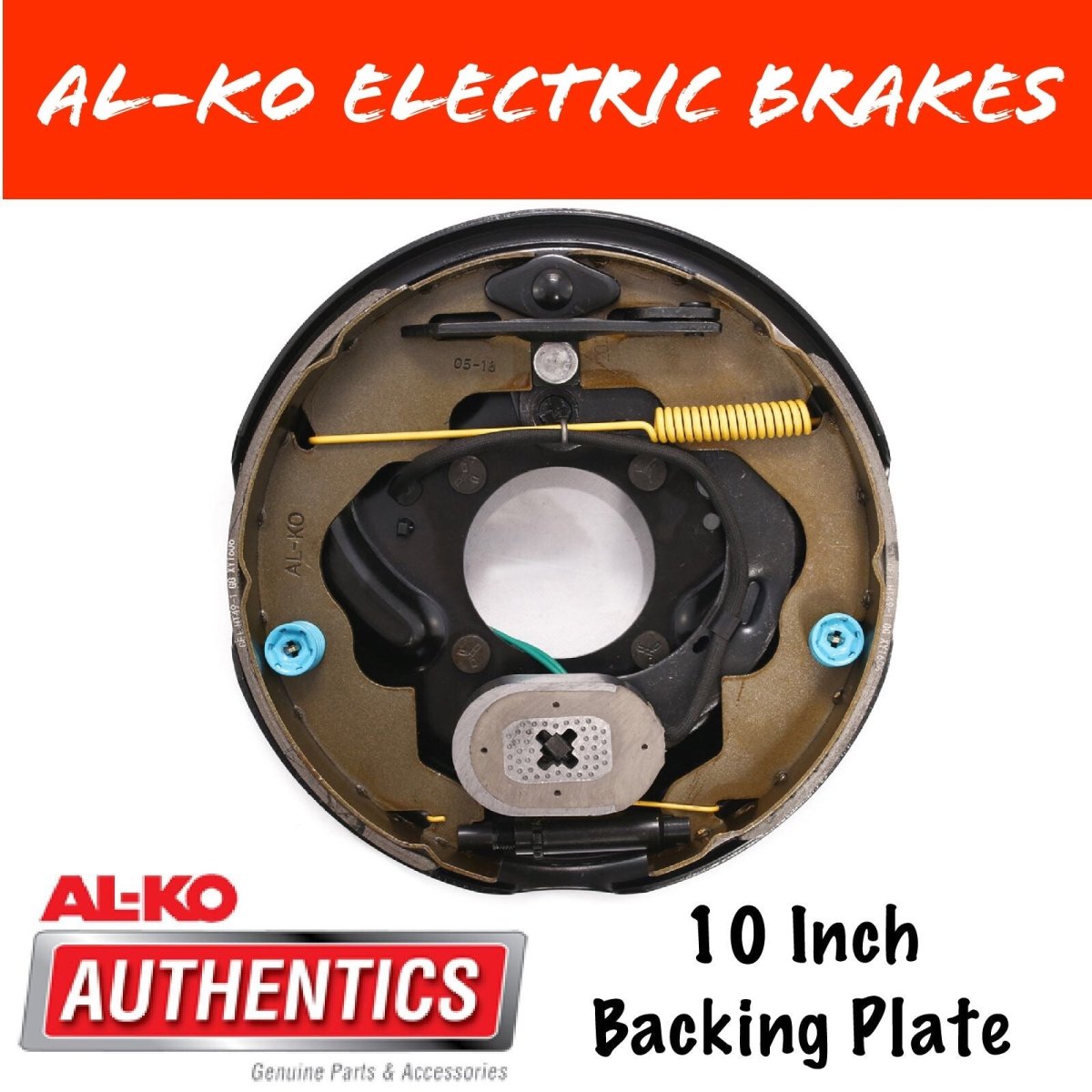

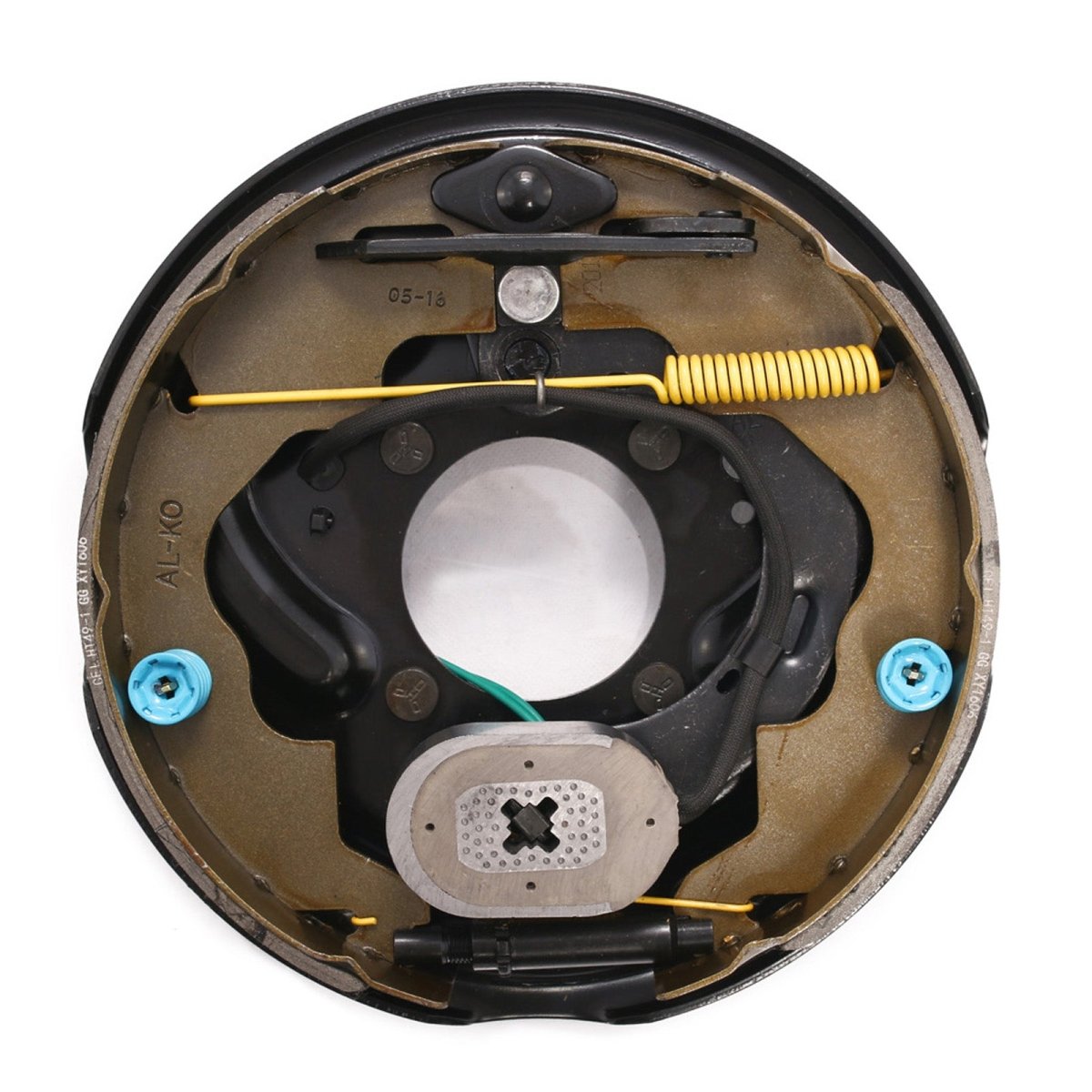

This is a genuine AL‑KO 10″ electric brake backing plate (left-hand side), designed for use with 10″ × 2¼″ drum brakes on electric-braked trailer axles. It comes fully assembled and includes all pre-installed brake components—ready to bolt directly onto your axle’s brake flange.
What’s Included
-
Fully assembled backing plate
-
Pre-fitted brake shoes
-
Electric brake magnet
-
Actuating arm and return springs
-
Park brake lever for handbrake compatibility
Key Features
-
Genuine AL‑KO quality – trusted for Australian trailer and caravan use
-
Left-hand side – for passenger side fitment
-
Ready-to-install – no assembly required
-
Park brake compatible – includes handbrake lever arm
-
10″ × 2¼″ drum compatibility – suits standard electric drum hubs
-
Standard 4-bolt mount pattern – fits common AL‑KO or Dexter-style flanges
-
For electric brake controllers – magnet compatible with all major systems
Applications
-
Suitable for caravans, boat trailers, and off-road trailers
-
Compatible with AL‑KO and Dexter 10″ electric drum brake hubs
-
Ideal for trailer refurbishments, brake upgrades, or replacements
Shipping is calculated at checkout based on your location.
- Sold individually — choose left or right side
- Suits 10" electric brake hubs
- Mounting pattern: 4 bolt, 2.875" (73 mm) center spacing
- Rated to 1600 kg per axle
- Includes backing plate, brake shoes, springs, and magnet
- Pre-wired for standard 12V electric trailer brake systems
- Compatible with AL‑KO and most standard trailer axles
- We recommend replacing both left and right sides at the same time for balanced braking
