Overview

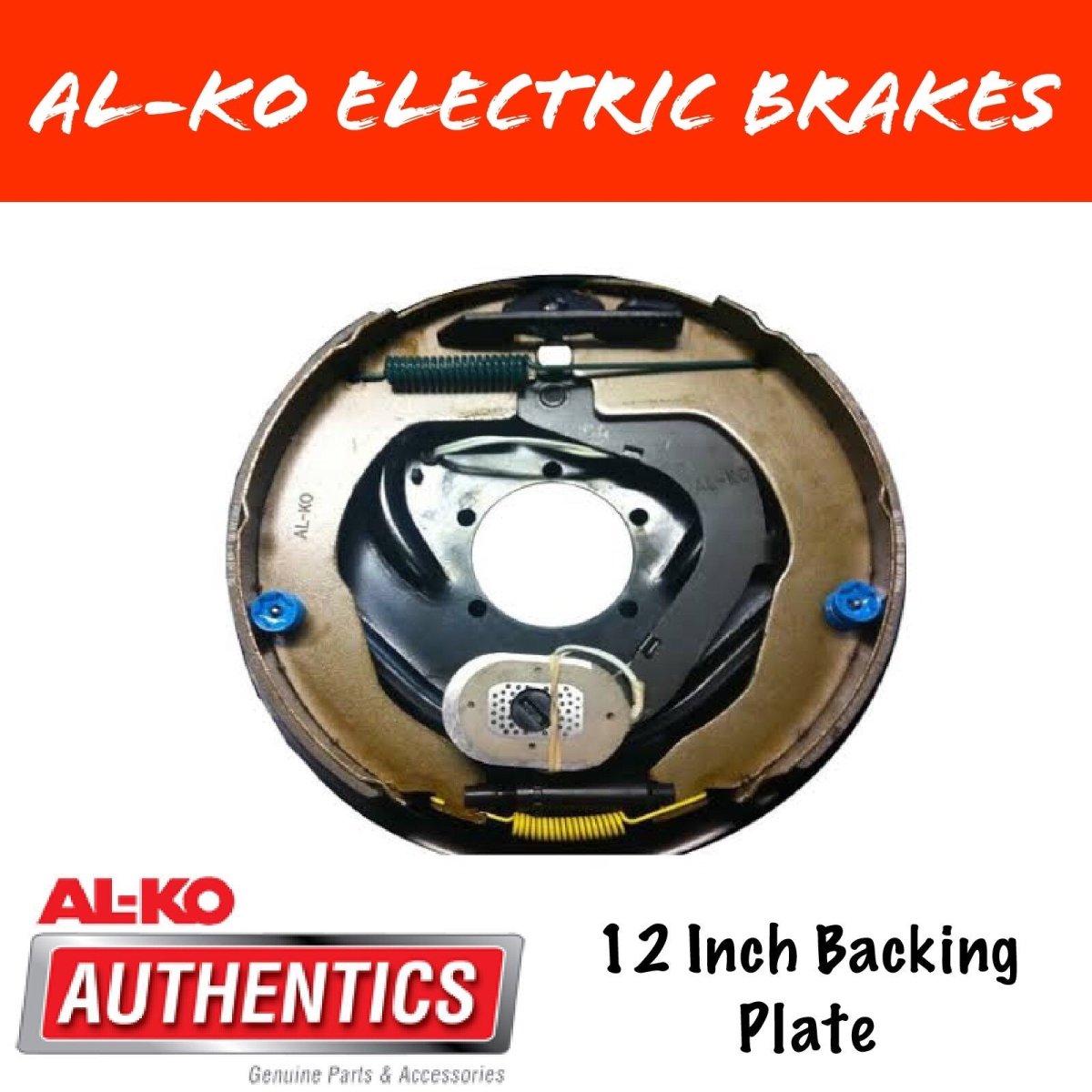

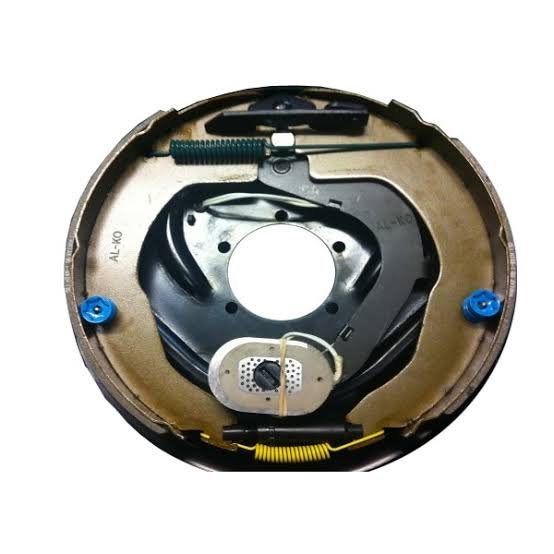

Tackle rough terrain with confidence using AL‑KO’s 12″ Off‑Road Electric Backing Plates (12″ × 2″), available in both left-hand (LH) and right-hand (RH) configurations. Built for challenging environments, these backing plates are engineered to handle vibrations and harsh conditions, extending brake component life.
Key Features
-
Off‑Road Design: Engineered specifically for rugged use to minimize wear and extend service life .
-
Park Brake Included: Integrated park-brake provision adds safety when stationary
-
Left & Right Options: Offers both LH and RH versions to suit each side of your trailer
-
Compliant and Safe: Suitable for trailers over 2000 kg GTM; supports break-away activation—meets Australian Design Rules when used with brake-away kit (AL‑KO Part No. 333080)
-
Complete Assembly Ready to Fit: Pre-assembled with brake shoes, magnets, and park lever—all set for bolt-on installation
Benefits
-
Durability in Extreme Conditions: Designed to withstand rough roads and heavy-duty use.
-
OEM Quality: Genuine AL‑KO parts ensure compatibility and performance.
-
Reliable Safety: Park brake integration and break-away compliance add peace of mind.
Shipping is calculated at checkout based on your location.
- Sold individually — choose left or right side
- Heavy-duty 12″ off-road electric brake backing plate with park lever provision
- Suits 12″ AL‑KO off-road electric brake drums (2" width)
- Mounting: 4‑bolt pattern, 2.875 in (73 mm) centre‑to‑centre
- Rated to 2500 kg per axle
- Includes brake shoes, springs, pre-wired harness, and park brake lever
- Fitted with genuine AL‑KO off-road magnet for superior durability
- For extreme rough road conditions — designed to withstand vibration and corrugations
- Recommended to replace both left and right sides simultaneously for balanced braking performance
