Dexter 10″ Electric Brake Magnet Kit – 1 Wheel (Oval) | Green Wire | K71‑104‑00

Overview

Restore braking power with this genuine Dexter 10″ × 2¼″ electric brake magnet kit, designed for one wheel only (left or right). Ideal for 3,500 lb axle systems, this magnet kit includes everything required for a straightforward replacement.

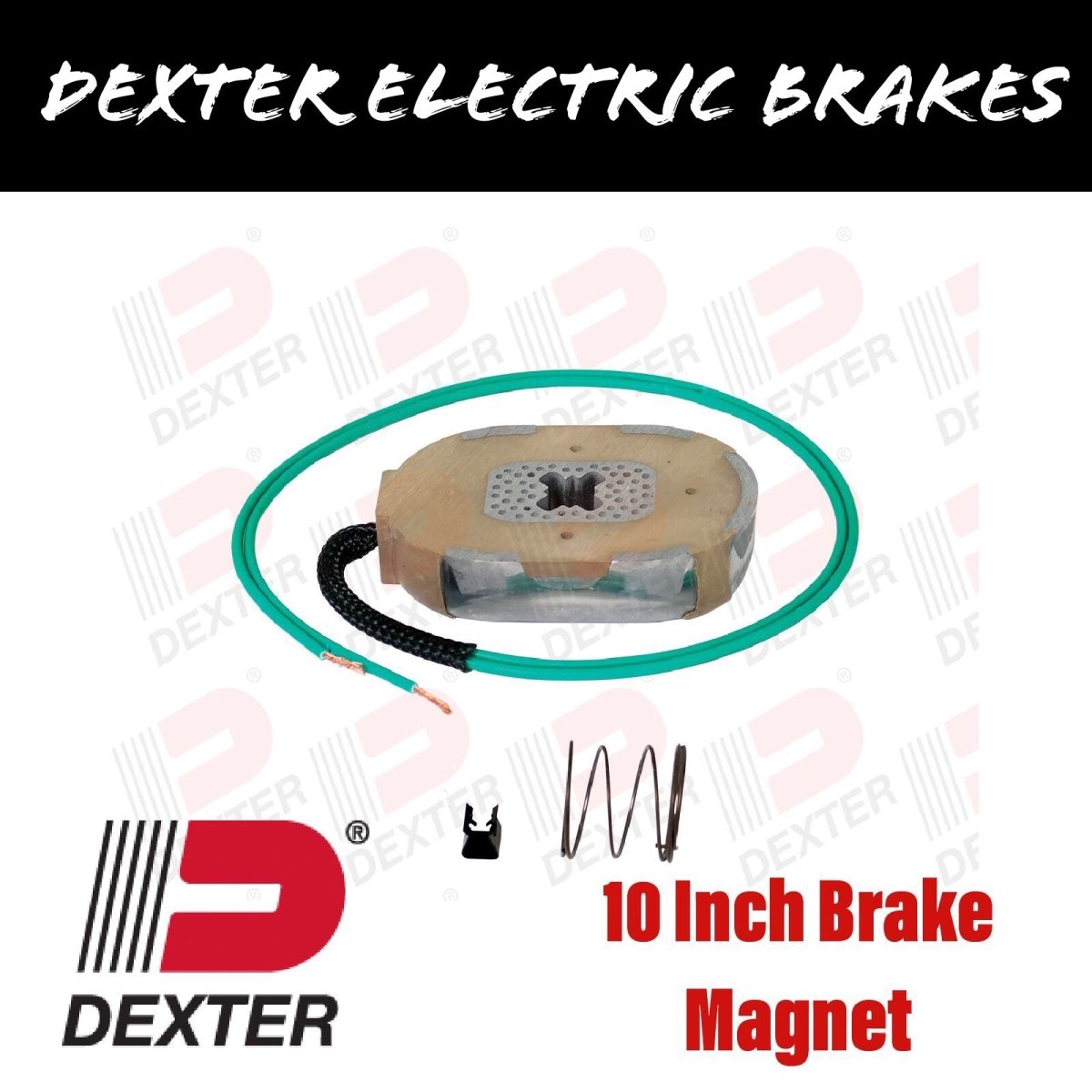

What’s Included

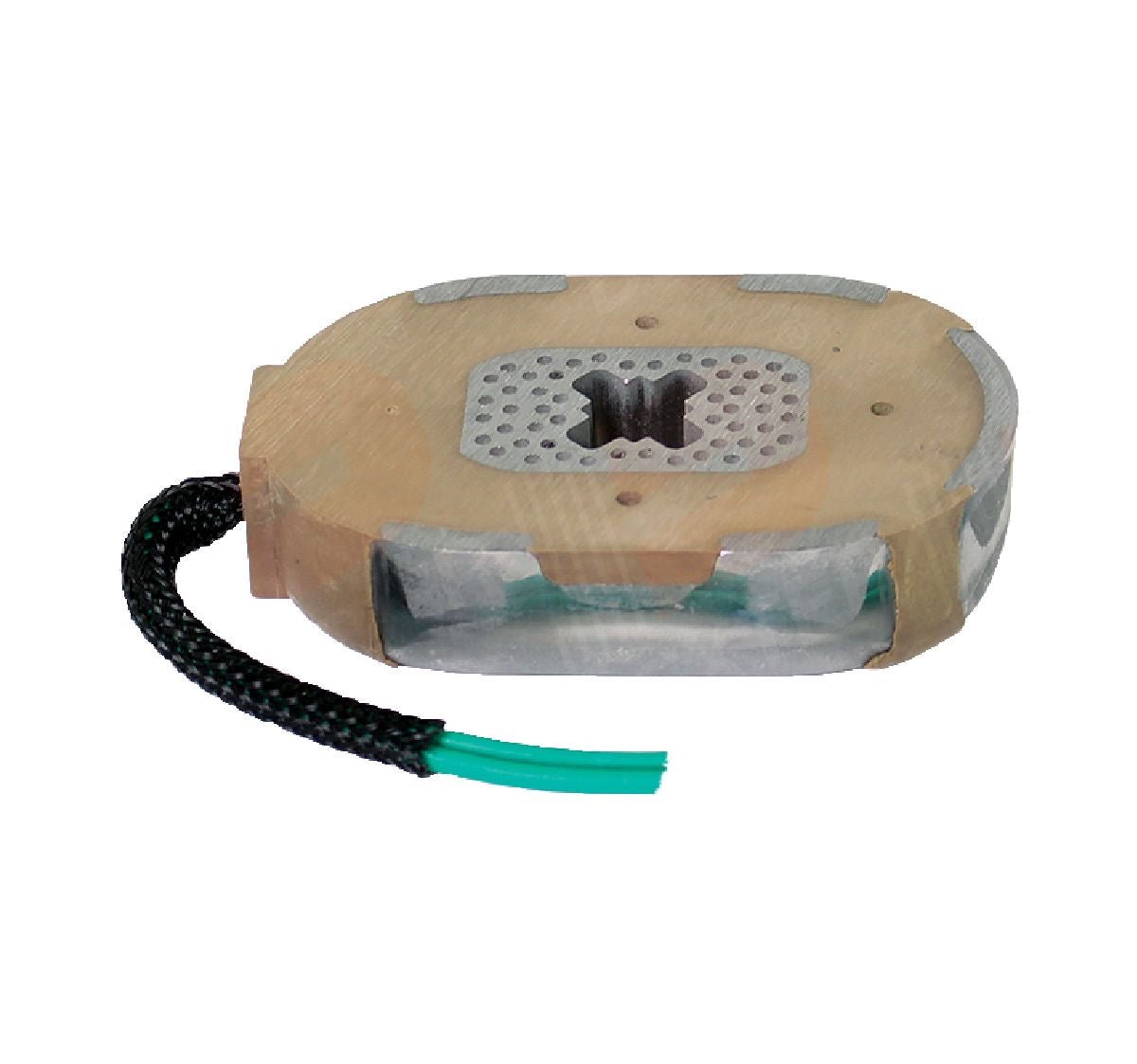

• 1 × Oval magnet assembly (green wire)

• 1 × Magnet retaining spring

• 1 × Magnet clip

Key Features

✅ OEM-quality Dexter kit (#K71‑104‑00) built to match Dexter-style backing plates exactly
✅ Oval shape design increases magnet contact and optimizes power and durability
✅ Fit for 10″ × 2¼″ drum brakes on 3,500 lb (≈1,590 kg) trailer axles
✅ Wear depth indicators—small holes around magnet face warn when replacement needed
✅ Fast dispatch from QLD, Australia – in stock and includes 12-month manufacturer warranty under ACL

🧱 Technical Specifications

Applications

• Servicing one wheel on trailers, caravans, or boat trailers

• Ideal where magnet wear, noise, or brake inconsistencies exist

• Compatible with Dexter-style electric brake backing plates and hubs

Why Choose Dexter K71‑104‑00?

Replacing a worn magnet restores braking power without the expense of replacing the full backing plate. The oval magnet design improves magnetic contact, while wear indicator holes allow easy inspection. Built to precise OEM Dexter fitment standards, this kit delivers long-lasting and consistent brake performance.

🔧 Installation Tips

1. Confirm wire orientation—it’s non‑polarised (green wire can be used either way).

2. Inspect the backing plate lever arm and wear surface before installing.

3. Replace magnets in pairs if opposing wheel shows different wear levels.

4. After installing, test brake operation and check for proper contact and magnet alignment.
