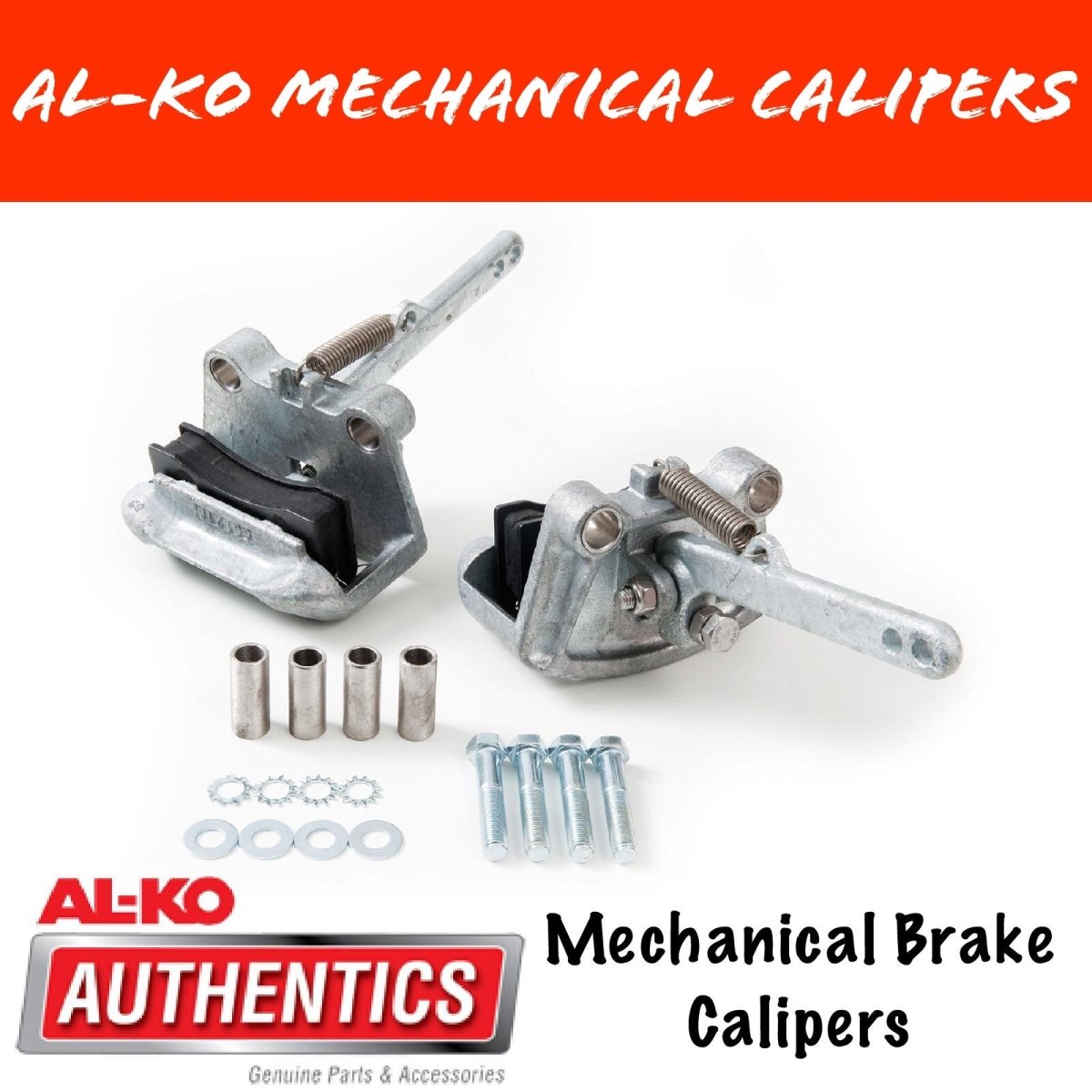

AL‑KO Mechanical Disc Brake Caliper Pair (Forward-Pull, 88.9 mm Mount, 1.0–1.3 t Rating)

Overview
Genuine AL‑KO mechanical disc brake caliper pair (Part No: 323102 forward pull version) ideal for trailers and caravans up to 1.3 tonnes per axle. Galvanised coating and stainless slide pins offer saltwater corrosion resistance and long service life.

Key Features

• Load capacity: up to 1,300 kg per axle on 13″–14″ wheels; 1,000 kg on 15″–16″ wheels

• Mounting centres: 88.9 mm (3.5″)

• Max cable pull input: ~200 kg

• Durable Galvanised finish with stainless sliding parts and springs

• Easy reverse cleanup—ideal for marine or dusty environments

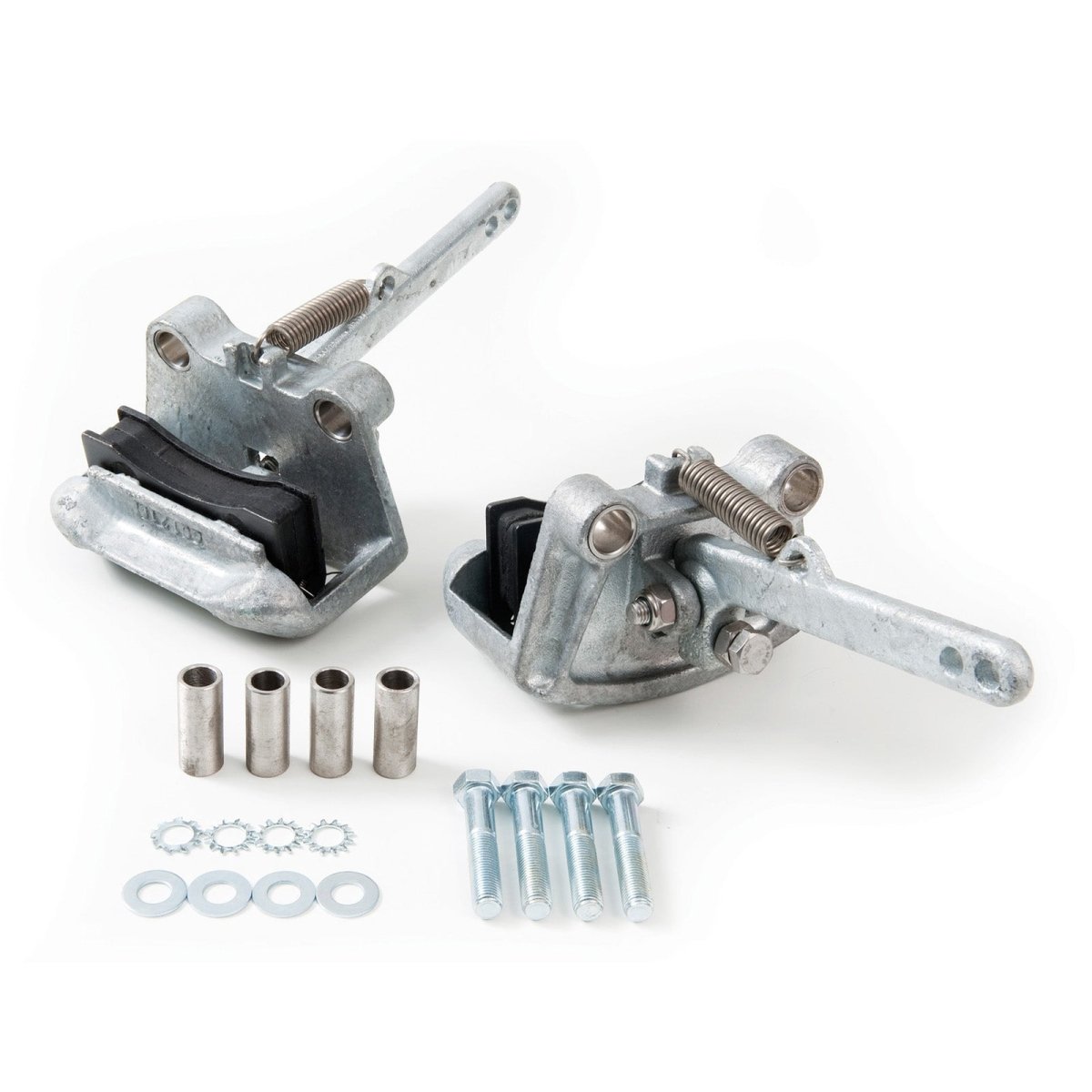

In the Box

• 2 calipers (left + right)

• 4 × zinc plated 7/16″ UNF bolts

• 4 × shakeproof washers

• 4 × flat washers for secure fit

Installation & Maintenance

• Flush bearings and brake cable before fitting

• Inspect and adjust cable tension to avoid pad wear

• Compatible with standard AL‑KO pads (P/N 341103)

• Adjust caliper bolt to reduce pad chatter on installation

Warranty

• Backed by a 12-month manufacturer warranty

• Suitable for beam-axle and IRS (Independent Rubber Suspension) applications
