Overview

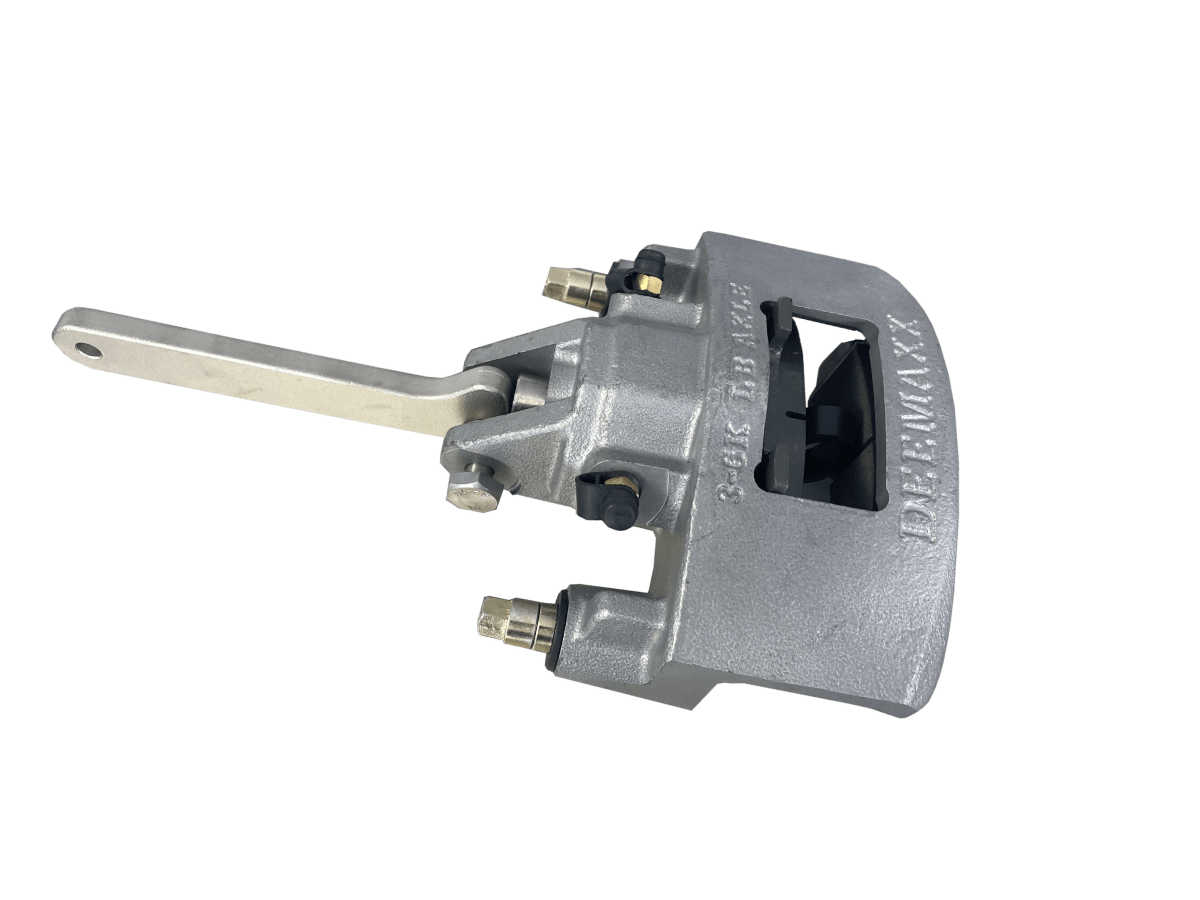

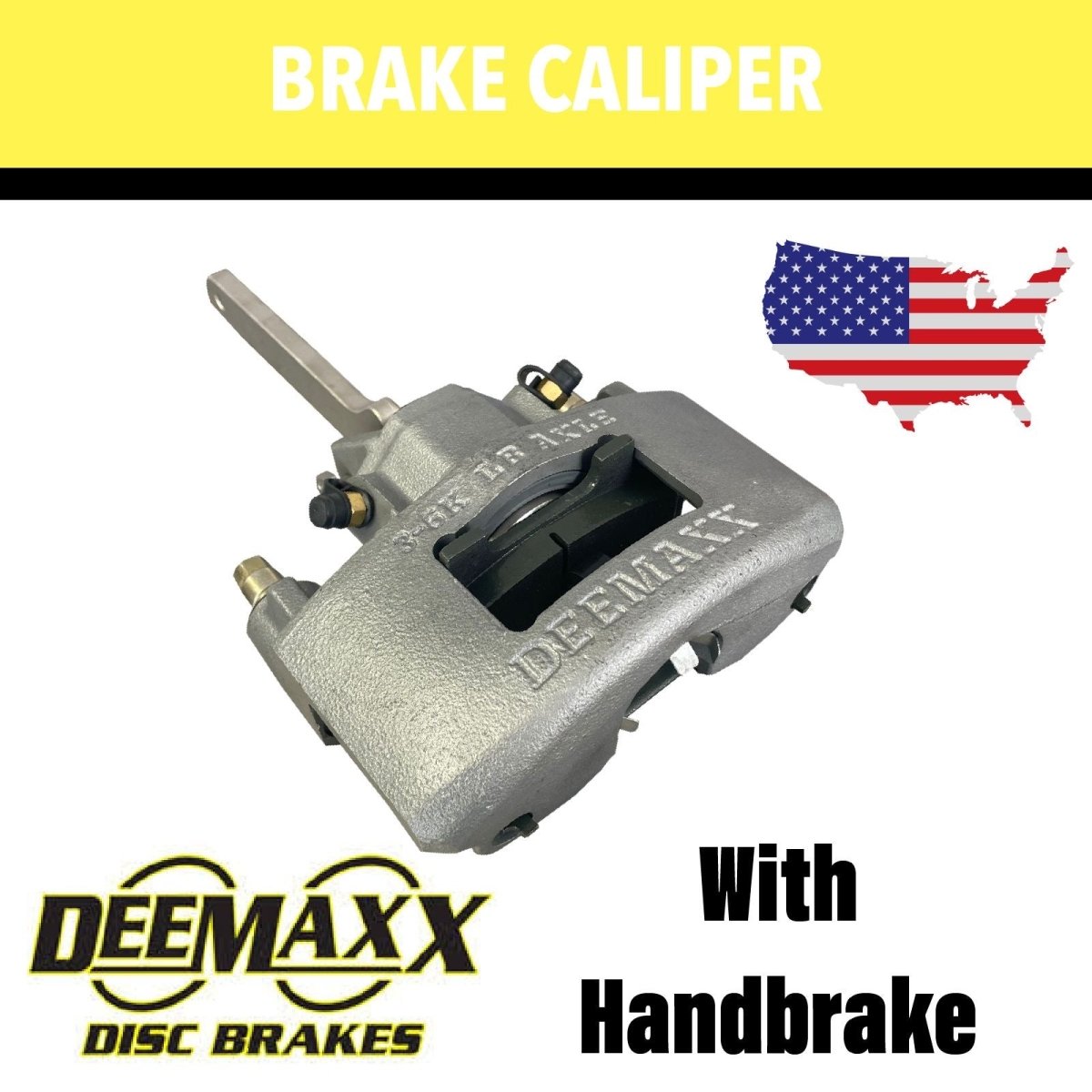

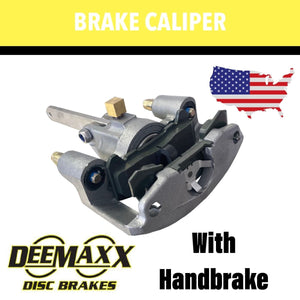

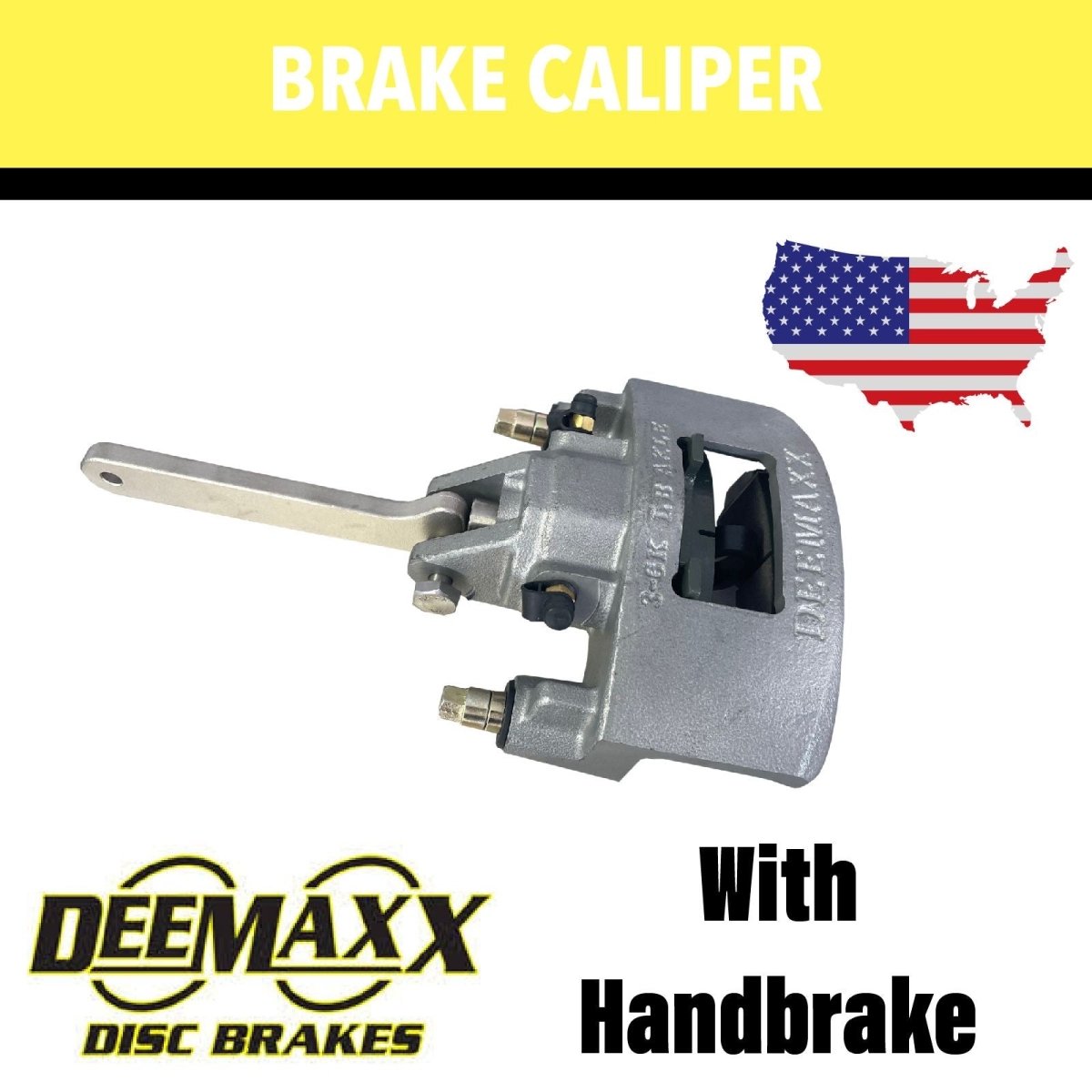

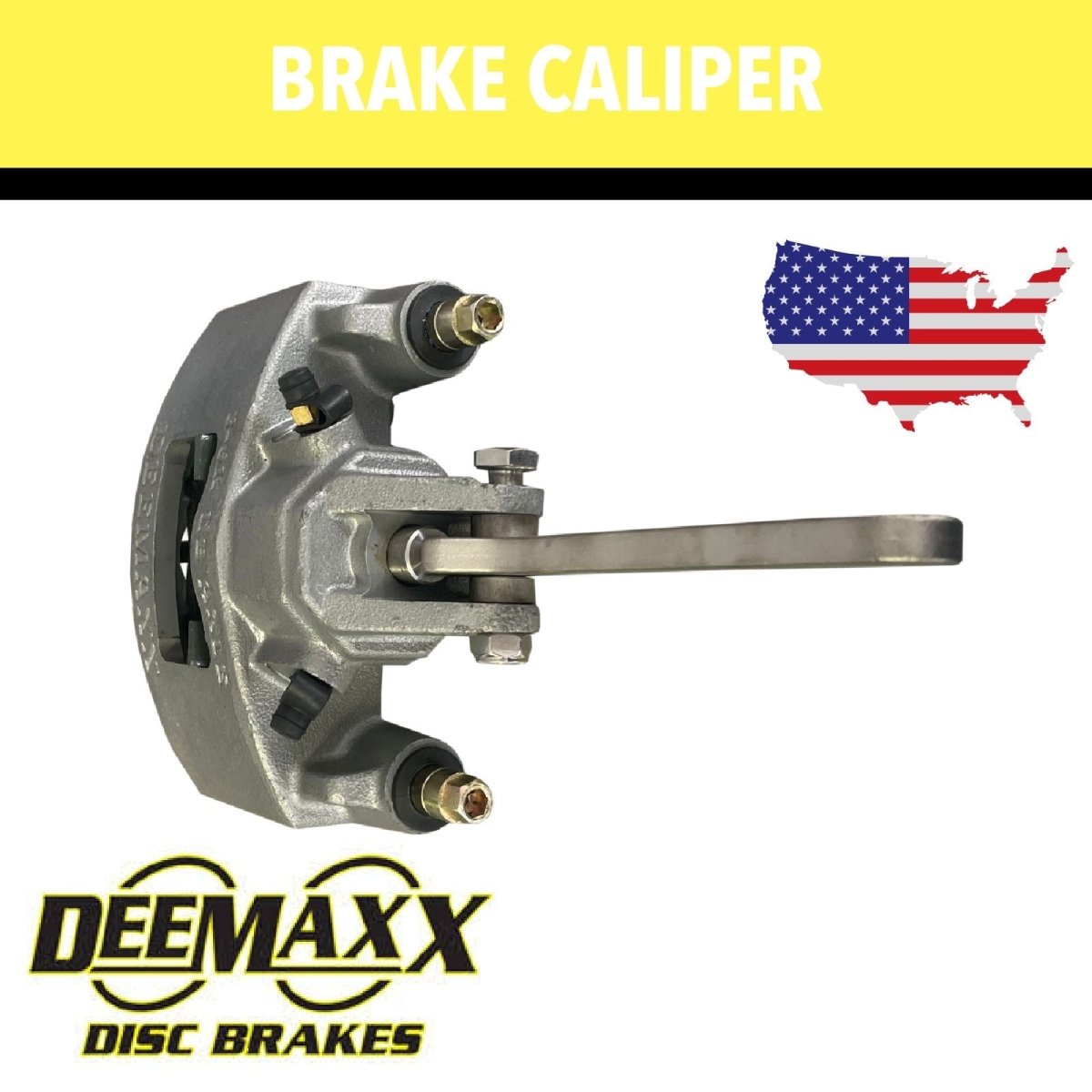

Engineered for robust trailer braking performance, this Deemaxx hydraulic disc caliper (P/N: CALP‑3‑6‑MAXXHB) features a built-in mechanical handbrake lever, suited for integration with your hydraulic main brake system. Ideal for boat trailers and coastal applications, it blends reliable braking with high-end marine protection.
Key Features
-
Hybrid design: Hydraulic braking + cable‑activated mechanical park brake
-
MAXX corrosion-resistant coating designed for marine environments
-
Accepts 22 mm vented American-style brake rotors with standard 147 mm mounting spacing
-
Includes dual bleeder nipples, stainless-steel piston & mounting bolts, and ceramic non-asbestos brake pads
-
Pressure tested to 2,000 psi for added reliability
Specifications
| Specification | Details |
|---|---|
| Part Number | CALP‑3‑6‑MAXXHB |
| Brake Type | Hydraulic with Mechanical Park Brake |
| Coating | MAXX marine-grade corrosion resistance |
| Bolt Centre Spacing | 147 mm (5.8 in) |
| Suitable Rotor Style | 22 mm vented American rotors |
| Brake Pads Included | Ceramic, non-asbestos |
| Fittings & Construction | Stainless steel pistons & bolts |
| Pressure Tested | To 2,000 psi |
Compatibility & Use
Designed for both slip-on and integral brake kits, this caliper is plug-and-play compatible with standard Kodiak 225 and similar systems, making it ideal for upgrading to a marine-capable setup.
Warranty & Shipping
-
Comes with a 12‑month manufacturer warranty
-
Fast Australia‑wide dispatch, usually next business day from Queensland
-
Shipping calculated at checkout based on delivery address
