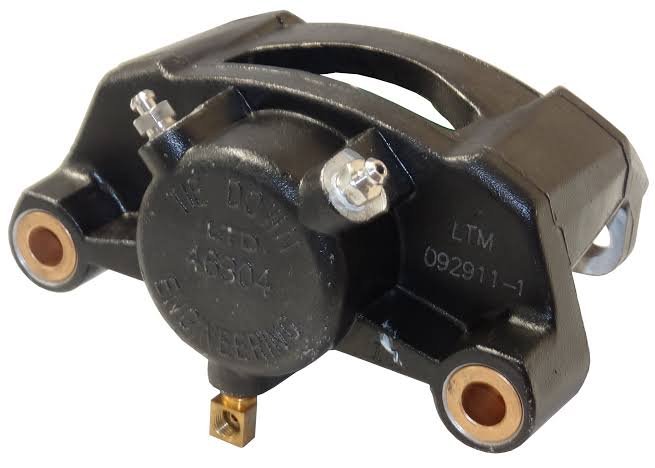

LoadForce Aluminium Brake Caliper P/N 46304 – Fits Tie Down 3.5K–6K Axles, 10″/12″ Rotors

Overview
The LoadForce 46304 Brake Caliper is a direct replacement for Tie Down Engineering 46304 units, designed for trailer applications with 3,500 lb to 6,000 lb (1,600–2,700 kg) axles and compatible with 9.6", 10", or 12" vented disc rotors.

Features

• High-strength aluminium body with black E-Coat corrosion protection

• Dual stainless bleeder nipples for easy bleeding and symmetric installation

• Heavy-duty ceramic brake pads included—safe for high heat applications

• Durable bronze slider-pin bushings and oversized piston boot design

Compatibility & Specs

• Axle rating: 3.5K to 6K (1,600–2,700 kg)

• Rotor sizes: 9.6", 10", 12" vented disc

• Mounting hardware (slide bolts) sold separately – part number SPTD

Installation Notes

• Flush your hydraulic brake system prior to installation

• Requires DOT 3 or DOT 4 brake fluid—DOT 4 recommended for moisture resistance

• Bleed system thoroughly after installation to ensure safe brake operation

Warranty & Service Tips

• Backed by 12-month manufacturer warranty

• Replace pads when friction material wears to ~3/32”

• Compatible with LoadForce pad set DBPTTD for future maintenance
