Product Description

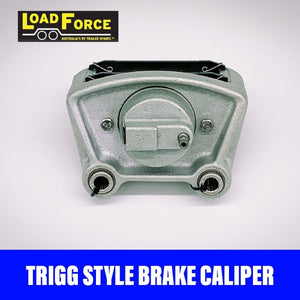

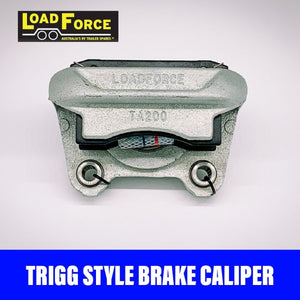

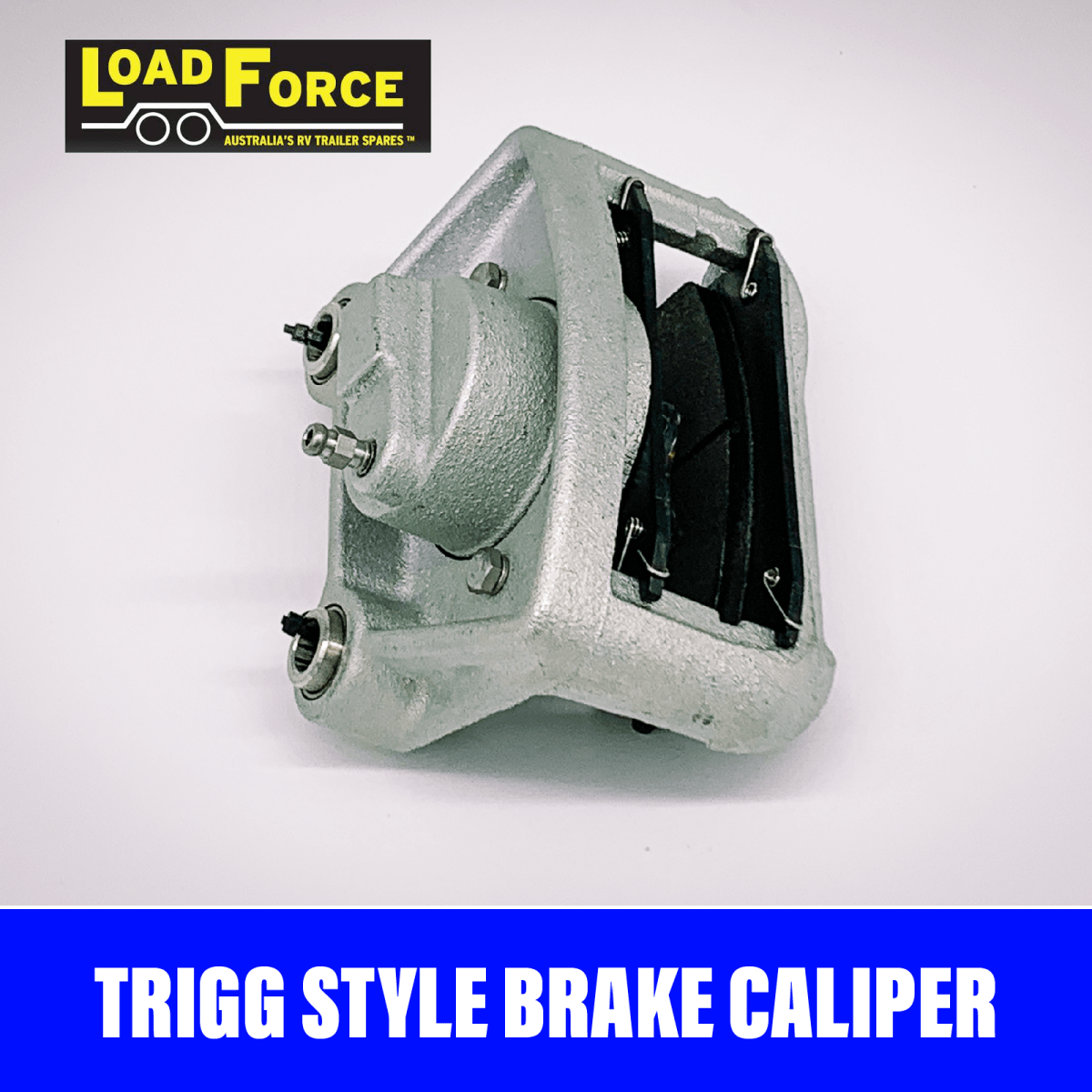

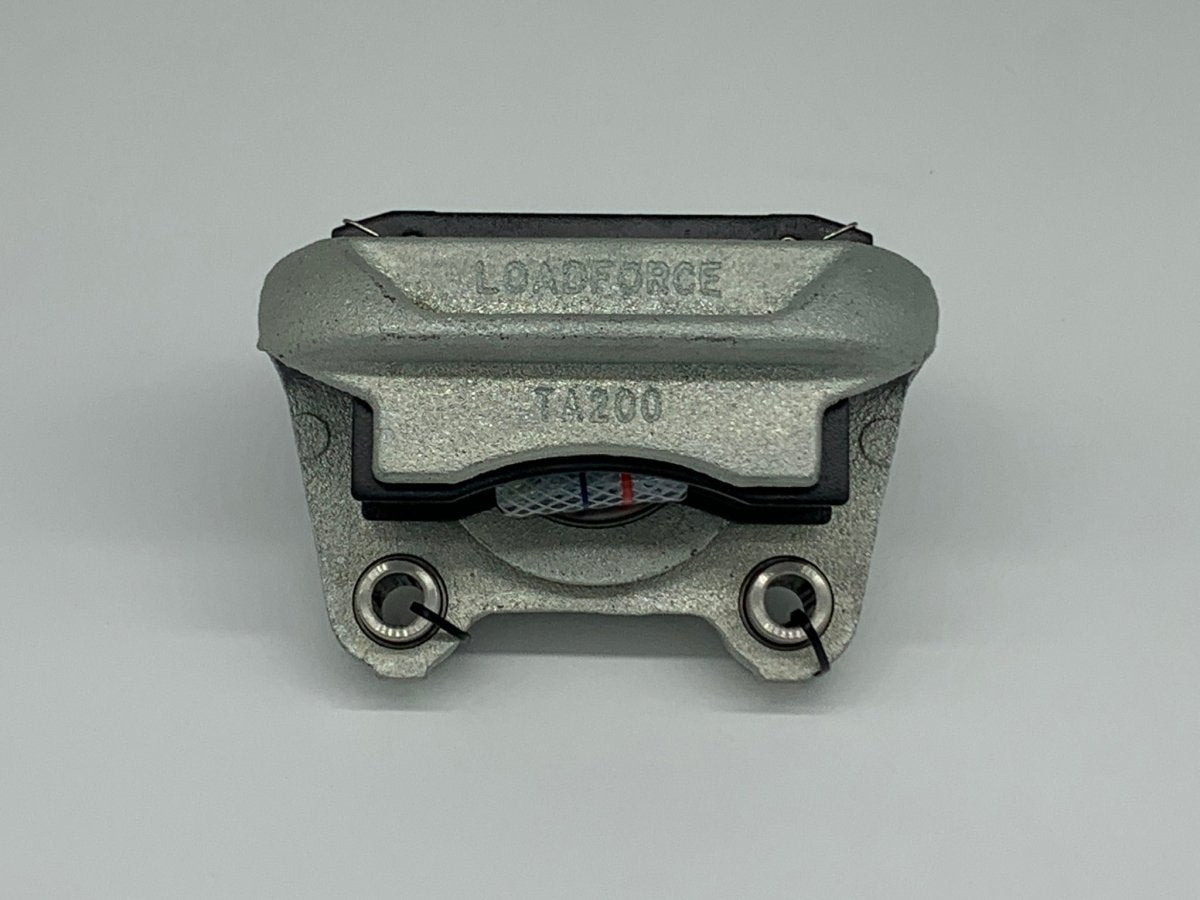

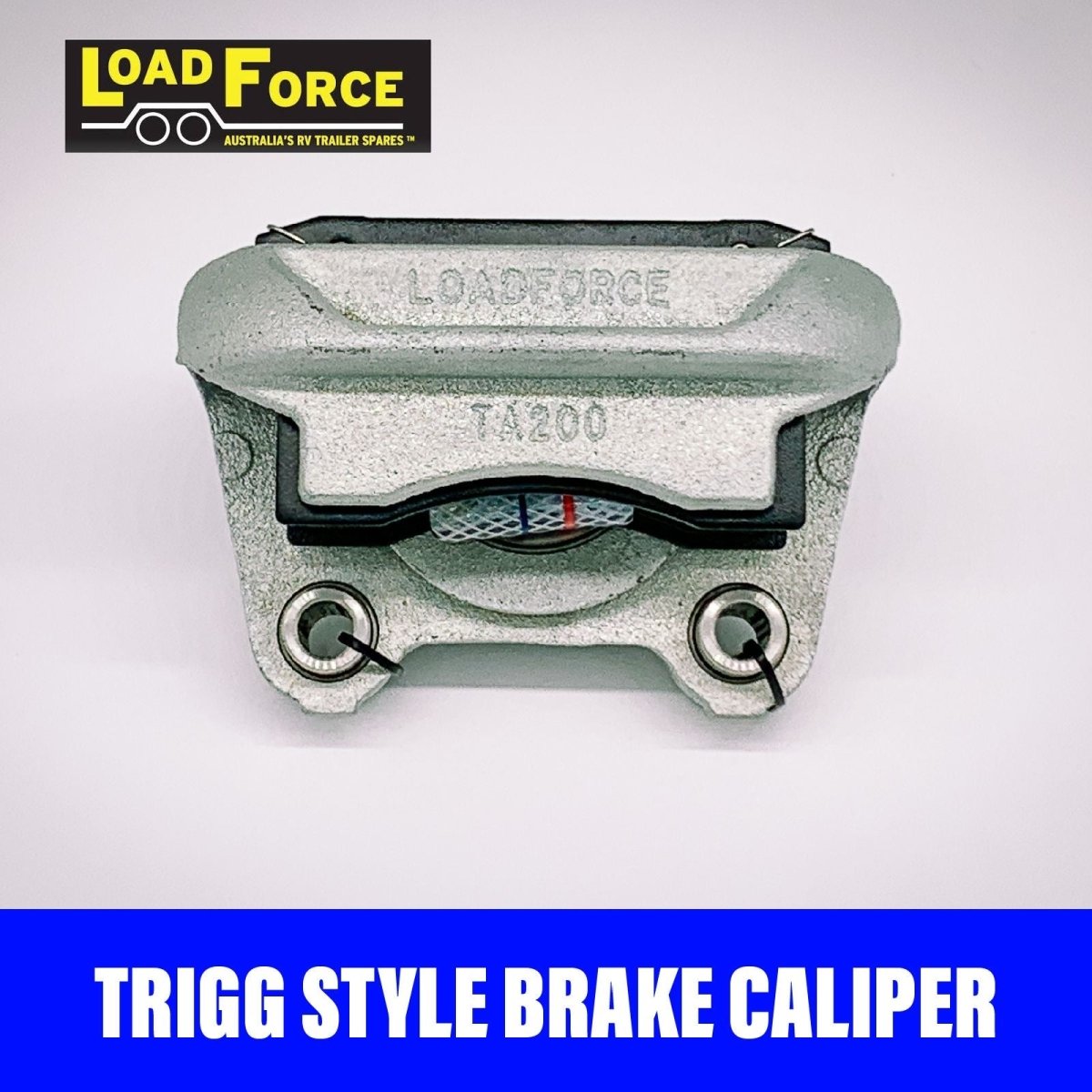

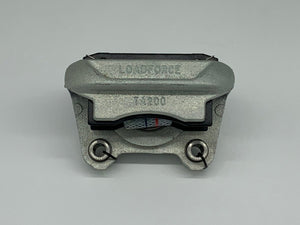

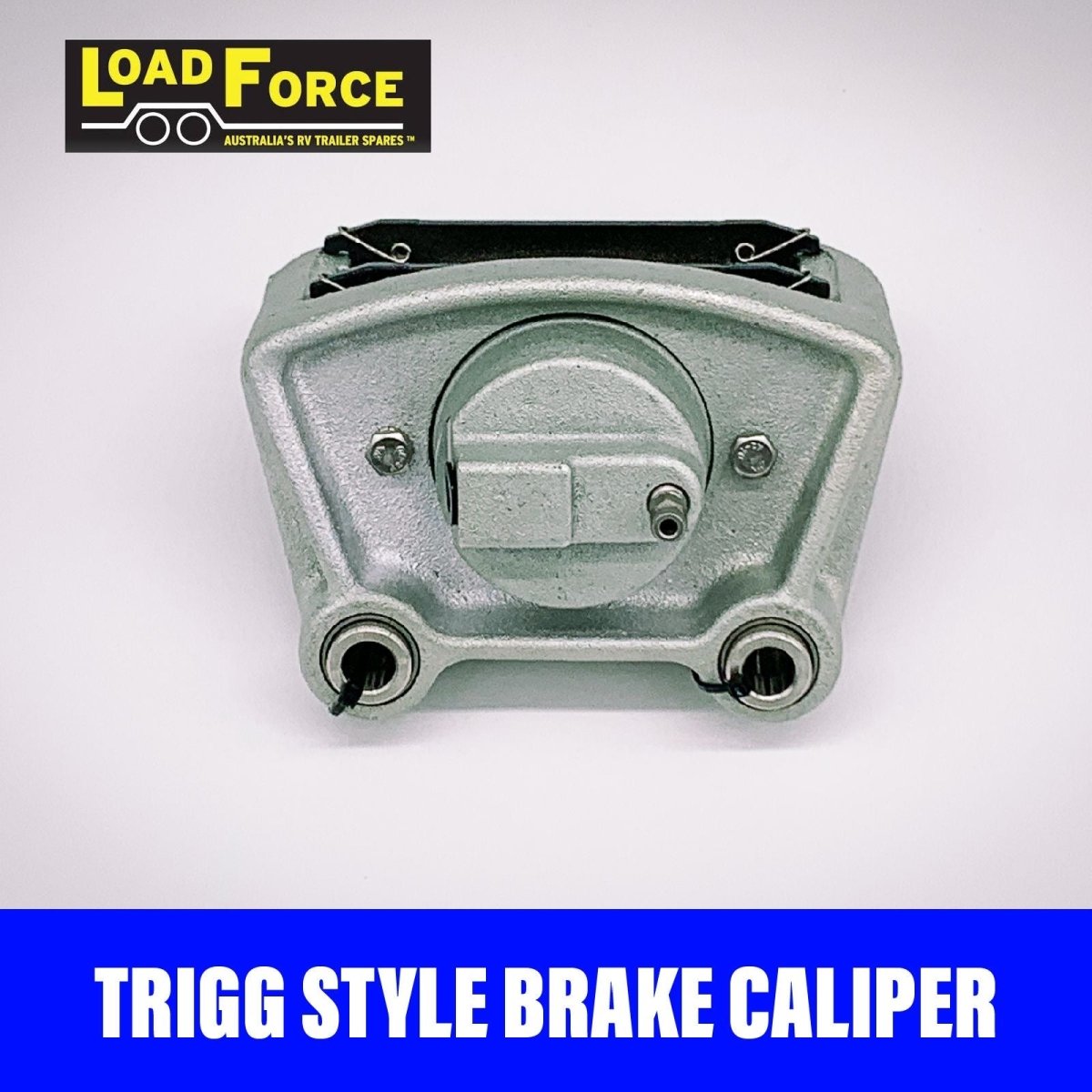

The LoadForce TA200 Hydraulic Brake Caliper is a high-quality hydraulic disc brake caliper designed as a direct replacement for the popular Trigg A200 trailer brake caliper. Built for Australian trailers, caravans and marine applications, the TA200 delivers reliable braking performance using proven hydraulic technology and upgraded internal components.
Manufactured with a corrosion-resistant galvanised cast iron body, the TA200 features stainless steel slide tubes, an upgraded square-section piston seal and premium asbestos-free brake pads. These improvements help provide smoother operation, improved sealing and longer service life compared with many older designs.
Suitable for brake rotors between 12 mm and 15 mm thick, the LoadForce TA200 is compatible with hydraulic override braking systems and is an excellent replacement for worn or damaged Trigg A200 calipers.
Features & Benefits
- Genuine LoadForce TA200 Hydraulic Brake Caliper
- Direct replacement for Trigg A200 hydraulic brake calipers
- Corrosion-resistant galvanised cast iron body
- Upgraded square-section piston seal
- Stainless steel slide tubes
- Premium asbestos-free trailer brake pads included
- Suits 12–15 mm brake rotors
- Compatible with DOT 3 and DOT 4 brake fluid
- Designed for Australian trailer applications
- Reliable braking performance
- Easy replacement for existing Trigg A200 calipers
Specifications
| Specification | Details |
|---|---|
| Brand | LoadForce |
| Model | TA200 |
| Product Type | Hydraulic Disc Brake Caliper |
| Replaces | Trigg A200 |
| Body Material | Galvanised Cast Iron |
| Rotor Thickness | 12–15 mm |
| Mounting Hole Centres | 90 mm |
| Brake Pads | Premium Asbestos-Free Pads Included |
| Slide Tubes | Stainless Steel |
| Brake Fluid | DOT 3 or DOT 4 |
| Actuation | Hydraulic Override |
| Required Mounting Bolts | 2 × A100BOLT (Sold Separately) |
| Brake Line Fitting | HU4 Union & CW1 Copper Washer Required |
| Warranty | Manufacturer Warranty |
Suitable Applications
Suitable for:
- Boat trailers
- Car trailers
- Camper trailers
- Caravans
- Horse floats
- Utility trailers
- Commercial trailers
Designed as a direct replacement for trailers fitted with Trigg A200 hydraulic brake calipers.
Why Choose the LoadForce TA200?
The LoadForce TA200 is an excellent replacement for worn Trigg A200 calipers, offering proven reliability with several important upgrades.
The improved square-section piston seal provides better sealing than older O-ring designs, while the stainless steel slide tubes help improve durability and reduce corrosion.
Combined with premium trailer-specific brake pads, the TA200 delivers dependable braking performance for everyday towing.
In the Box
- 1 × LoadForce TA200 Hydraulic Brake Caliper
- 1 × Premium Asbestos-Free Brake Pad Set (pre-installed)
- Stainless Steel Slide Tubes
Not Included
- 2 × A100BOLT Mounting Bolts
- HU4 Brake Union
- CW1 Copper Washer
- Brake Rotor
- Hydraulic Brake Line
- Brake Fluid
Compare Your Options
| Model | Best For |
| LoadForce TA200 | Direct replacement for Trigg A200 hydraulic brake systems. |
| LoadForce TA300 | Upgrade for Trojan AU & Trigg A200 with billet stainless steel piston. |
| LoadForce TA300-SS | Premium full stainless steel upgrade for marine environments. |
| LoadForce T2 | Premium aluminium upgrade for PBR Type 2 systems. |
Complete Your Installation
Brake Actuators
- AL-KO iQ7 Electric Over Hydraulic Brake Actuator
- Hydrastar HBA12 Brake Actuator
- Hydrastar HBA16 Brake Actuator
- Dexter Electric Over Hydraulic Brake Actuators
Hydraulic Brake Components
- Stainless Steel Hydraulic Brake Line Kits
- Hydraulic Brake Fluid
- Brake Rotors
- Hydraulic Brake Fittings
Service Parts
- TA200 Brake Pad Set
- TA200 Hydraulic Caliper Rebuild Kit (CKTA200)
- A200 Mounting Bolt
- Wheel Bearing Kits
-
Bearing Seals
Installation Tips
- Flush old brake fluid before installing the new caliper.
- Inspect the brake rotor for wear or scoring.
- Fit new brake pads if replacing only one caliper.
- Bleed the hydraulic system thoroughly after installation.
- Replace calipers in axle pairs where practical for even braking.
Frequently Asked Questions
Does this replace the Trigg A200 caliper?
Yes. The LoadForce TA200 is designed as a direct replacement for the Trigg A200 hydraulic brake caliper.
What improvements does it have over older designs?
It features an upgraded square-section piston seal, stainless steel slide tubes and premium trailer brake pads for improved durability and braking performance.
What rotor thickness does it suit?
It suits brake rotors between 12 mm and 15 mm thick.
Are brake pads included?
Yes. Premium asbestos-free trailer brake pads are supplied with the caliper.
Is mounting hardware included?
No. Two A100BOLT mounting bolts, a HU4 brake union and a CW1 copper washer are required and sold separately.
What brake fluid should I use?
The caliper is compatible with DOT 3 or DOT 4 brake fluid. DOT 4 is recommended.
