Overview

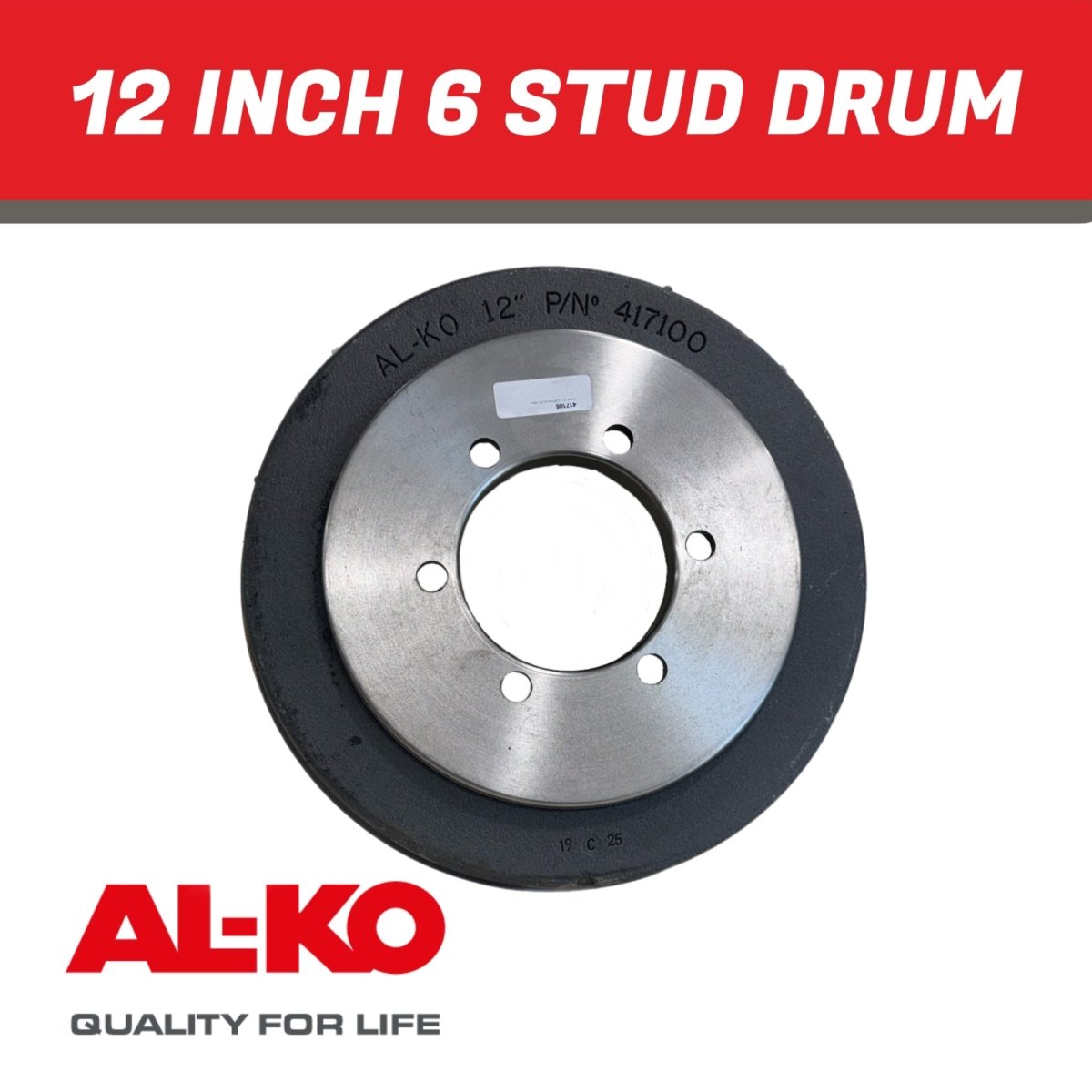

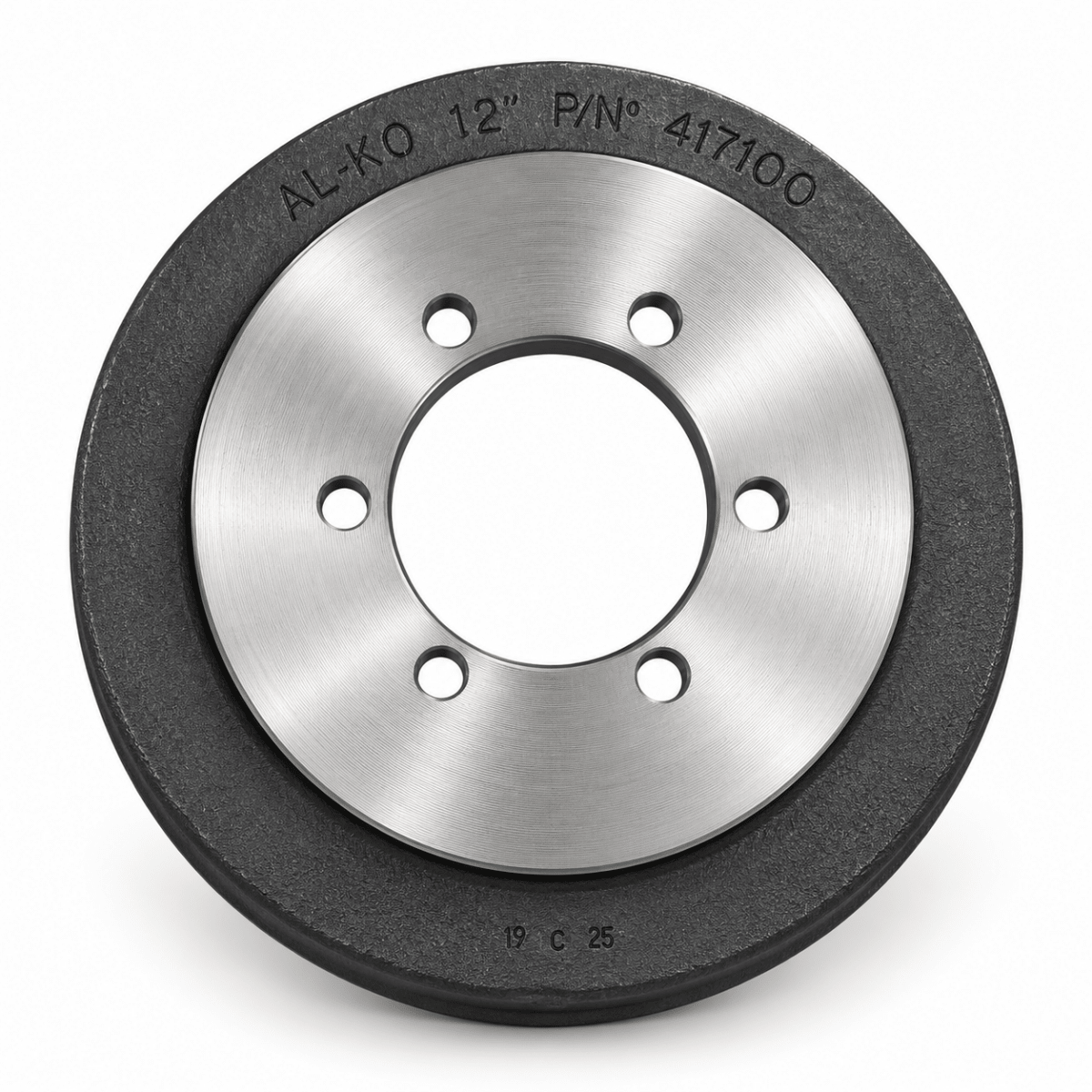

This genuine AL-KO 12″ electric brake drum—Part #417105—is engineered for trailers using the 6-stud LandCruiser pattern (6 × 139.7 mm PCD). Crafted from high-grade ductile iron, it’s rated to support axle capacities up to 3,000 kg, depending on your bearing selection.
Key Features
-
Premium build: Made with high-grade ductile iron for exceptional strength and durability.
-
Heavy-duty load rating: Supports approximately 3,000 kg per axle when paired with appropriate bearings.
-
Precision-engineered fit: Compatible with AL-KO 2T and 3T Hubs
-
Bearings/Hubs sold separately: Options for 2-tonne or 3-tonne bearing/hub kits (e.g., 30210/15123) to complete the hub assembly.
Applications
Ideal for replacing worn or damaged drums on caravans, trailers, or boat trailers, the hub is a drop-in solution for electric brake system overhauls.
Installation Tips
-
Ensure you match the correct bearing type and axle rating for optimal performance.
-
When replacing the magnet, the internal drum face should be machined to ensure flatness and optimal braking action.
