Overview

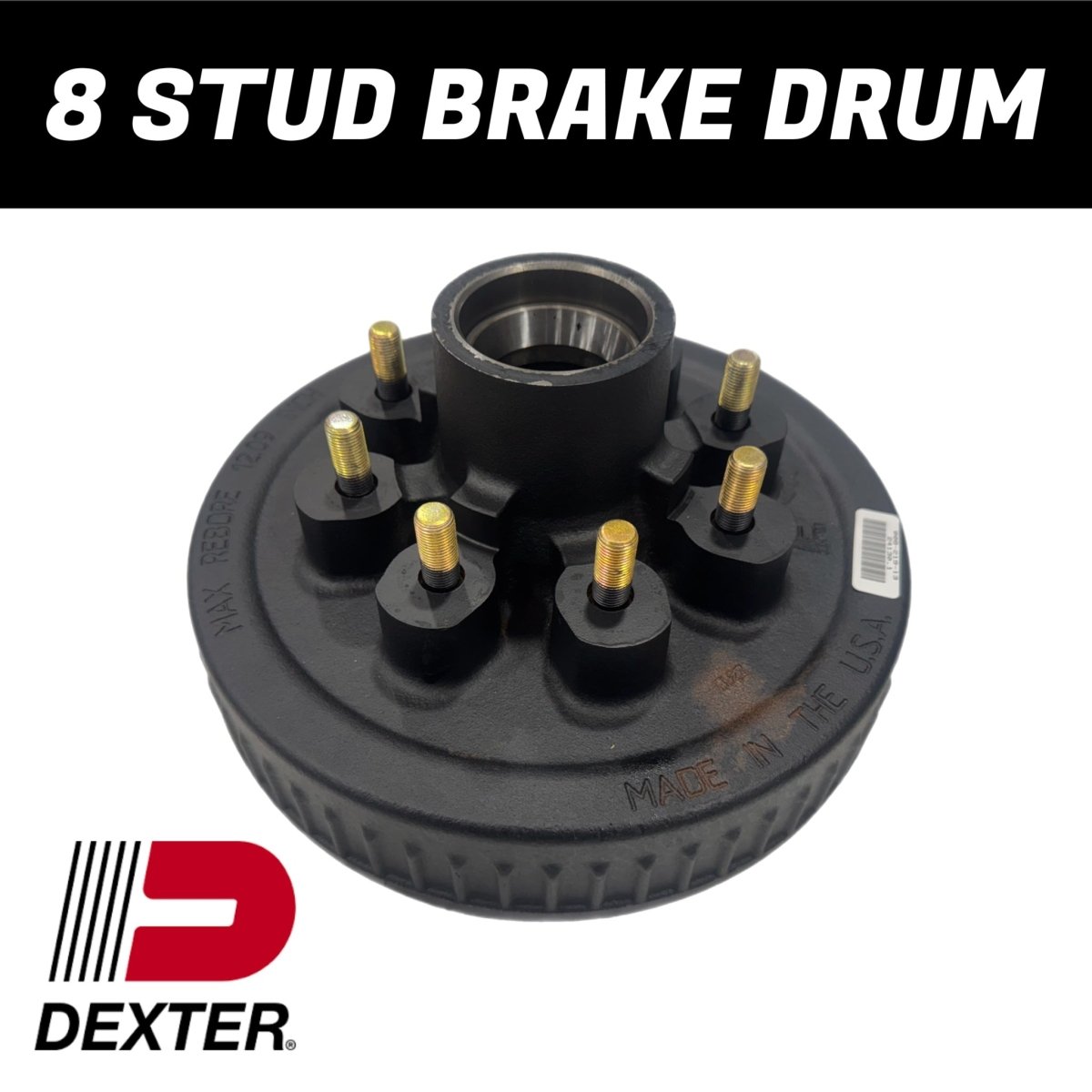

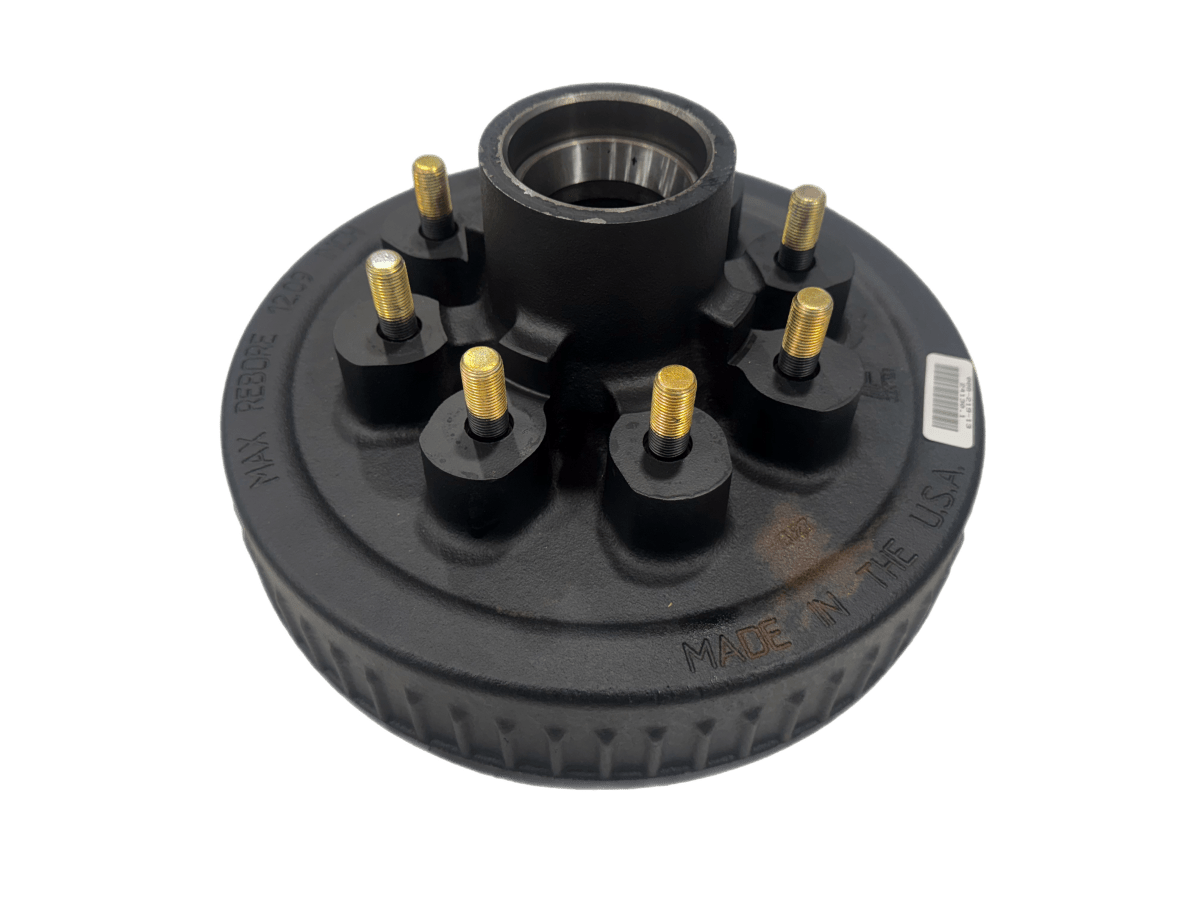

Upgrade your trailer with this genuine Dexter 12″ Hub & Drum Kit, featuring an 8‑bolt, 6½″ bolt pattern. Designed for 7,200 lb axles, this kit includes all bearings and essential hardware—making installation fast, clean, and reliable.
Key Features
-
Complete kit: Includes inner bearing (25580), outer bearing (14125A), races, grease seal (2.125" ID), studs/nuts (9/16"-18), and 2.72" OD dust cap
-
Heavy-duty rating: Supports up to 3,500 lb per drum, suitable for electric or hydraulic brake systems on standard #42 spindles
-
High-strength, pre-assembled design: Durable hub-drum assembly, often used for marine or general use, simplifies rebuilds
-
Standard hardware included: Everything you need—just align, torque, and you’re ready to roll.
Specifications
| Item | Specification |
|---|---|
| Drum Size | 12″ diameter, 2″ wide |
| Bolt Pattern | 8 studs on 6½″ (165.1 mm) |
| Axle Rating | Up to 7,200 lb |
| Bearings Included | Inner: 25580 (1.75″), Outer: 14125A (1.25″) |
| Seal Dimension | 2.125″ ID grease seal |
| Hardware | Includes studs, nuts, dust cap |
Why Choose This Kit?
-
Eliminates guesswork—suitable parts for a swift fix.
-
Reliable Dexter build ensures brake performance and longevity.
-
Fitment flexibility—works with both electric and hydraulic brakes.
