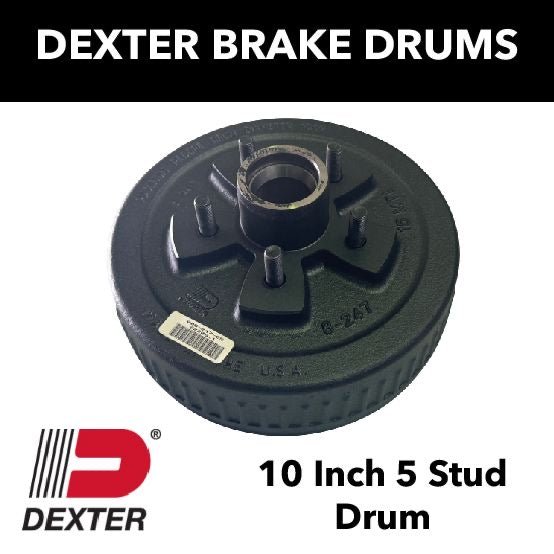

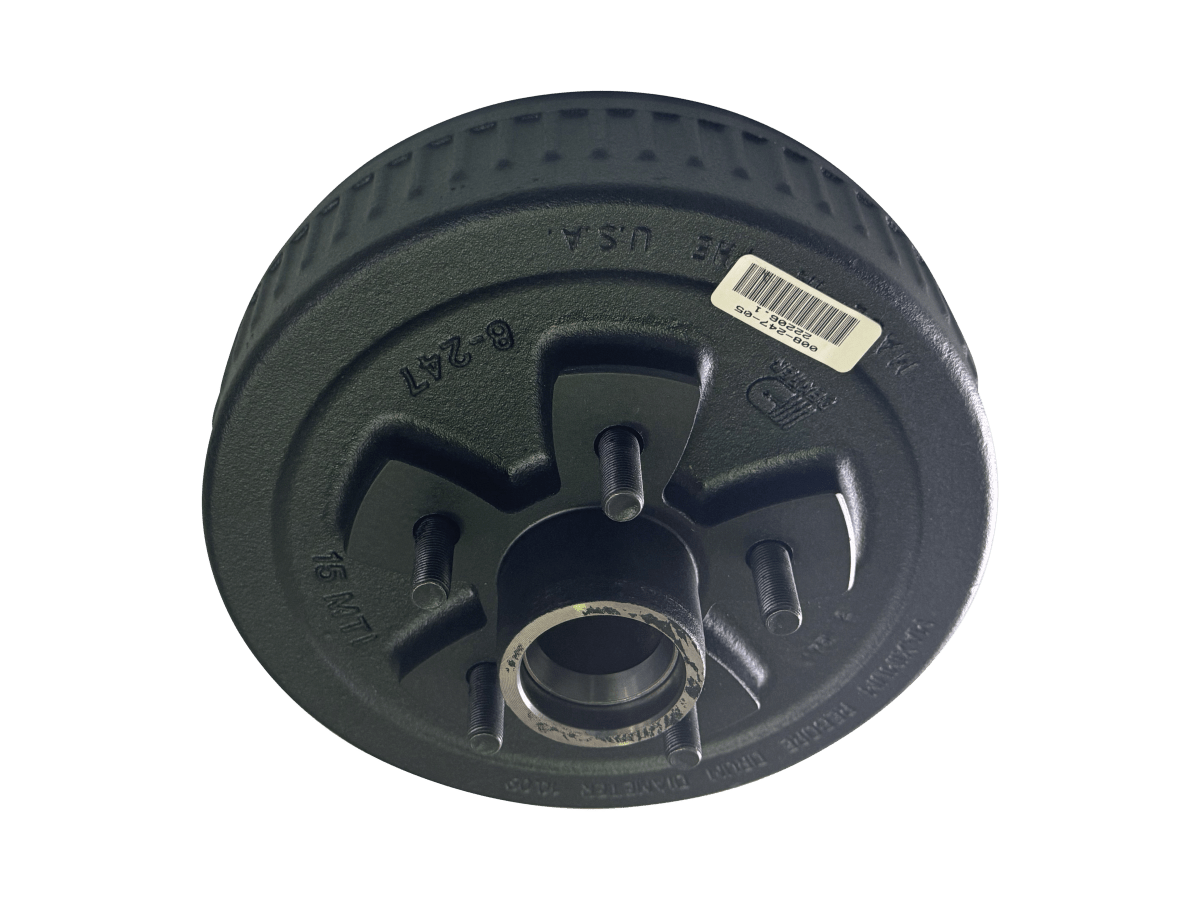

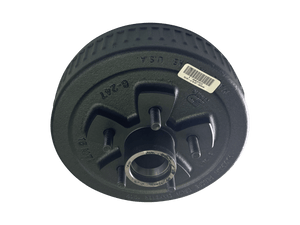

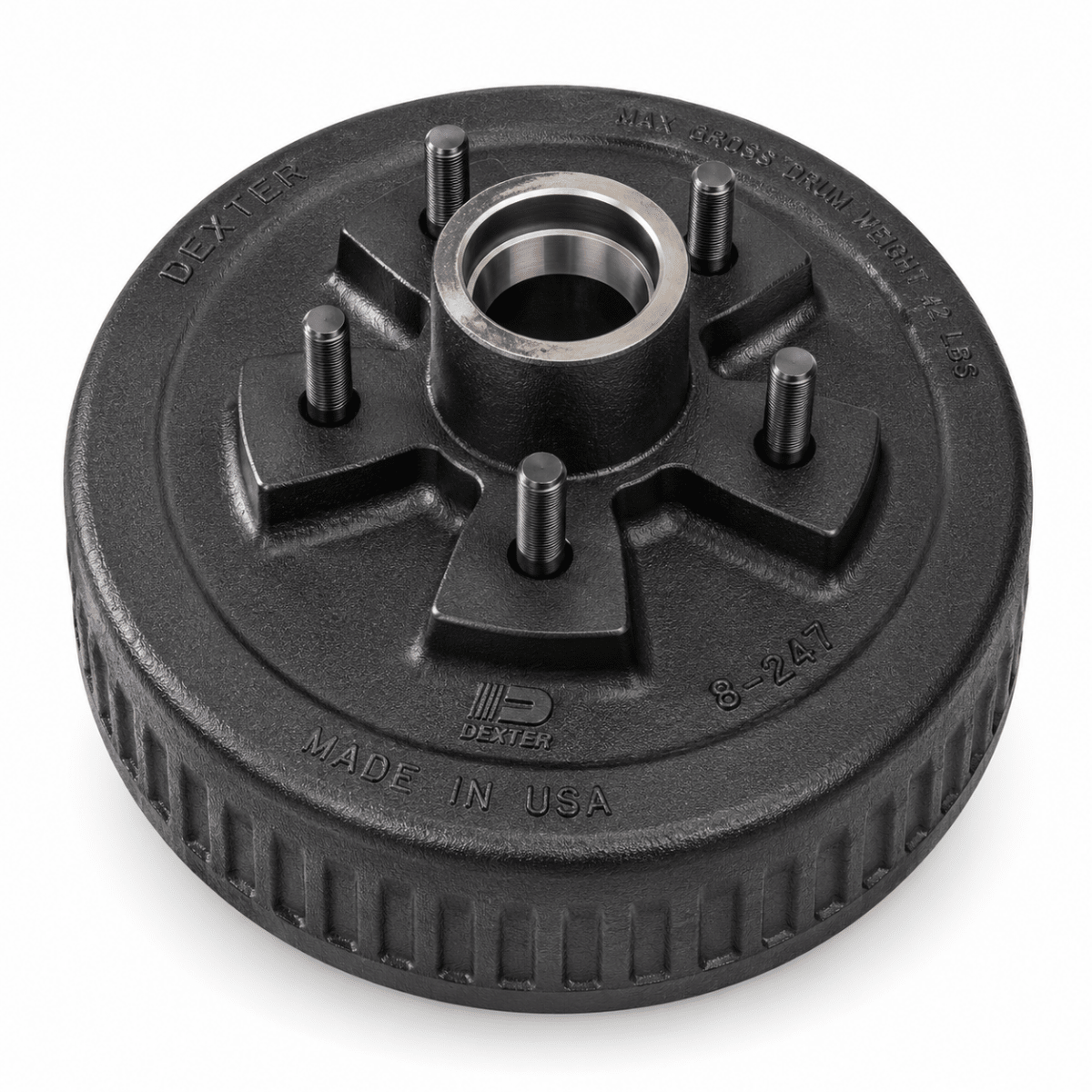

Dexter 10″ Electric Brake Hub Drum – Ford 5 × 114.3 mm (Studded & Cupped)

Overview

The Dexter 10″ Hub Drum is a genuine Dexter component designed for use with 10″ × 2¼″ electric drum brakes. This version comes pre-studded and cupped, ready for bearing and seal installation, and suits the popular Ford 5 × 114.3 mm stud pattern.

Key Features

• Genuine Dexter Product – Reliable performance and perfect fit

• Size: 10″ × 2¼″ brake drum

• Stud Pattern: Ford 5 × 114.3 mm PCD

• Pre-Installed Studs – Eliminates the need for pressing in wheel studs

• Pre-Cupped – Bearing cups already fitted for faster installation

• Durable Cast Iron Construction – Long service life and excellent braking performance

• Compatible with Dexter Electric Brakes – Designed for standard 10″ electric brake assemblies

Applications

Ideal for caravans, boat trailers, and utility trailers fitted with Dexter 10″ electric drum brakes and Ford 5 × 114.3 mm stud pattern wheels.

DEXTER 10" Hub-Drum Kit - 5 Stud (FORD)

• INSIDE DIAMETER: 10” x 2-1/4”
• NUMBER OF STUDS: 5
• BEARING INNER: L68149
• BEARING OUTER: L44649
• BOLT CIRCLE: 4-1/2”

Includes:

• DEXTER 10” Hub-Drum Kit - 5 Stud (Ford)
