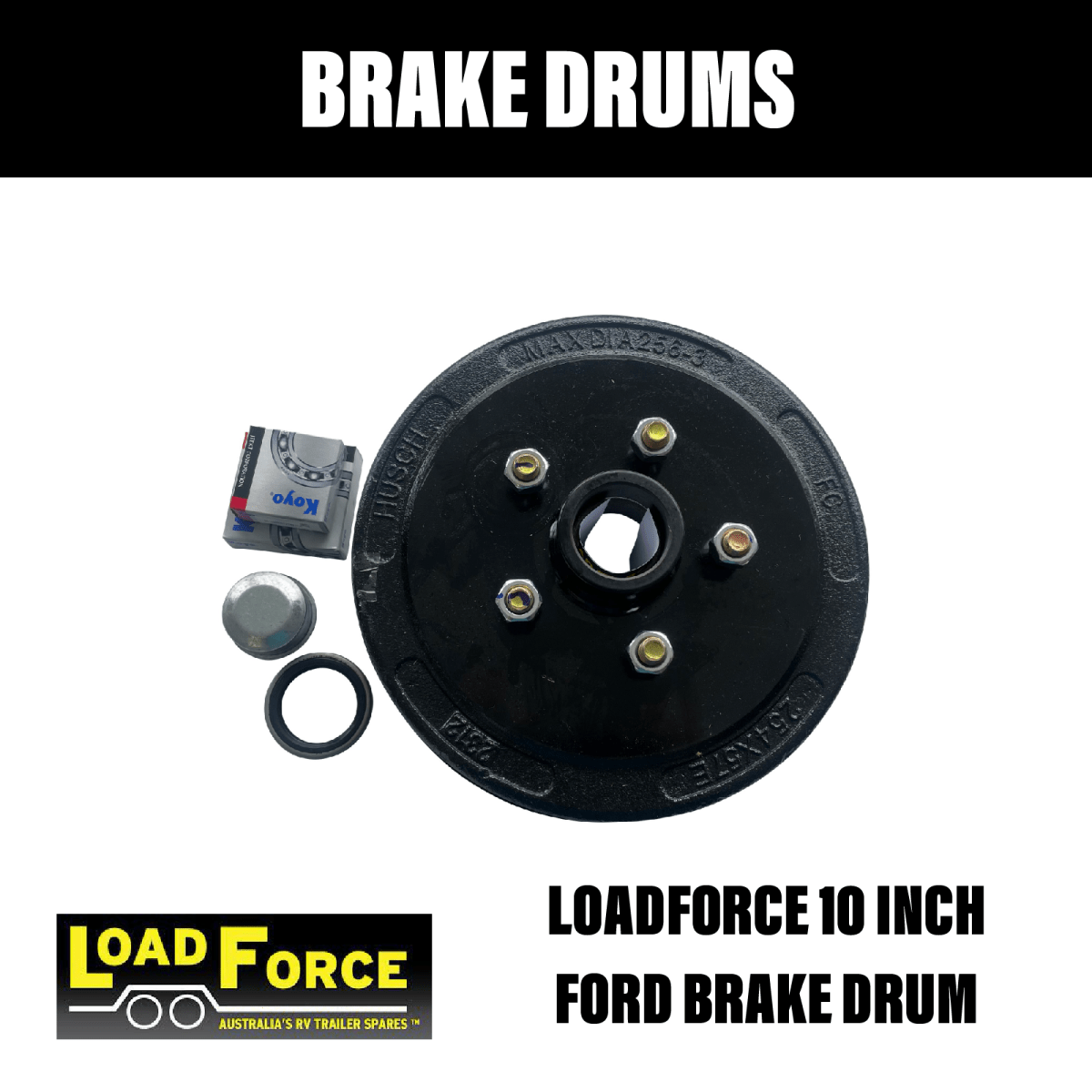

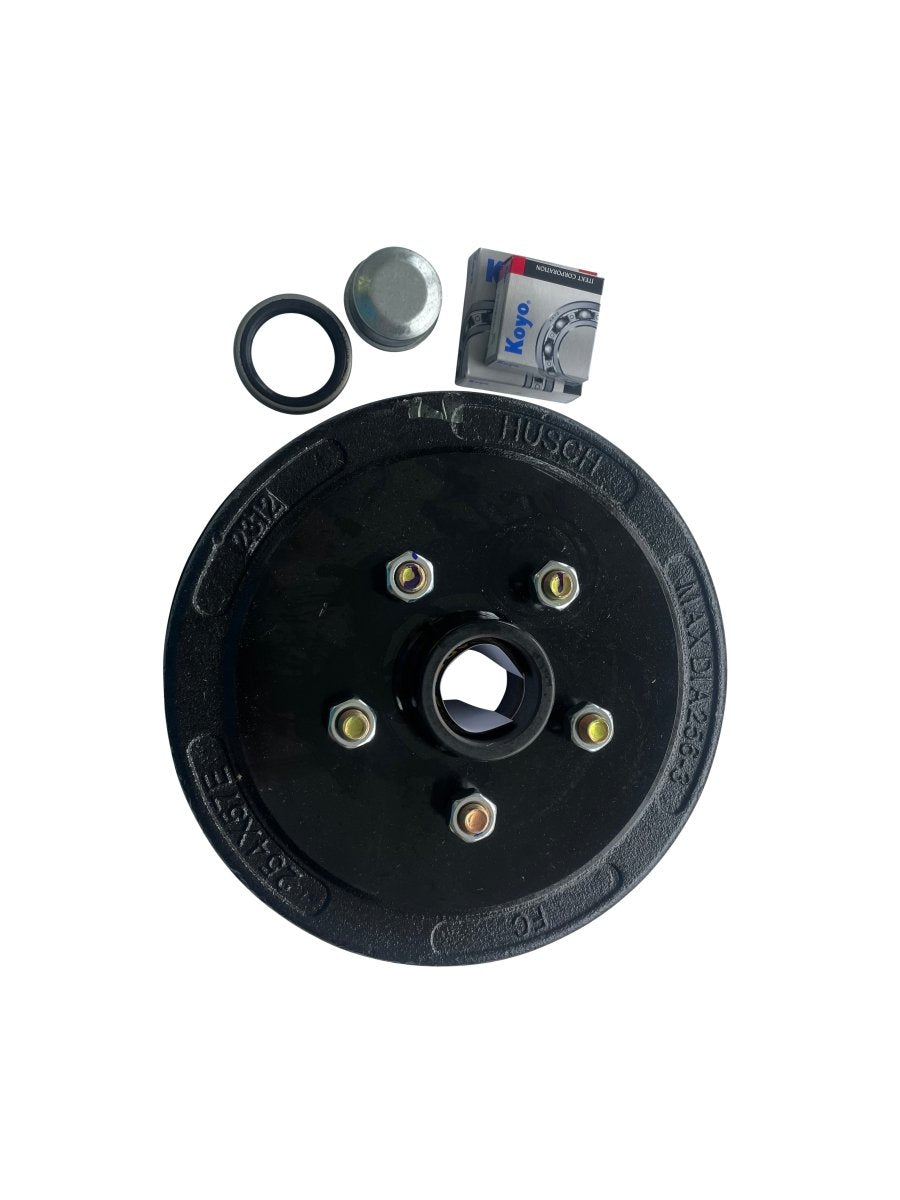

LoadForce 10″ × 2.25″ Hub Drum – Ford 5-Stud with Slimline Bearings

Overview

The LoadForce 10″ × 2.25″ Hub Drum is a high-quality replacement hub designed for electric or hydraulic drum brakes. Featuring the Ford 5-stud 4.5″ (114.3 mm) PCD and pre-fitted SL (Slimline) Ford bearings, this hub drum is ready for quick installation on caravans, boat trailers, and general-purpose trailers.

Key Features

• 10″ × 2.25″ Drum Size – Suits standard 10-inch electric or hydraulic drum brake assemblies

• Ford 5-Stud 4.5″ (114.3 mm) Pattern – Common on many Australian trailers

• Pre-Fitted Slimline Bearings – Inner: LM68149/10, Outer: LM12749/10

• Includes Marine Seal – Protects bearings from dust, water, and contaminants

• Durable Construction – Cast iron drum for reliable braking performance and long service life

• Easy Installation – Pre-assembled bearings and seal reduce setup time

Applications

Ideal for trailers, caravans, and boat trailers fitted with Ford pattern hubs and 10″ drum brake systems. Compatible with AL-KO, Dexter, and similar brake assemblies.
