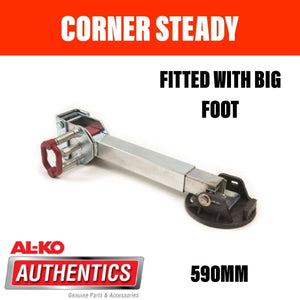

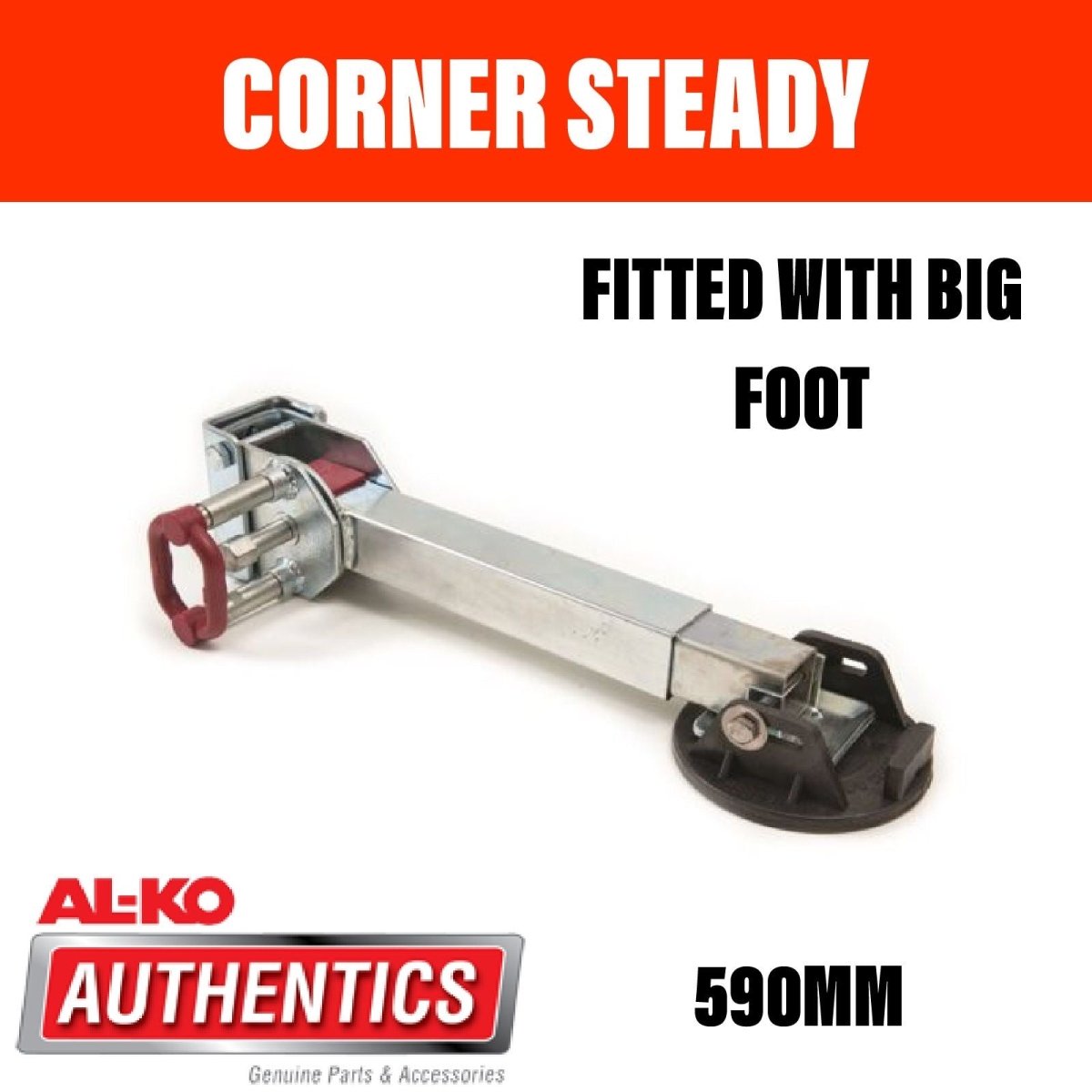

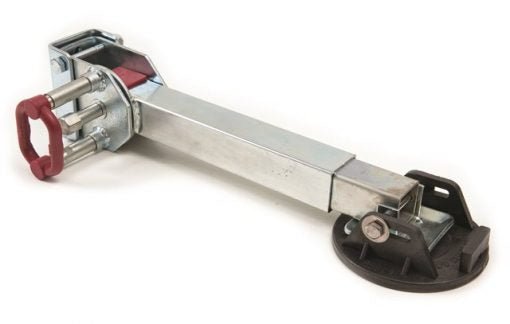

AL‑KO 590 mm Drop‑Down Corner Steady with Big Foot – Zinc-Plated, P/N 654859

Product Overview

The AL‑KO Drop‑Down Corner Steady (654859) is a premium stabiliser leg featuring a flat "Big Foot" base plate that enhances stability on soft or uneven surfaces. Designed for caravans, trailers, and camper setups, it delivers reliable support when parked, and swings neatly into travel position when moving.

Key Specifications & Features

• Closed Length: 410 mm

• Maximum Drop‑Down Height: 590 mm (including Big Foot & bracket)

• Minimum Vertical Height: ~420 mm when angled

• Big Foot Diameter: ~140 mm flat load-bearing pad suitable for soft ground

• Material & Finish: Zinc-plated steel for corrosion resistance

• Crank Mechanism: 17 mm hex wind-down drive with quick-release handle for easy height adjustment

• Mounting: Bolt-on installation to welded chassis bracket (two-bolt 80 mm spacing, leg top section approx. 100 × 65 mm)

• Load Capacity: Suitable for on-road caravans & trailers, not designed as a jack

• Warranty: 12-month manufacturer warranty via R&M Trailer Spares

What’s Included

• One (1) AL‑KO 590 mm corner steady leg with attached zinc-plated Big Foot

• Bolt-on chassis mounting bracket and hardware for installation

Ideal For

Perfect for stabilising caravans, trailers, camper trailers, and tray backs—especially useful on soft surfaces or when working with uneven ground. When folded for travel, it swings horizontally, minimizing interference under chassis.

Warranty & Delivery

• Every unit backed by a 12‑month manufacturer warranty

• Fast dispatch from Queensland; Australia-wide delivery calculated at checkout
