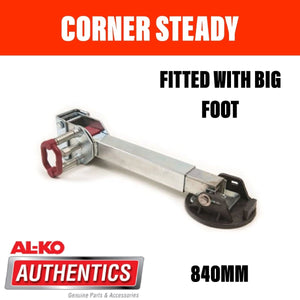

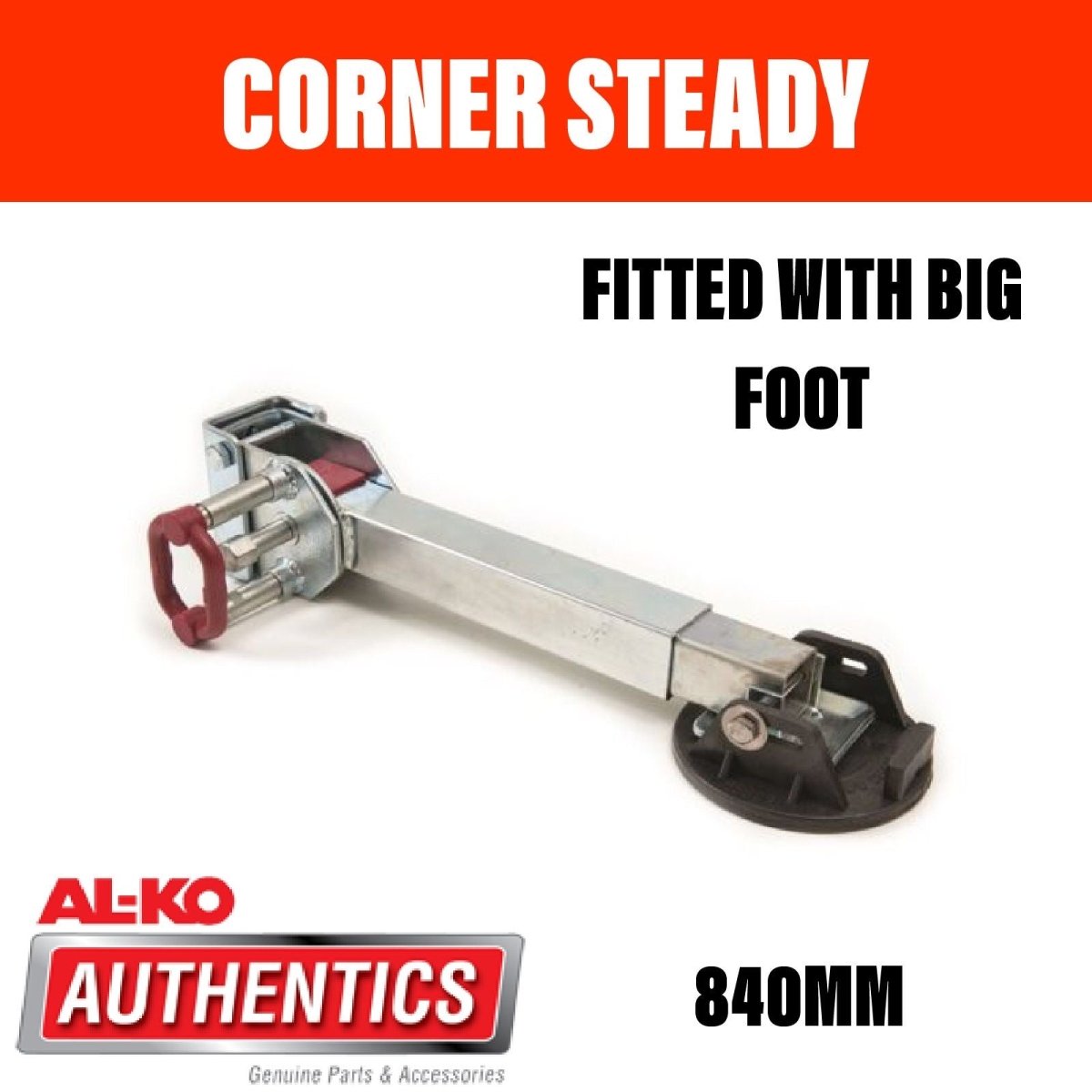

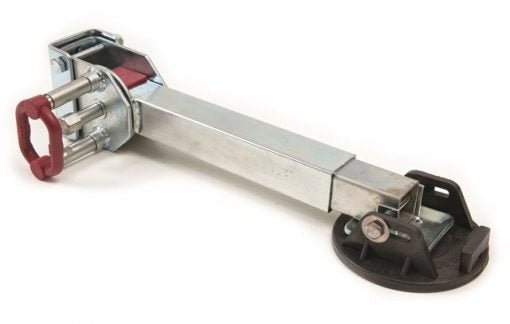

AL‑KO 840 mm Drop‑Down Corner Steady with Big Foot – Zinc‑Plated Steel - P/N 654884

Product Overview

Trust the AL‑KO Corner Steady 840 mm (P/N 654884) to deliver unmatched stability for your caravan, trailer, or off‑road RV. This zinc‑plated drop‑down leg features AL‑KO’s signature Big Foot base plate which prevents sinking on soft ground, and offers smooth swing-away deployment for secure, vertical support.

Features & Technical Specifications

• Closed Length: 610 mm

• Maximum Drop-Down Height: 840 mm (including Big Foot & bracket)

• Minimum Vertical Height: 610 mm Stowed Height: 125 mm

• Surface Finish: Zinc‑plated steel—durable & corrosion‑resistant

• Drive Mechanism: 17 mm (or 19 mm in some versions) hex gear drive with twin-locking swing pin and quick‑release handle for smooth action

• Mounting: Bolt-on to chassis with 80 mm hole spacing; bracket top measures approximately 100 × 65 mm

• Load Note: Designed solely for stabiliser use—not intended for vehicle lifting

• Warranty: 12-month manufacturer warranty for peace of mind

What’s Included

• One (1) AL‑KO 840 mm drop‑down corner leg with integrated Big Foot footpad

• Chassis mounting bracket + bolt kit for easy installation

Ideal Applications

Perfect for high-clearance trailers, off-road caravans, camper trailers, and tray-back vehicles where a reliable, vertical support leg is required—especially on uneven or soft ground. Easily integrates with AL‑KO chassis brackets for quick install and removal.

Warranty & Shipping

• Supplied with a 12‑month manufacturer warranty

• Fast dispatch from Queensland, Australia‑wide delivery cost will be calculated at checkout
