Overview

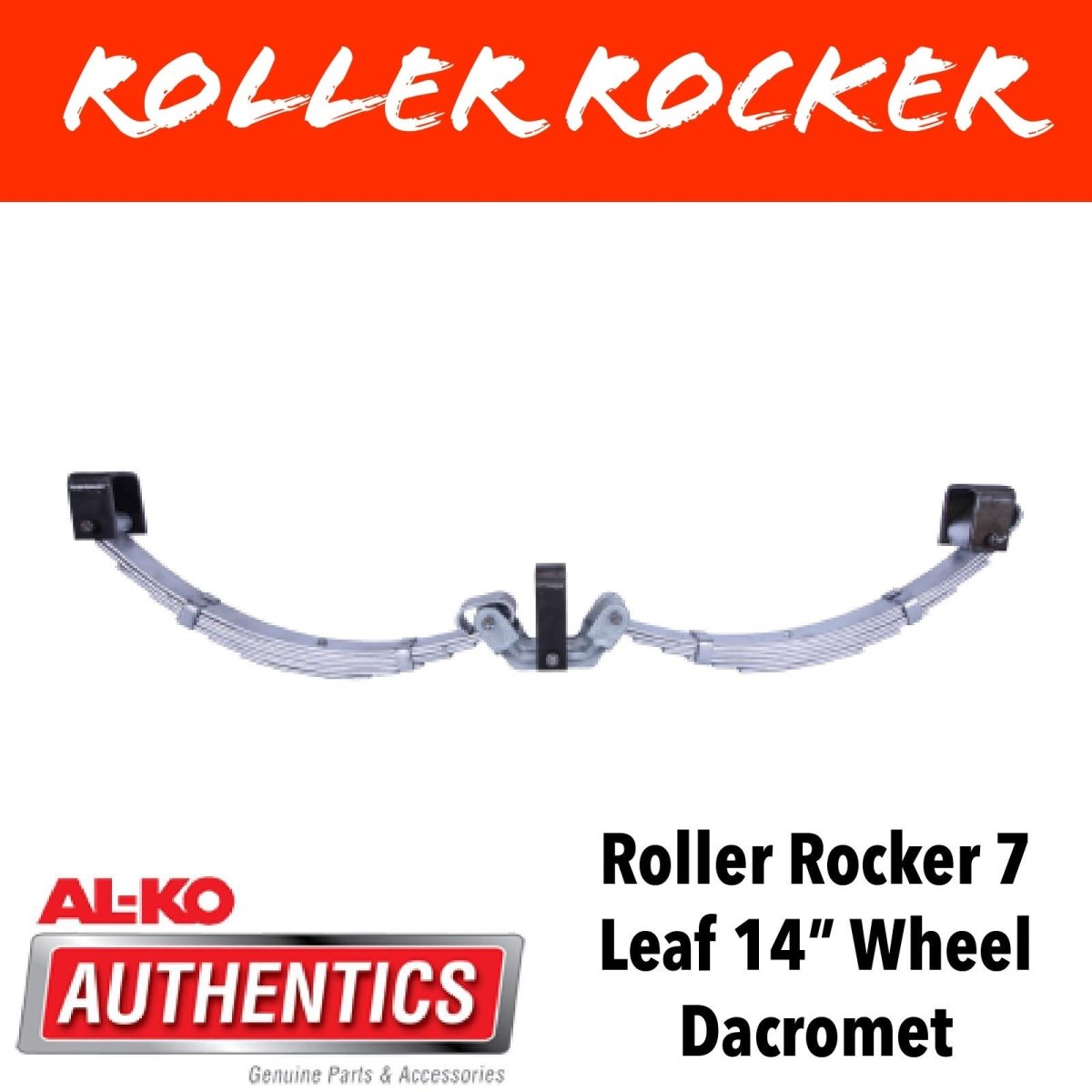

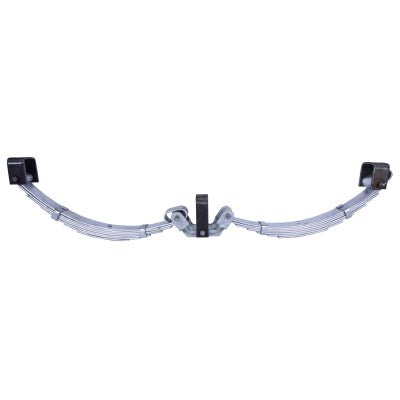

Genuine AL‑KO DACROMET-coated 7‑leaf roller rocker spring designed for tandem trailers with 14″ wheels. Each unit is side-specific—choose LHS or RHS (P/N 576471D). Note: sold per side, not as a pair
Key Features
-
✅ 7‑leaf build and 60 mm width for heavy-duty load performance
-
✅ DACROMET finish for superior corrosion protection in marine or coastal use
-
✅ Roller rocker suspension system optimised for smoother towing dynamics
-
✅ Side-specific variants—LHS or RHS selection required
-
✅ Sold individually to allow customised configuration
Specifications
| Feature | Details |
|---|---|
| Spring Width | 60 mm |
| Leaf Count | 7 |
| Finish | DACROMET anti-corrosion |
| Compatible Wheel Size | 14″ |
| Load Capacity (Pair) | 1,300–1,500 kg |
| Load Capacity (Per Spring) | ~650–750 kg |
| Part Number | 576471D (both sides) |

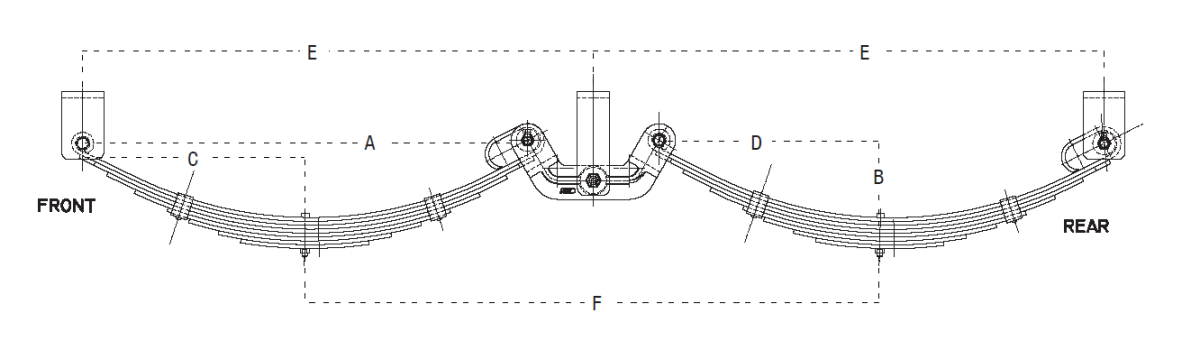

| Dimensions (A–F)* | A 687 mm, B 117 mm, C 396 mm, D 291 mm, E 787 mm, F 785 mm |
*Dimensions per AL‑KO spec sheet for consistency
Included in Package
-
Two 7‑leaf springs (select LHS or RHS)
-
Centre rocker pivot bracket
-
Two steel rollers
-
Spring mounts: front, centre, and rear
-
Five mounting bolts
⚠️ Reminder: Springs sold per side. For a full tandem axle setup, you must select one LHS and one RHS spring assembly.
