Overview

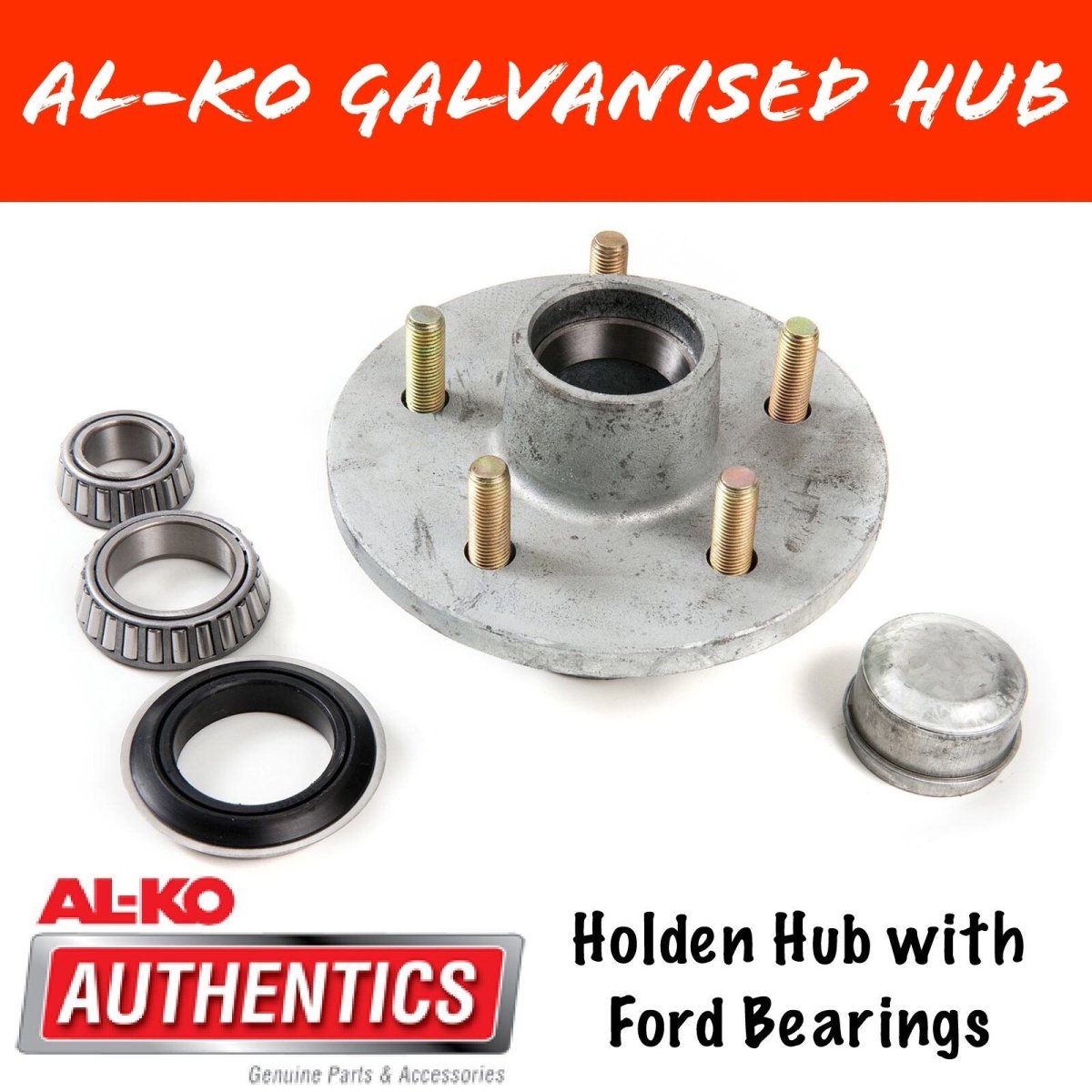

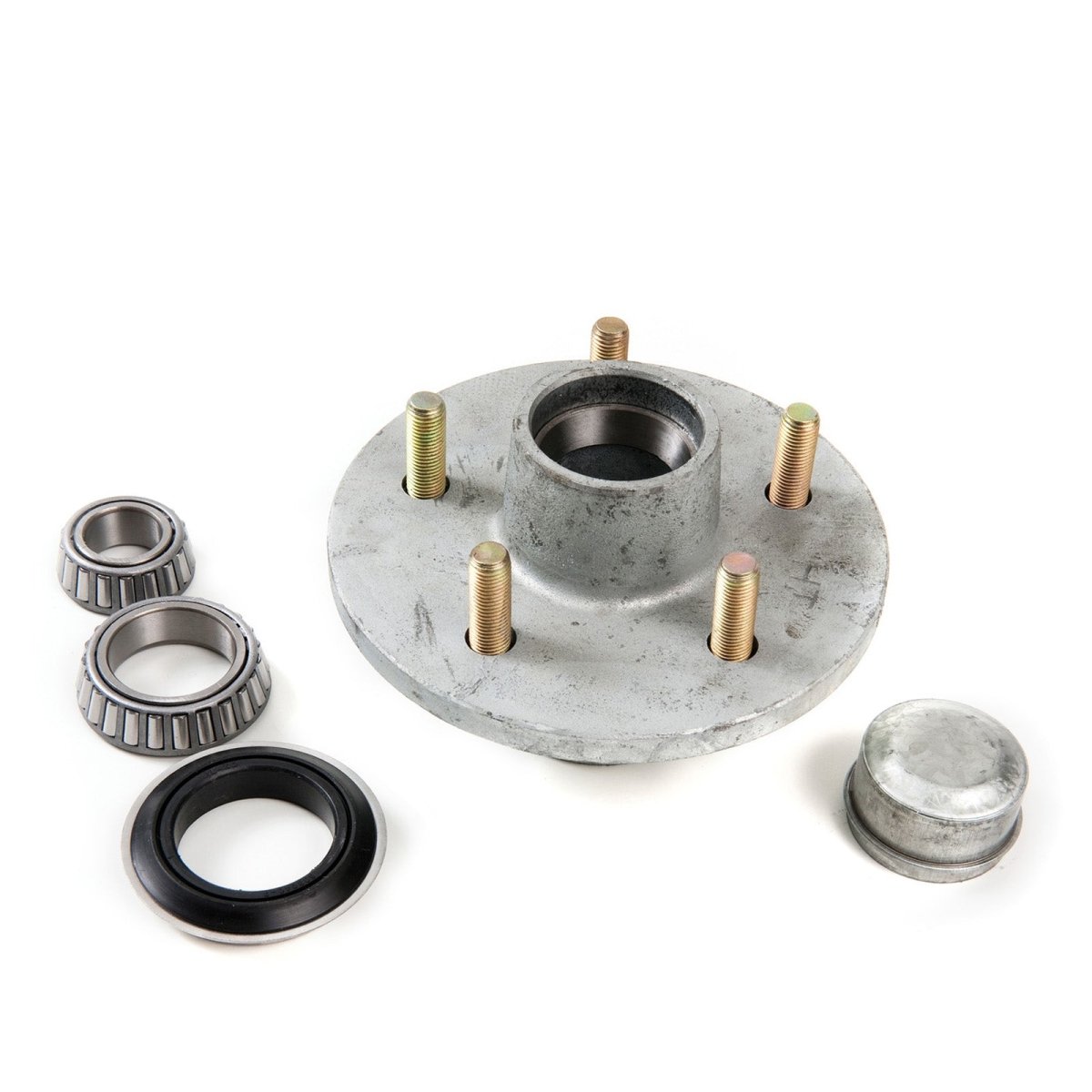

The AL‑KO 441160BX is a 6″ galvanised trailer hub with the HT Holden stud pattern (5×4.25″ / 5×107.95 mm), pre-fitted with Ford wheel bearings for heavier load capacity. Designed for unbraked (lazy) axles, this marine-ready hub includes inner and outer bearings, a marine seal, grease cap, and wheel nuts. It’s ideal for boat trailers, caravans, and general trailer use where HT wheels are required but upgraded bearing capacity is preferred.
What’s Included
-
1 × 6″ DACROMET galvanised hub
-
5 × ½″ UNF studs and nuts
-
Inner bearing: LM68149
-
Outer bearing: LM12749
-
Marine-grade grease seal
-
Dust cap
⚙️ Technical Specifications
| Specification | Details |
|---|---|
| Part Number | 441160BX |
| Hub Type | 6″ Galvanised lazy hub |
| Stud Pattern | 5 × 4.25″ (HT Holden – 107.95 mm PCD) |
| Stud Size | ½″ UNF |
| Inner Bearing | LM68149 (35.00 mm ID) |
| Outer Bearing | LM12749 (22.00 mm ID) |
| Seal Type | Marine (Ford seal compatible) |
| Finish | DACROMET galvanised |
| Included Hardware | Bearings, seal, dust cap, 5 × nuts |
| Load Rating | ~1,600–1,750 kg per pair (Ford bearing rated) |
| Application | Lazy axle – unbraked use |
Applications & Use Cases
-
Ideal for boat trailers, box trailers, camper trailers requiring HT wheels
-
Combines HT Holden wheel fitment with Ford bearing load capacity
-
DACROMET finish provides long-term rust protection in coastal environments
-
Direct replacement for AL‑KO, standard HT Holden-style hubs
