Overview

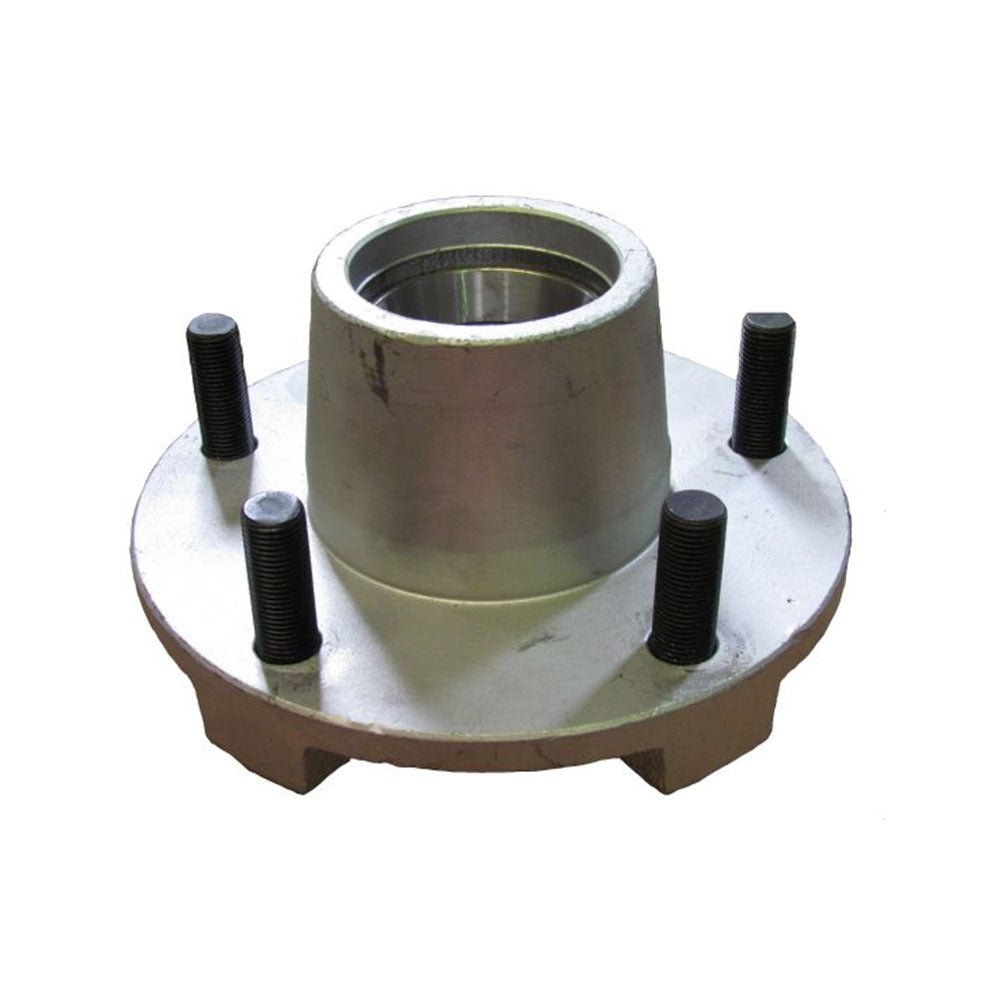

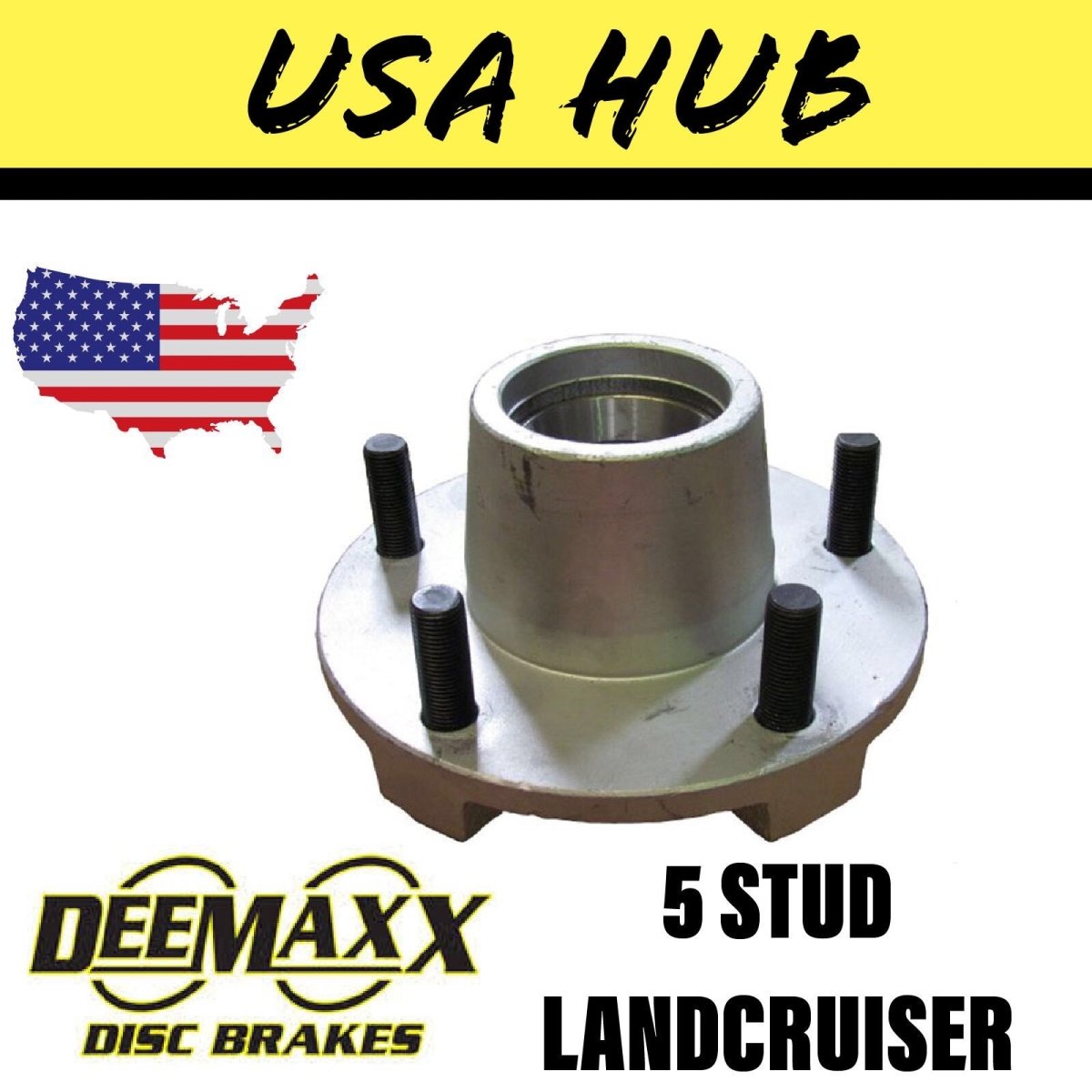

The DeeMaxx DLLC5SD is a precision-fit, 5‑stud trailer hub compatible with Dexter/Kodiak 6,000 lb axles. It uses inner bearing 25580/outer bearing 15123, a 5 × 139.7 mm bolt pattern, and extra-long studs for accommodating top‑hat rotors or slip‑on brake drums. The DACROMET finish provides high-grade marine corrosion resistance suitable for saltwater or humid environments. Bearings and seal are sold separately.
Technical Specifications
| Feature | Specification |
|---|---|
| Part Number | DLLC5SD |
| Capacity | 6,000 lb axles (Dexter/Kodiak style) |
| Bolt Pattern | 5 × 150 mm (5‑stud LandCruiser pattern) |
| Bearings | Inner: 25580; Outer: 15123 |
| Seal | Fits seal 82131 |
| Finish | DACROMET galvanised corrosion guard |
| Stud Length | Extra-long for top‑hat or rotor fitment |
| Bearings & Seal | Not included |
🚀 Applications & Benefits
-
Designed for Dexter 6 K axles and Kodiak equivalents using 25580/15123 bearings
-
Bolt-on compatibility with standard 5-stud LandCruiser pattern wheels
-
Long studs support slip-over brake rotors and top-hat conversions
-
Highly corrosion-resistant DACROMET coating ideal for coastal or marine trailers
-
Premium upgrade for boat trailers, caravans, and heavy towing builds
Why Choose This Hub?
Unlike generic hubs, the DeeMaxx DLLC5SD is engineered specifically to meet the structural tolerances and bearing layouts used in Dexter/Kodiak setups. Its marine-grade finish resists rust and the stud configuration supports modern rotor braking systems. A reliable, high-performance choice for trailer refurbishment.
Installation Notes
-
Confirm your axle uses inner bearing 25580 and outer bearing 15123.
-
Press-fit the hub carefully—do not damage studs.
-
Use grease seal model 82131 and match to proper spindle spacing.
-
Torque wheel nuts to spec and apply marine-quality grease regularly.
