Overview

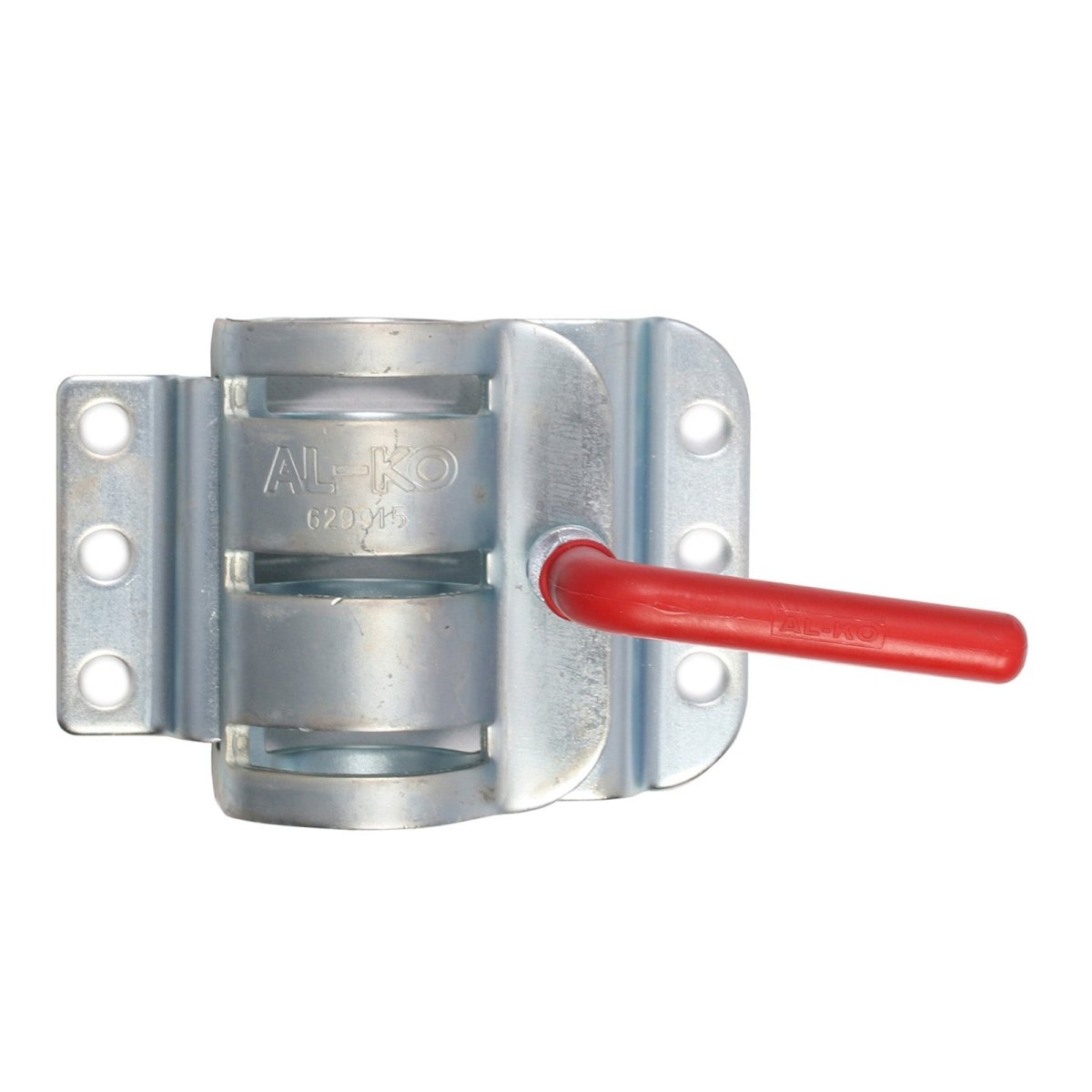

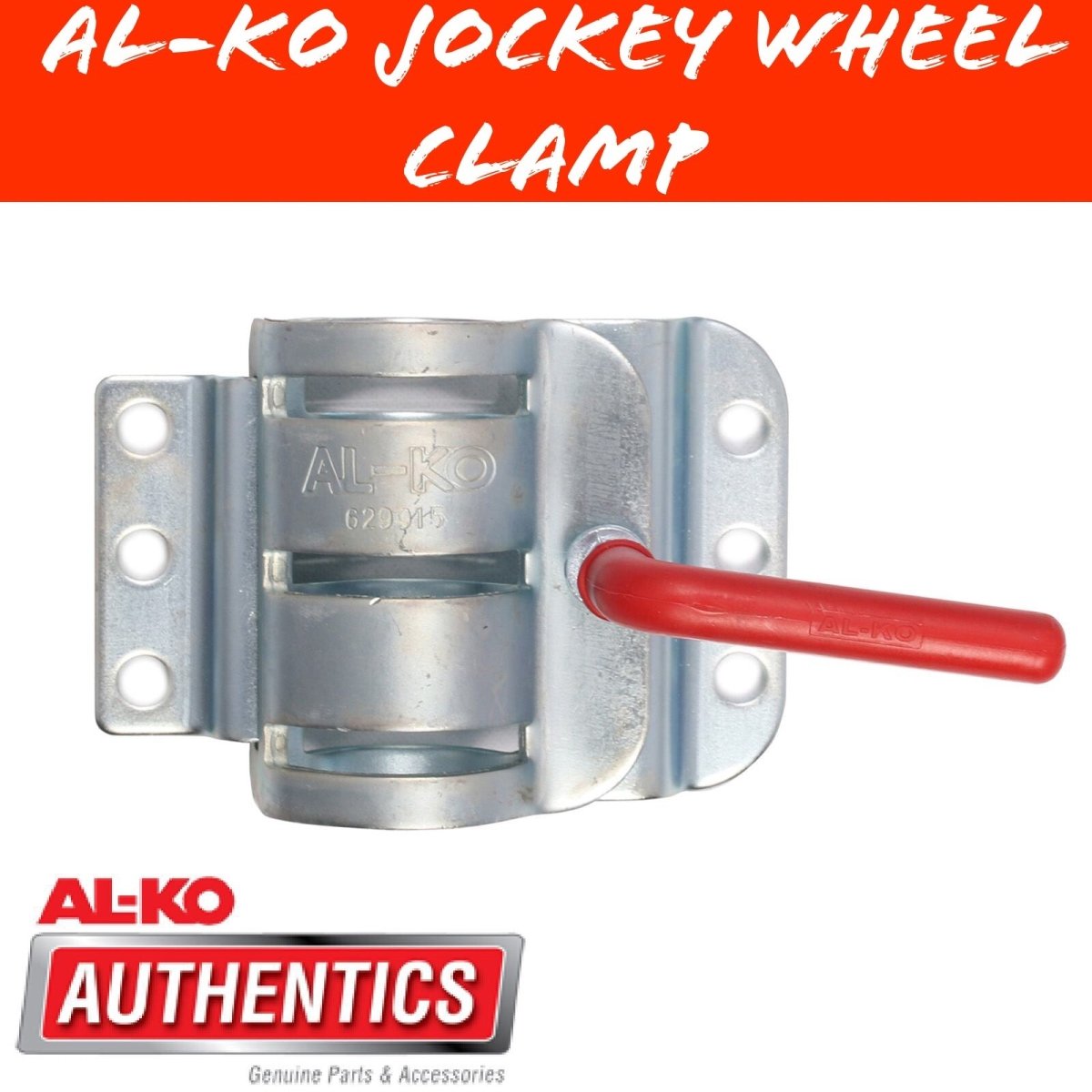

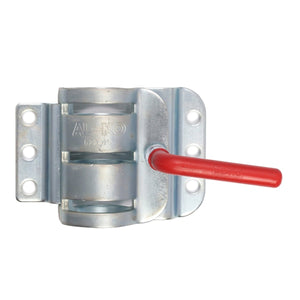

This genuine AL‑KO Premium Extra-Wide Clamp (P/N 629915) is designed for enhanced strength and stability when mounting jockey wheels to a 48 mm tube. Its wider profile offers superior support, increasing the static load capacity of compatible jockey wheels from 400 kg to 500 kg when used on premium wheel models
Built to OEM standards, the clamp features multiple mounting holes and a high-visibility red, soft-touch handle for secure adjustment and optimal fit
✅ Key Features
-
Compatible with 48 mm jockey wheel tubes (clamp-type models)
-
Extra-wide profile improves clamp pressure and load tolerance — elevates static rating up to 500 kg when paired with Premium wheels
-
Multiple mounting options: supports 50 mm U‑bolt, weld-on, or standard ½″ bolts with hole spacing of approx. 35 mm & 65 mm centres, 150 mm apart
-
Red soft-touch steel handle — high visibility and ergonomic operation
-
Durable zinc-plated finish — protects against corrosion in outdoor conditions
-
1-year manufacturer warranty included
📐 Specifications
| Feature | Specification |
|---|---|
| Part Number | 629915 |
| Tube Compatibility | 48 mm outer diameter |
| Load Capacity | Up to 500 kg static (with Premium jockey wheel) |
| Mounting Spacing | 35 mm, 65 mm centres, total 150 mm span |
| Fastener Options | 50 mm U-bolt, ½″ bolts, or weld-on |
| Handle | 90° steel screw-in with red soft-touch grip |
| Finish | Zinc-plated steel |
| Weight | Approx. 1.45 kg |
