Overview

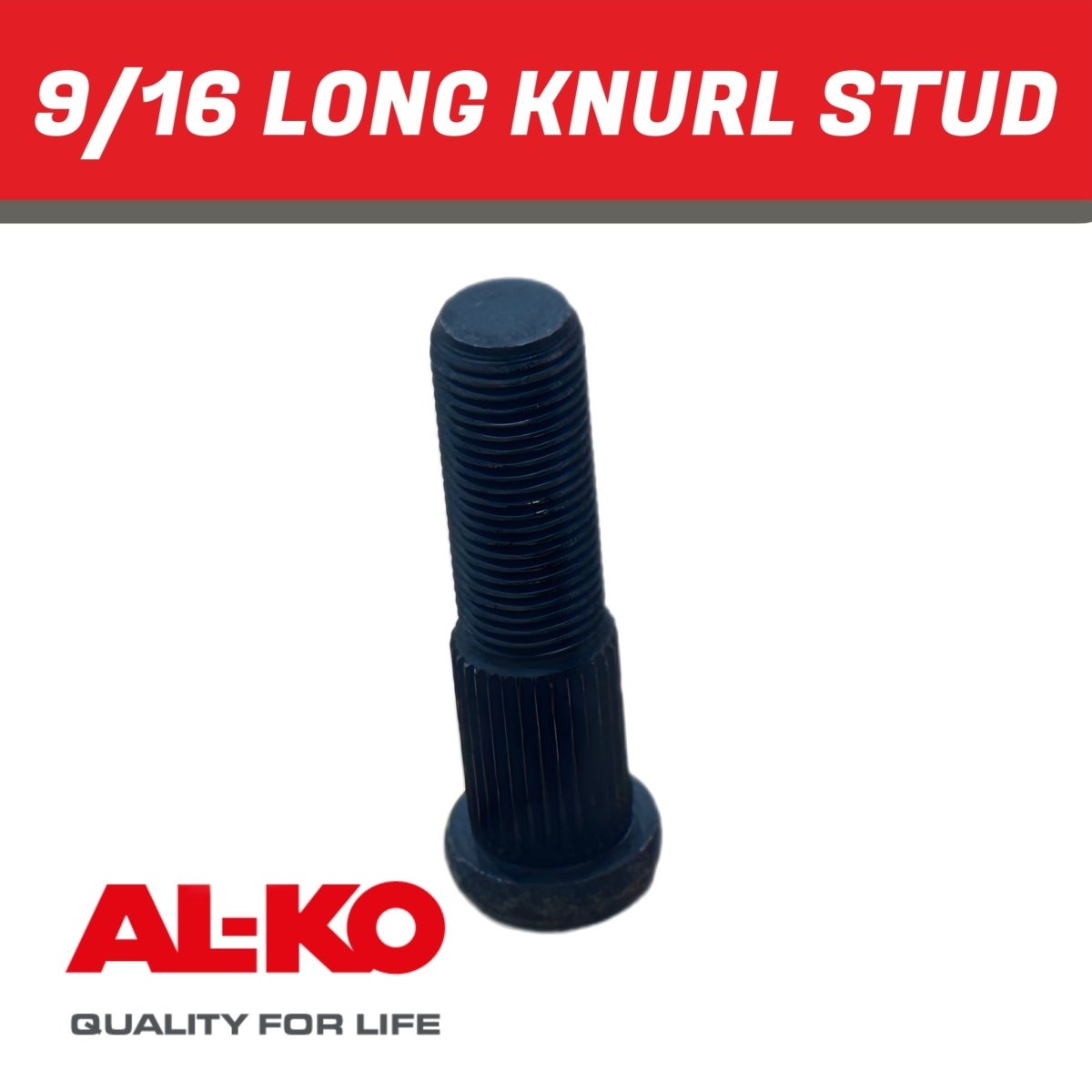

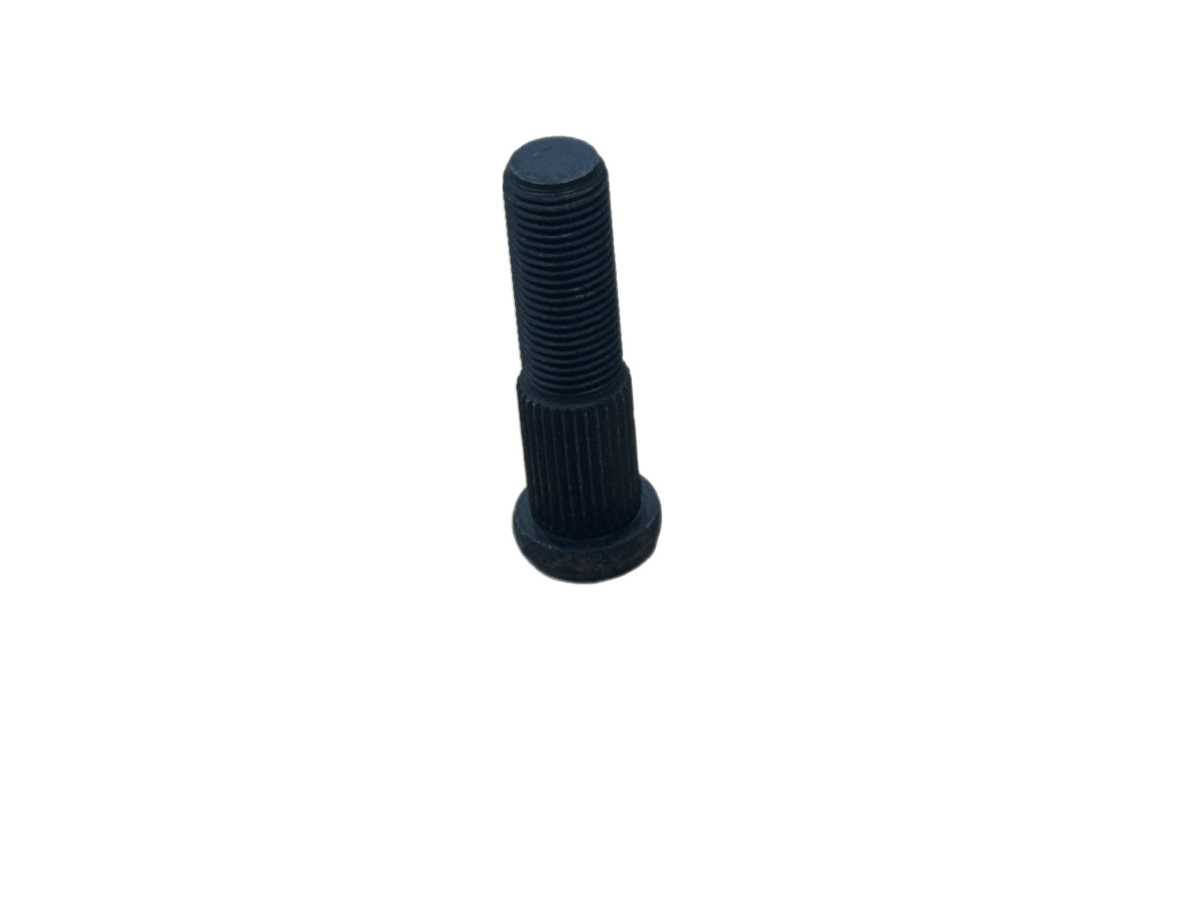

Need replacement wheel studs for your trailer? This AL‑KO 9/16″ UNF Wheel Stud with a long knurl is perfect for 5‑stud LandCruiser-pattern hubs (5 × 150 mm PCD). With a secured, press-fit design, this stud prevents rotation under load and ensures reliable wheel retention.
Key Specifications
| Feature | Details |
|---|---|
| Thread | 9/16″ UNF |
| Length | ≈ 57 mm under head |
| Knurl | ≈ 22 mm long, 15.5 mm dia |
| Applications | 5‑stud LandCruiser trailer hubs |
Why It Matters
The knurled section firmly locks into the hub assembly, preventing unwanted stud rotation — crucial for safety and durability. Long‑knurl studs provide a more robust fit compared to short variants, especially when hub clearance is generous.
Common Use
Ideal replacement for wear or corrosion issues on existing studs, or when upgrading to UNC 9/16″ hardware for compatibility with larger wheels or nuts.
Included
-
1 × AL‑KO 9/16″ UNF Long Knurl Wheel Stud
-
Note: Nuts not included.
