Overview

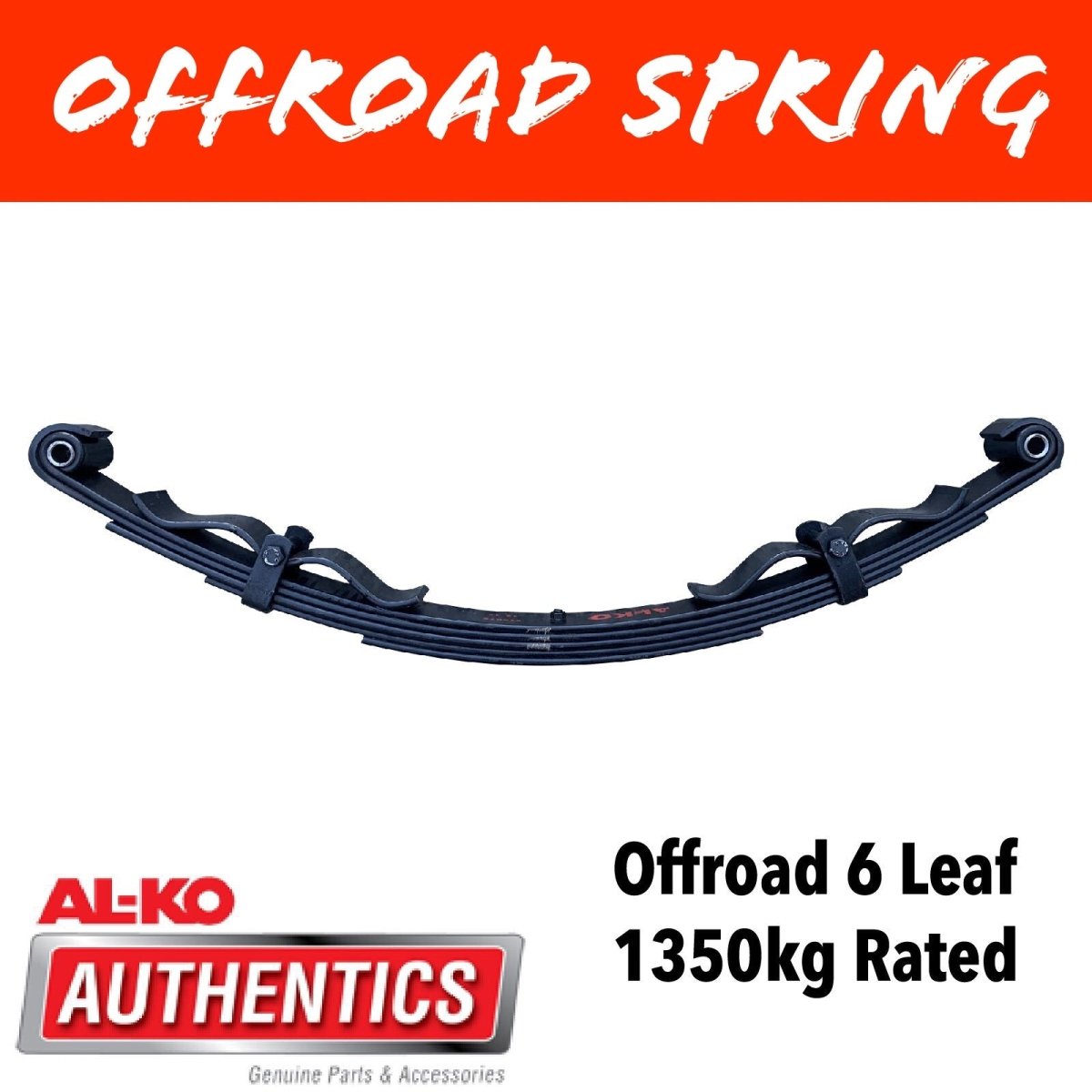

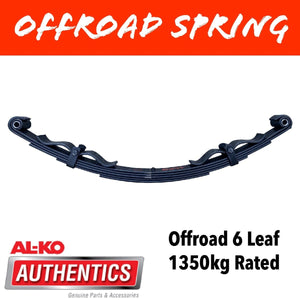

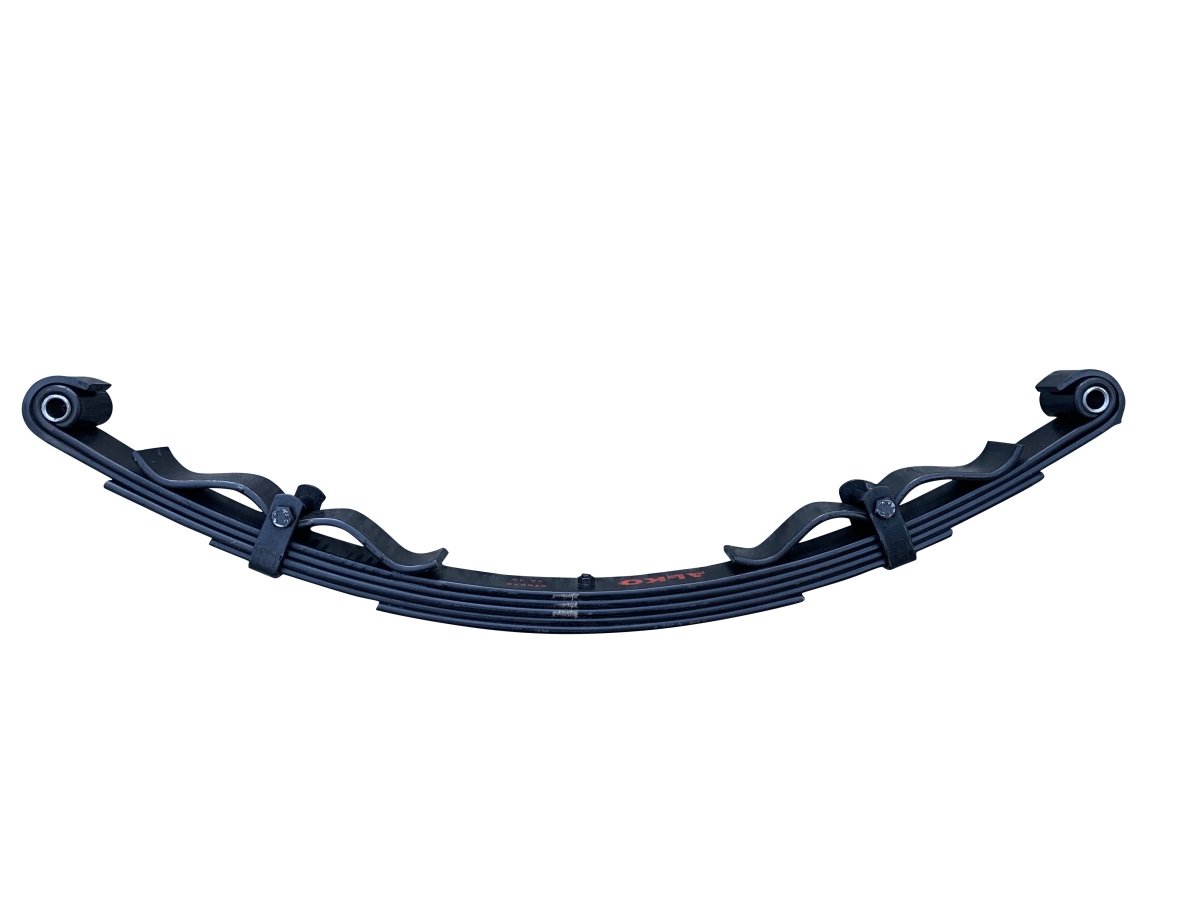

Designed for rugged trailer and caravan applications, the AL‑KO Outback Rebound 6‑Leaf Shackle-Eye Spring delivers dependable off-road suspension. Rated at 1,350 kg per tandem pair, it features 60 mm-wide leaves, robust steel bushes, and greaseable 16 mm shackle bolts—ensuring durability in tough conditions.
This spring includes all essential hardware—mounting plates and bolts—for easy installation.
🔧 Key Features
-
✅ 6‑leaf heavy‑duty construction (60 mm wide)
-
✅ Rated at 1,350 kg per pair
-
✅ Includes mounting plates & M16 greaseable bolts
-
✅ Shackle-eye style with steel bush wrap-around
-
✅ Durable black finish, ideal for harsh and off-road environments
📋 Specifications
| Feature | Details |
|---|---|
| Part Number | 536076 |
| Leaf Count | 6 |
| Load Rating (Pair) | ~1,350 kg |
| Leaf Width | 60 mm |
| Eye-to-Eye Length (B) | ~841 mm |
| Installed Length (A) | ~865 mm |
| Free Camber (C) | ~158 mm |
| Bolt Distance (D) | ~420 mm |
| Shackle Bolt Diameter | M16 greaseable |
| Bush Dimensions | 5/8″ × 7/8″ × 60 mm |
| Finish | Black |
| Included | Shackle spring, plates & bolts |
