Overview

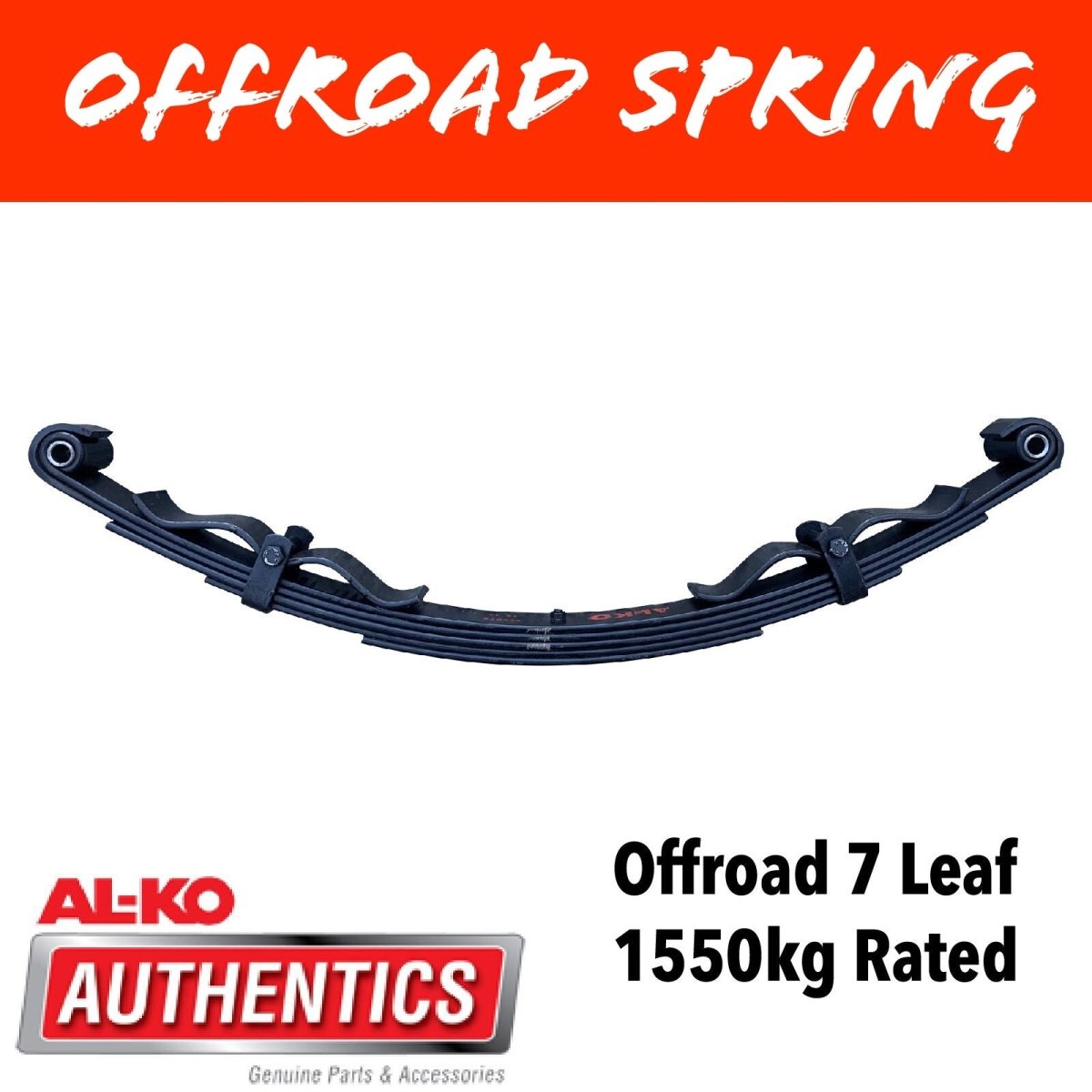

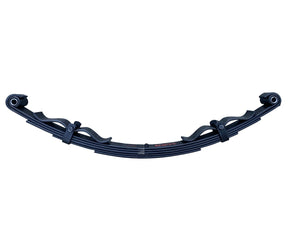

Built for tough off-road and caravan towing conditions, the AL‑KO Outback Rebound 7‑Leaf Shackle Spring (P/N 536077) delivers dependable suspension performance. Rated at 1,550 kg per tandem pair, it’s engineered with 60 mm-wide leaf steel and includes heavy-duty bushings for shock resilience under load.
This spring comes fully assembled with mounting plates and M16 greaseable shackle bolts, ready for easy installation.
🔧 Key Features
-
✅ 7‑leaf design rated at 1,550 kg per pair
-
✅ 60 mm width with tough steel bush wrap for strength
-
✅ Shackle‑eye style spring with included brackets and bolts
-
✅ Black finish, rugged and weatherproof
-
✅ Easy installation—spring includes plates and M16 greaseable bolts
📋 Specifications
| Feature | Details |
|---|---|
| Part Number | 536077 |
| Leaf Count | 7 |
| Rating (Per Pair) | ~1,550 kg |
| Leaf Width | 60 mm |

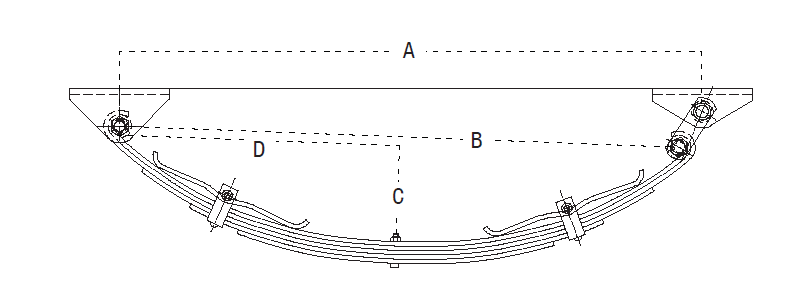

| Eye-to-Eye Length (B) | ~841 mm |
| Installed Length (A) | ~865 mm |
| Free Camber (C) | ~158 mm |
| Bolt Center Distance (D) | ~420 mm |
| Shackle Bolt Diameter | M16 greaseable |
| Spring Bush Dimensions | 5/8″ × 7/8″ × 60 mm |
| Finish | Black |
| Included | Spring, mounting plates, M16 bolts & nyloc nuts |
