Overview

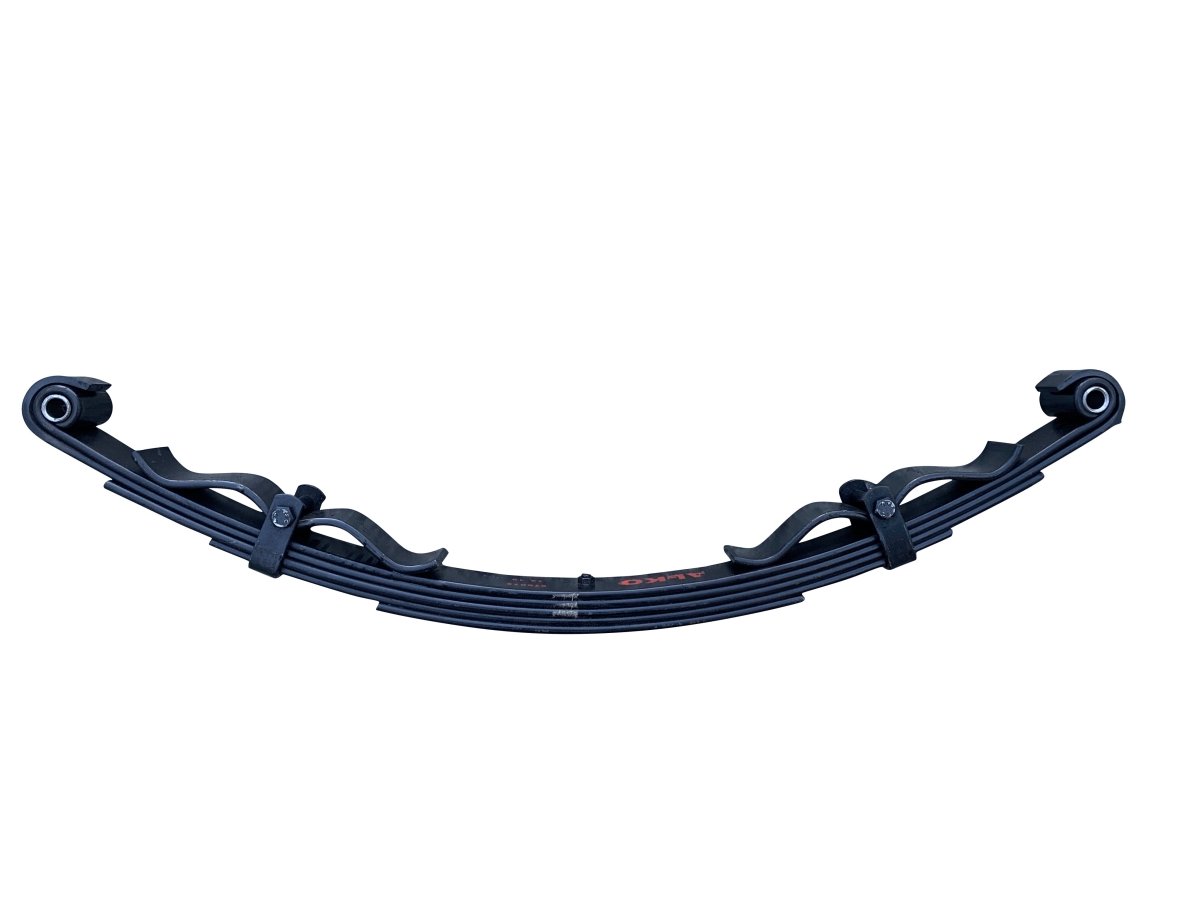

This AL‑KO Outback Rebound 8‑Leaf Shackle Spring (P/N 536078) is engineered for off‑road trailers and caravans. Each pair is rated at 1,750 kg per tandem pair, built from 60 mm‑wide leaves, with smartly designed shackle‑eye mounting for strength and longevity under harsh conditions.
Comes complete with mounting brackets and M16 greaseable shackle bolts, ready for installation.
🔧 Key Features
-
8‑leaf heavy‑duty design, 60 mm leaf width
-
Rated for 1,750 kg per pair
-
Shackle‑eye style with included mounting hardware (M16 bolts, brackets)
-
Rugged black finish, suited for off‑road use
-
Pre‑assembled—ready to fit
📋 Specifications
| Feature | Details |
|---|---|
| Part Number | 536078 |
| Leaf Count | 8 |
| Capacity (Per Pair) | ~1,750 kg |
| Leaf Width | 60 mm |

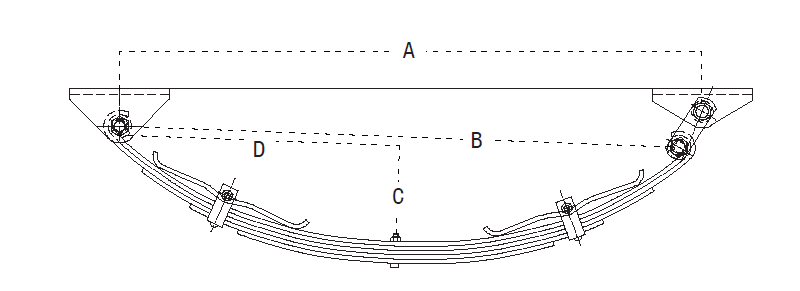

| Eye-to-Eye Length (B) | ~841 mm |
| Installed Length (A) | ~865 mm |
| Free Camber (C) | ~158 mm |
| Bolt Center Distance (D) | ~420 mm |
| Shackle Bolt Diameter | M16 greaseable |
| Spring Bush Size | 5/8″ × 7/8″ × 60 mm |
| Finish | Black |
| In the Box | Spring, brackets, M16 bolts & nyloc nuts |
| Ideal For | Off-road trailer, caravan suspension needs |
