Overview

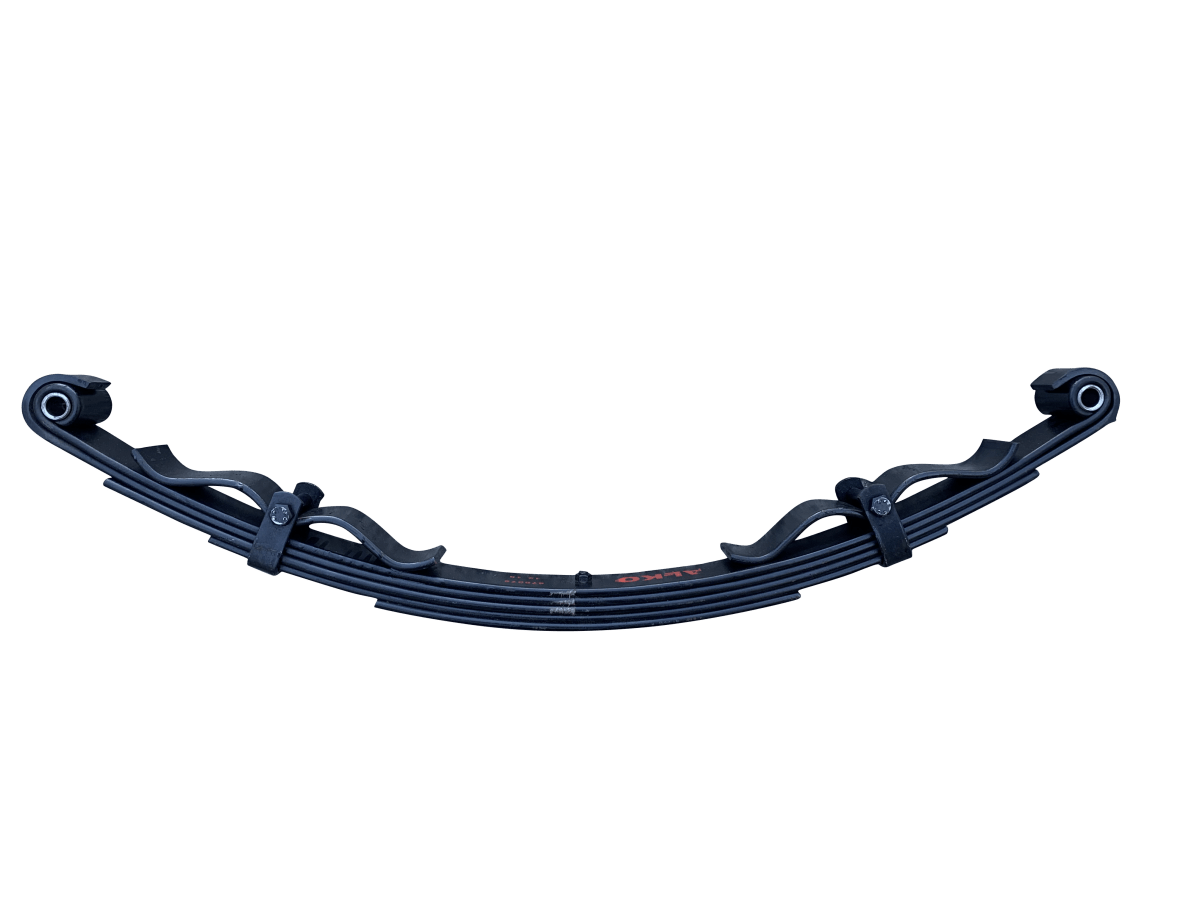

Engineered for heavy-duty off-road trailers and caravans, the AL‑KO Outback Rebound 9‑Leaf Shackle Spring (P/N 536079) offers robust performance under load. Rated at 2,000 kg per pair, it features a 60 mm leaf width and precision-engineered bushings for maximum durability in rugged terrain.

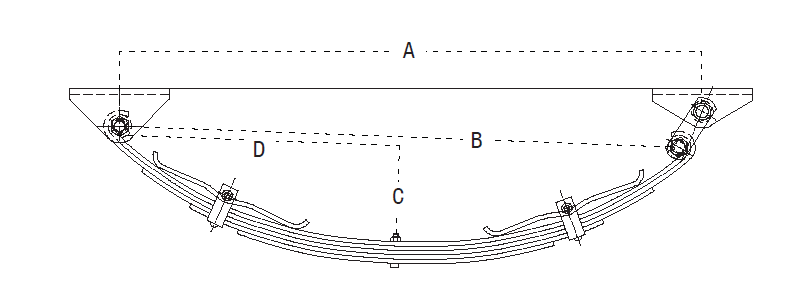

The spring includes mounting plates and greaseable M16 shackle bolts, ready to install. It has a black finish, 841 mm eye-to-eye length (B), installed length ~865 mm (A), free camber ~158 mm (C), and bolt center 420 mm (D).
🔧 Key Features
-
✅ 9‑leaf heavy-duty design, rated 2,000 kg per pair
-
✅ Shackle-eye style spring, complete with mounting plates and M16 greaseable bolts
-
✅ 60 mm wide leaf construction with steel bush wrap for shock resistance
-
✅ Black powder finish, built for off-road and towing durability
-
✅ Includes mounting hardware, ready for installation
📋 Specifications
| Feature | Specification |
|---|---|
| Part Number | 536079 |
| Leaf Count | 9 |
| Capacity (Per Pair) | ~2,000 kg |
| Spring Width | 60 mm |
| Eye-to-Eye Length (B) | ~841 mm |
| Installed Length (A) | ~865 mm |
| Free Camber (C) | ~158 mm |
| Bolt Center (D) | ~420 mm |
| Shackle Bolt Diameter | M16 greaseable |
| Bush Size | 5/8″ × 7/8″ × 60 mm |
| Finish | Black |
| In the Box | Spring, plates, M16 bolts & nyloc nuts |
