Product Overview

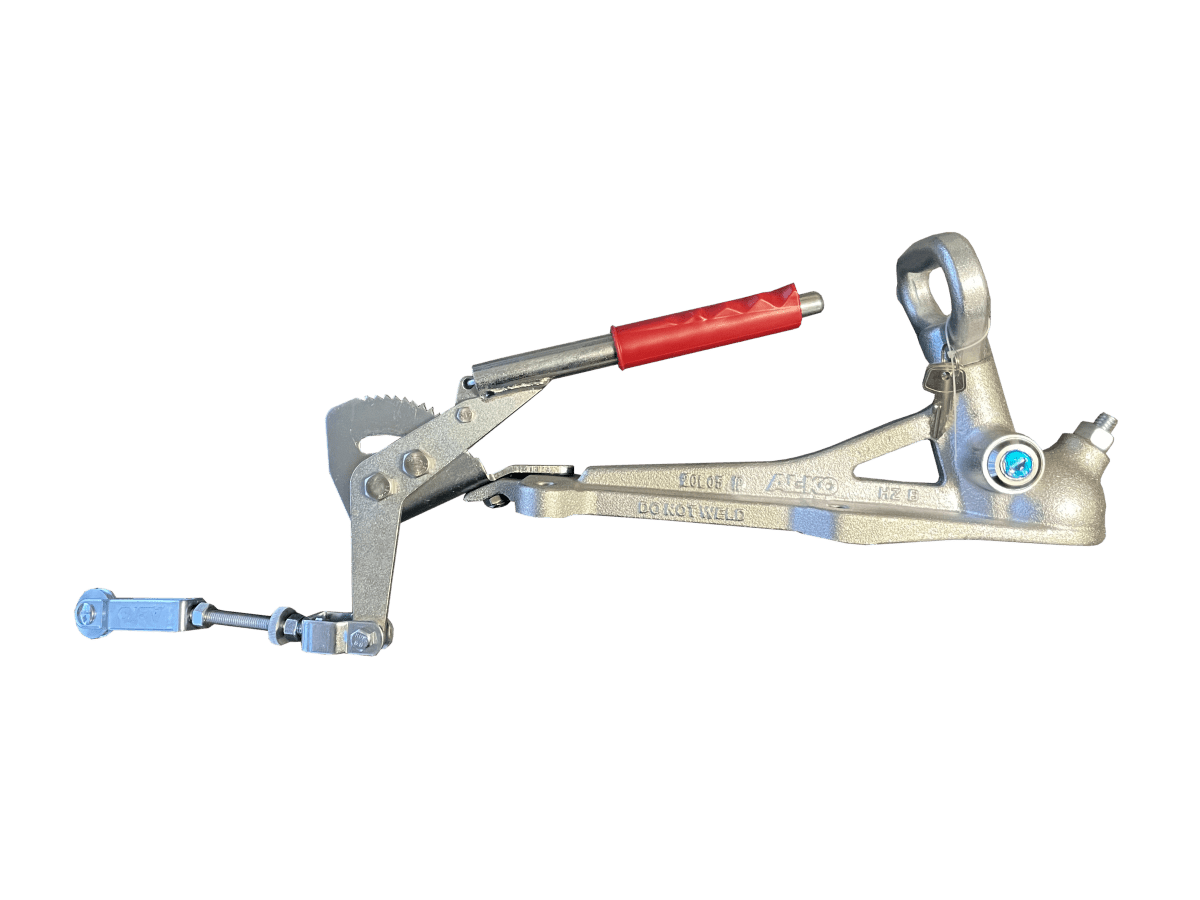

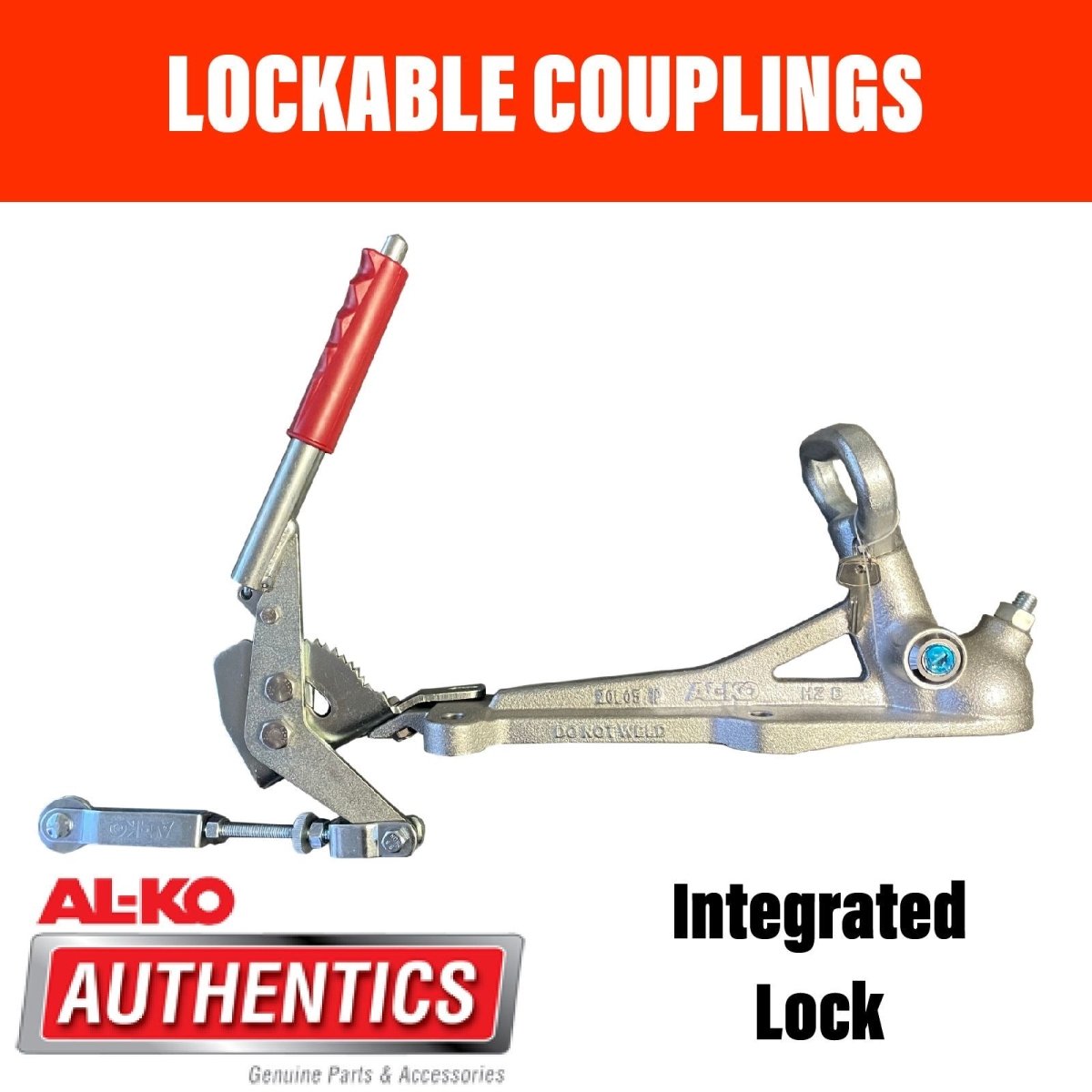

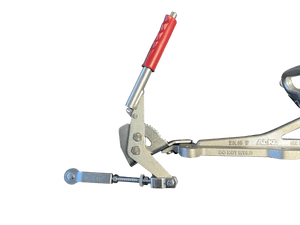

The AL‑KO 3.5 T Lockable Lockable Coupling with Premium Handbrake (P/N 614015LPBWCA) offers integrated security, robust performance, and user-friendly use in one premium coupling. Designed for braked trailers and caravans, it includes AL‑KO’s XL Grip ergonomic handle, a built-in lock, and push-button ratchet handbrake—eliminating the need for a separate coupling padlock.
Key Features & Technical Specifications
| Feature | Specification |
|---|---|
| Rated Capacity | 3,500 kg ATM (electrically braked trailers) |
| Ball Size | 50 mm standard diameter (~2″) |
| Mounting | 4-hole standard pattern; 182.5 × 55 mm hole spacing, 13.5 mm diameter |
| Finish | Zinc-plated steel for corrosion resistance |

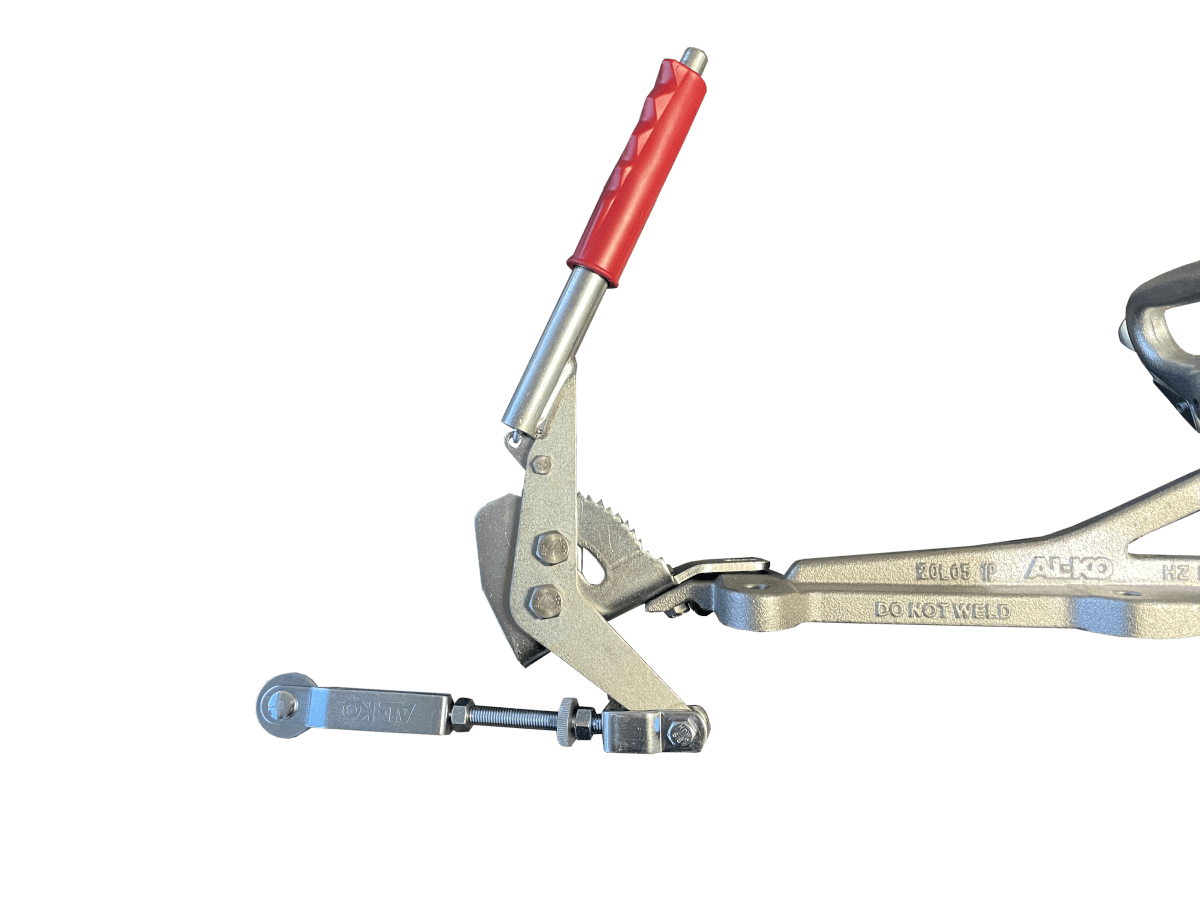

| Handbrake Style | Push-button XL Grip ratchet lever—designed for comfort and control |
| Locking System | Built‑in body lock with 2 keys—locks coupling while hitched or unhitched, no padlock required |
What’s Included
-
1 × AL‑KO Lockable Coupling with Premium Handbrake (P/N 614015LPBWCA)
-
2 × unique keys
-
Breakaway cable adjuster with stainless fittings
-
Ratchet park lever (for braked trailers)
-
Installation guide/manual
Benefits & Why It Matters
-
All‑in‑One Solution: Combines coupling, handbrake, and theft protection—no need for separate locks
-
Boosted Ergonomics: XL Grip handle simplifies coupling and handbrake use—especially useful in cold or wet conditions
-
Straight Bolt‑On Upgrade: Compatible with existing AL‑KO 4‑hole patterns—for fast, simple replacement
-
Legal & Safe: ADR 4177‑compliant for 3,500 kg rated towing with static park brake in braked versions
Warranty & Shipping
-
Covered by a 12-month AL‑KO manufacturer warranty
-
Shipped from Queensland, typically dispatched within one business day
-
Australia-wide delivery calculated at checkout
