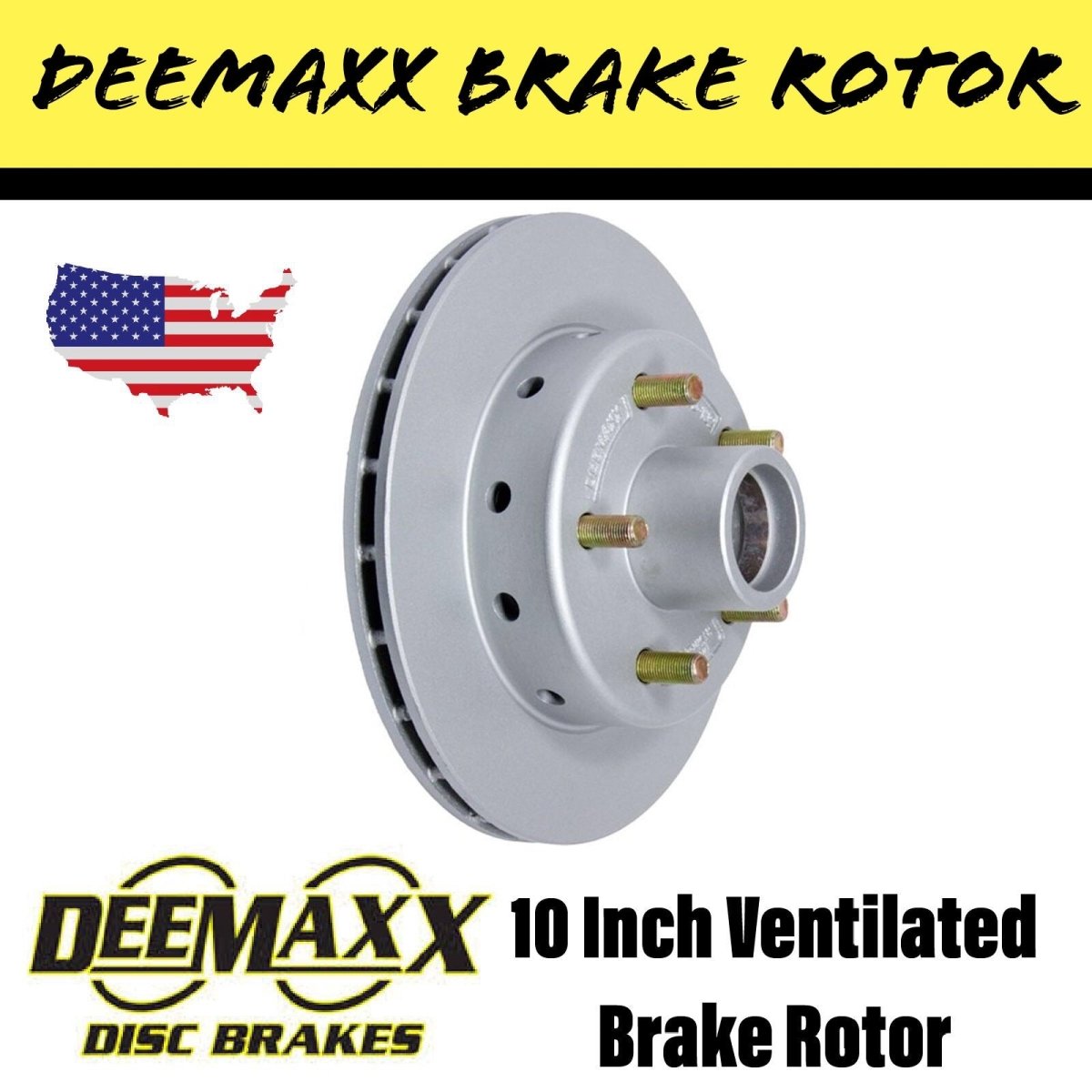

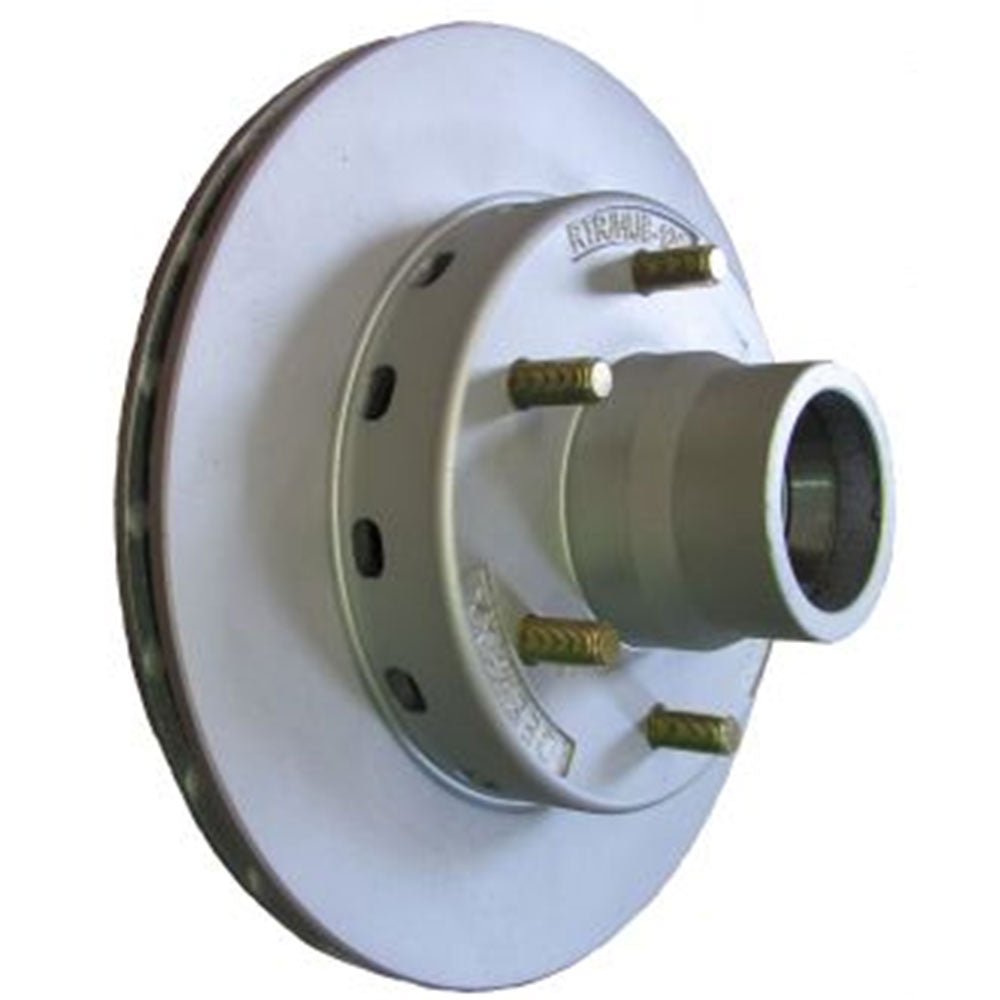

DeeMaxx 10.2″ Integral Ventilated Rotor & Hub – Maxx Coated (P/N RTR/HUB‑102‑MAXX)

DEEMAXX 10 INCH INTEGRAL  BRAKE ROTOR

P/N: RTR/HUB-102-MAXX

Overview
The DeeMaxx 10.2″ Integral Ventilated Rotor & Hub (P/N RTR/HUB‑102‑MAXX) is a one-piece, precision-machined hub/rotor assembly designed for product-matched 3,500 lb axles. Its Maxx corrosion coating offers more than 1,000 hours of salt spray resistance, making it ideal for marine or coastal use.

Technical Specifications

• Rotor diameter: 10.2″ (~259 mm); thickness: 0.815″ (~20.7 mm)

• Stud pattern: 5‑stud Ford 5×114.3 mm; studs: ½″ UNF

• Weight: approx. 16.7 lbs (7.6 kg) per unitskippermate.com.au+13DeeMaxx Components+13Trailers R Us+13R&M Trailer Spares+1easternmarine.com+1ptrailerusa.com+6Trailers R Us+6Trailer Parts Depot+6Brakes 4 TrailersCouplemate Trailer PartsBrakes 4 Trailers

• Ventilation and drain holes aid in cooling and water evacuation

Axle & Bearing Compatibility

• Designed for max 3,500 lb / 1,590 kg axle systems

• Fits DeeMaxx or Kodiak hydraulic caliper setups (requires cap-style brackets)

• Does not include bearings or seals—compatible with BS3500 bearing kits (inner L68149/L68111 outer L44649/L44610)Trailers R Us+15R&M Trailer Spares+15DeeMaxx Components+15

Installation & Care

• Ensure clean spindle and properly torqued wheel studs

• Grease bearings and seal before installation

• Inspect flange for runout and weight balance periodically

• Rinse after marine exposure to aid longevity

Shipping & Warranty

• Free shipping from Brisbane—most orders dispatched next business day

• Covered by DeeMaxx’s manufacturer 12-month product warranty
