DeeMaxx 12″ Dacromet Ventilated Rotor – 6‑Stud 5.5″ Bolt Pattern (6,000 lb Axle)

Overview

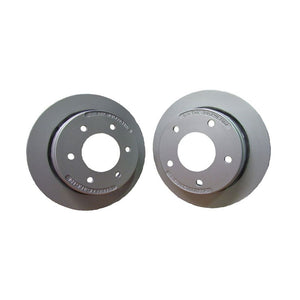

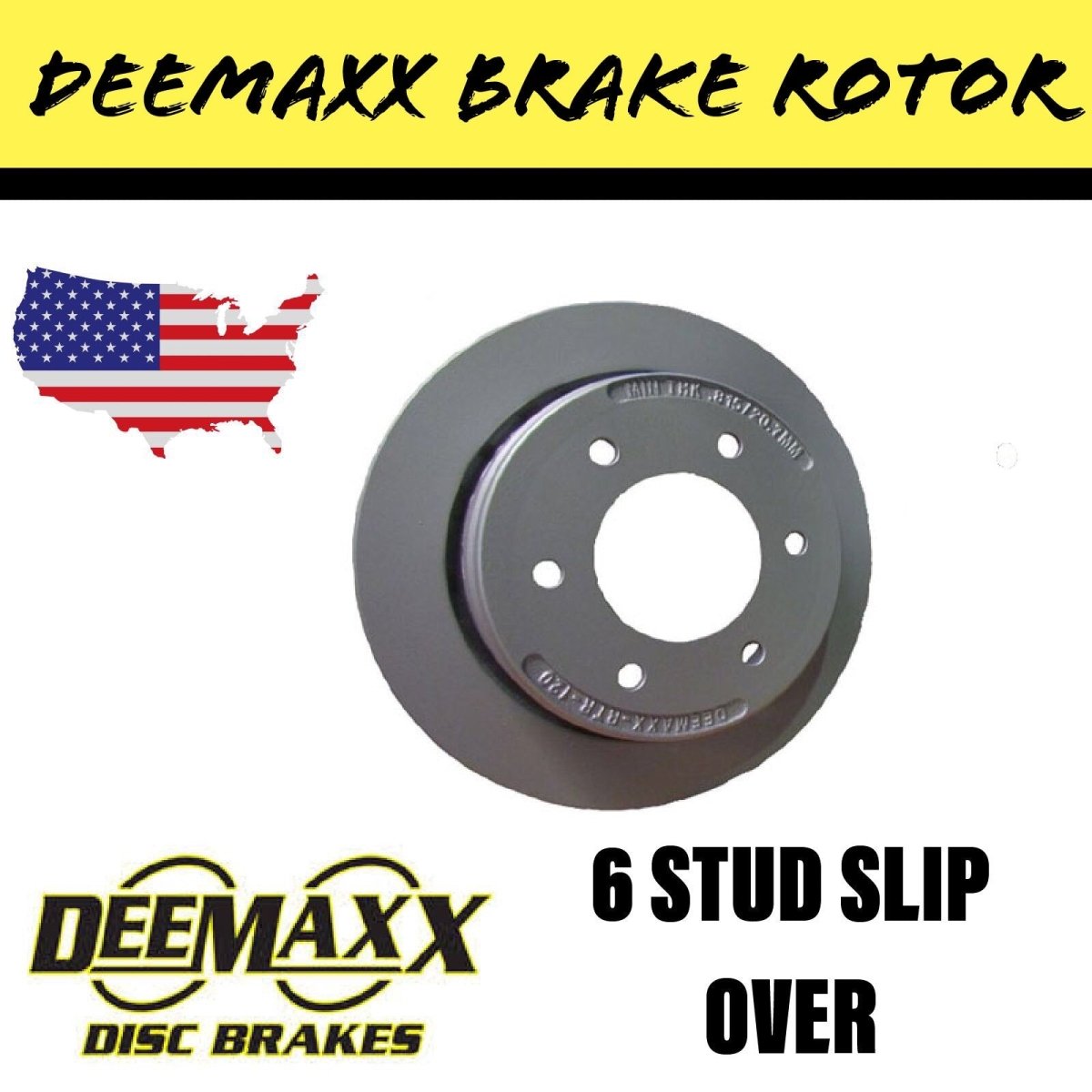

The DeeMaxx 12″ Dacromet Ventilated Brake Rotor (P/N: RTR‑120‑MAXX) is a rugged slip‑on rotor designed for American-style trailers with DeeMaxx or Kodiak hydraulic calipers.

Key Features

• Maxx/Dacromet anti-corrosion coating—salt spray rating over 1,000 hours ideal for marine environments

• Vented rotor design allows superior heat dissipation and reduces brake fade.

• Fits over standard 6-stud (6×5.5″ / 6×139.7 mm) trailer hubs; suitable for 15″+ wheels

• Rotor thickness: 22 mm, supporting axle loads up to 6,000 lb (~2,700 kg)

Compatibility

• Works with DeeMaxx and Kodiak hydraulic brake calipers (slip-on style, not integral hub models)

• Requires existing wheel studs (1/2″ UNF) and compatible hub flange

Installation & Maintenance

• Slip over brake hub and held in place by your wheel & lug nuts

• Use high-temperature marine grease on bearings due to elevated heat

• Inspect for rotor runout and corrosion at regular brake services

• Recommend replacing pads if rotor surface shows scoring or grooves

Warranty & Shipping

• Ships from Brisbane—typically dispatched within 1 business day

• Backed by DeeMaxx OEM warranty and meets SAE J2681 brake testing standards
