Overview

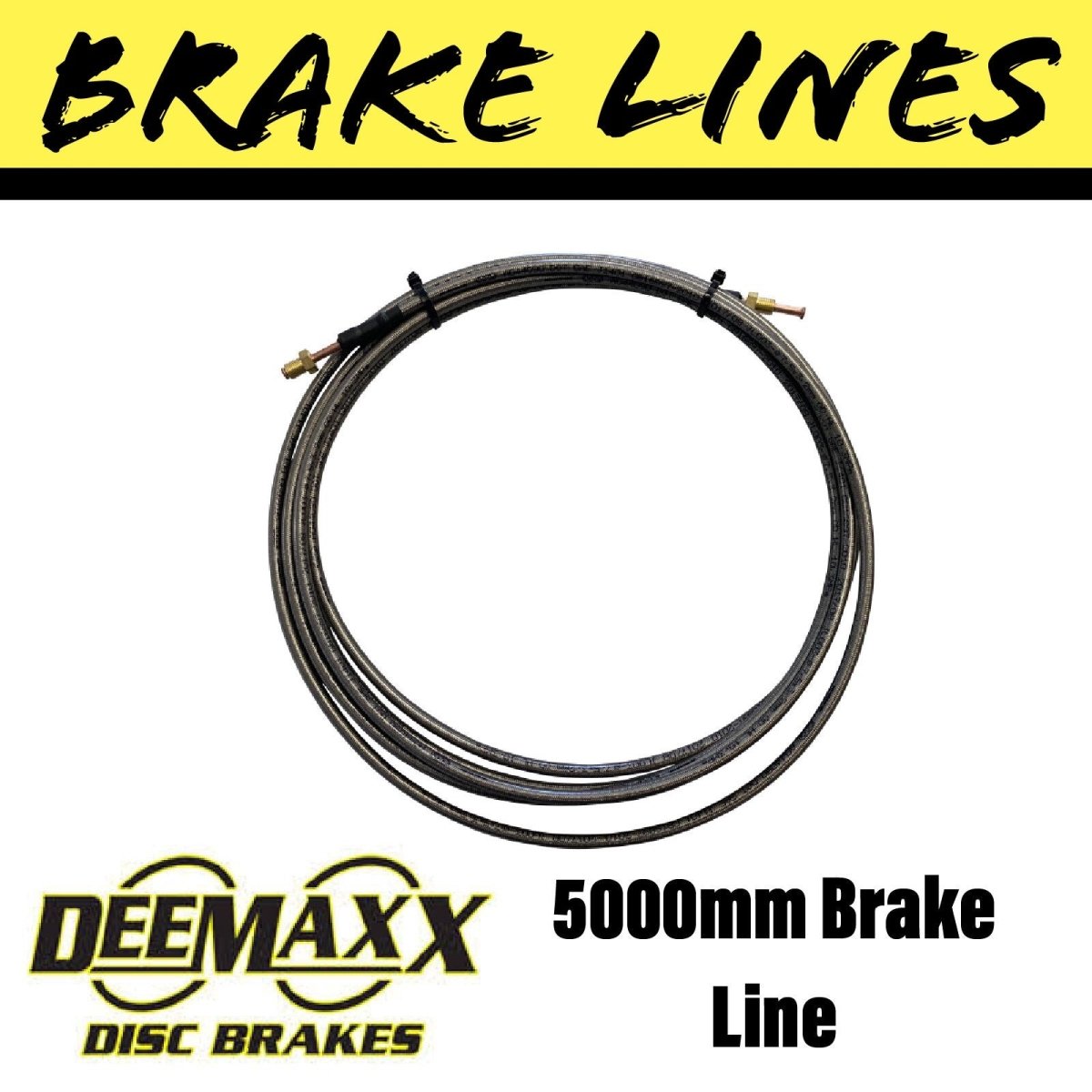

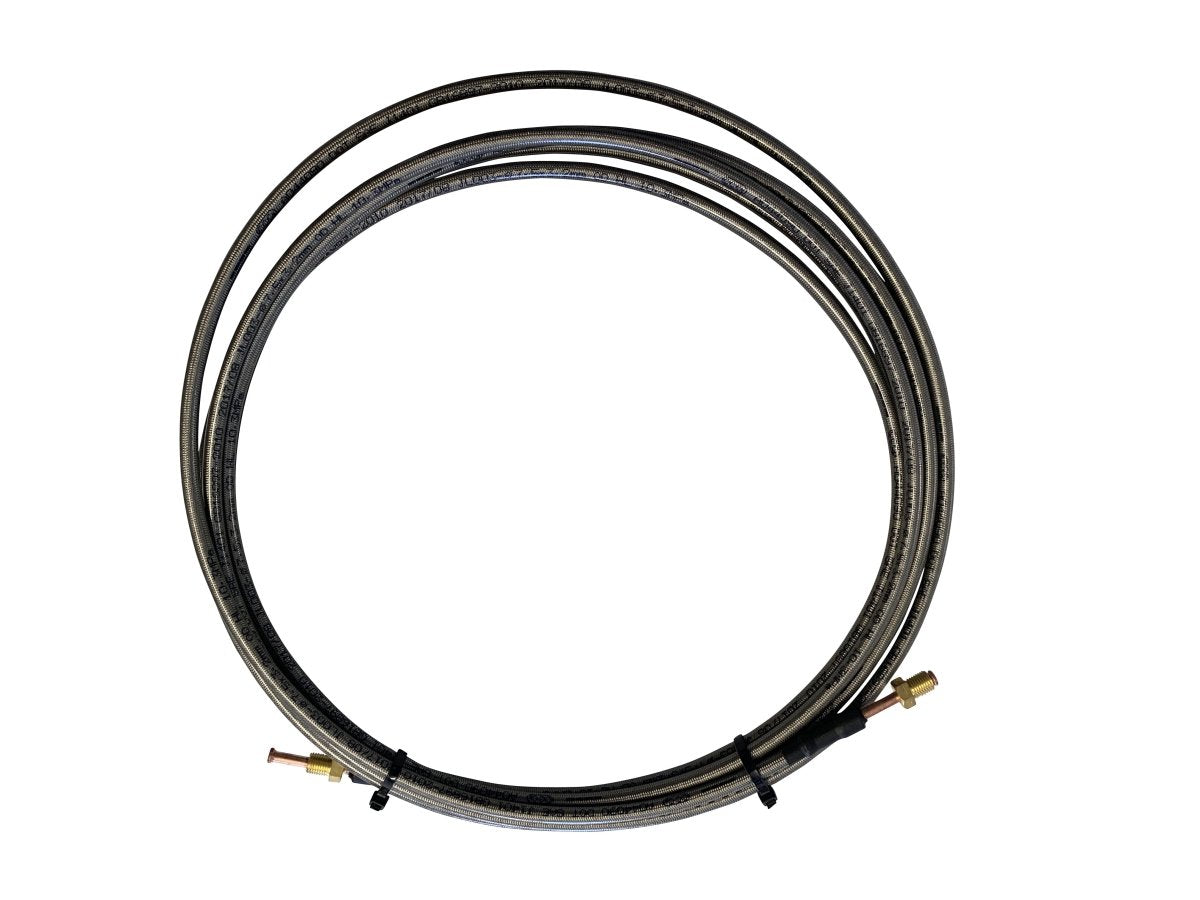

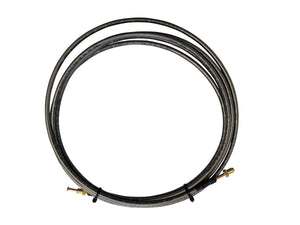

This 5,000 mm stainless steel braided brake hose (Part EBS.BL.5000) features a high-quality PTFE (Teflon) inner liner wrapped with a stainless steel braid—minimizing expansion under pressure, resisting corrosion, and providing consistent brake response. Fitted with pre-flared 3/8″ UNF inverted-flare brass fittings, it's ready for installation—no flaring tools needed.
Fully certified to SAE J1401 and U.S. DOT standards, it’s ideal for hydraulic brake runs in long chassis trailers, tandem or tri‑axle trailers, boat trailers, campers, and more.
What’s Included
-
1 × 5,000 mm stainless steel PTFE-lined brake hose
-
Pre-flared 3/8″ UNF inverted-flare brass fittings
Key Features
✅ SAE J1401 / DOT certified—meets Australian and international brake standards
✅ Minimal hose expansion—PTFE core enhances pedal feel and braking efficiency
✅ Plug-and-play installation—no onsite flaring required
✅ Superior corrosion resistance—ideal for marine, coastal, and high-moisture use
✅ High flexibility and kink resistance—perfect for routing through chassis and suspension
✅ Backed by 12‑month manufacturer warranty—ships next business day from Brisbane
Technical Specifications
Specification | Details |
---|---|
Part Number | EBS.BL.5000 |
Length | 5,000 mm |
Thread Size | 3/8″ UNF inverted flare (brass) |
Inner Core | PTFE (Teflon) |
Outer Braid | Stainless steel |
Compliance | SAE J1401 & U.S. DOT |
Installation | Pre-flared—no flaring required |
Warranty | 12‑month manufacturer coverage |
Applications
-
Long brake runs in tandem or tri-axle trailer setups
-
Hydraulic brake lines on boat trailers, campers, caravans needing 5 m routing
-
Replacement of copper or rubber lines where flexibility and corrosion resistance are essential
Why Choose This Hose?
Compared to rubber hoses, stainless braided lines with PTFE cores offer far less pressure-induced expansion, meaning firmer and more responsive braking performance. This 5 m length accommodates complex chassis and A-frame routing without compromising compliance or performance.
🔧 Installation Notes
-
Keep brake hose secured and routed using stainless P‑clips to prevent bend and abrasion
-
Maintain smooth, gradual curves—avoid tight angles through suspension pivot zones
-
Hand-tighten fittings before final torque to prevent twisting hose
-
Fully bleed hydraulic system after installation to ensure air-free braking
