Overview
This 6000 mm Stainless Steel Brake Line Kit (Part BLK.6000S) is a comprehensive brake hose solution for tandem-axle trailers up to ~7 m. Built with braided stainless steel hoses and PTFE (Teflon®) inner cores, all hoses come pre-flared with 3/8″ UNF fittings and include brass 3-way joiners—no flaring tools required. Certified to SAE J1401 and US DOT standards, the kit is ideal for boat trailers, caravans, campers, and RV brake installations.

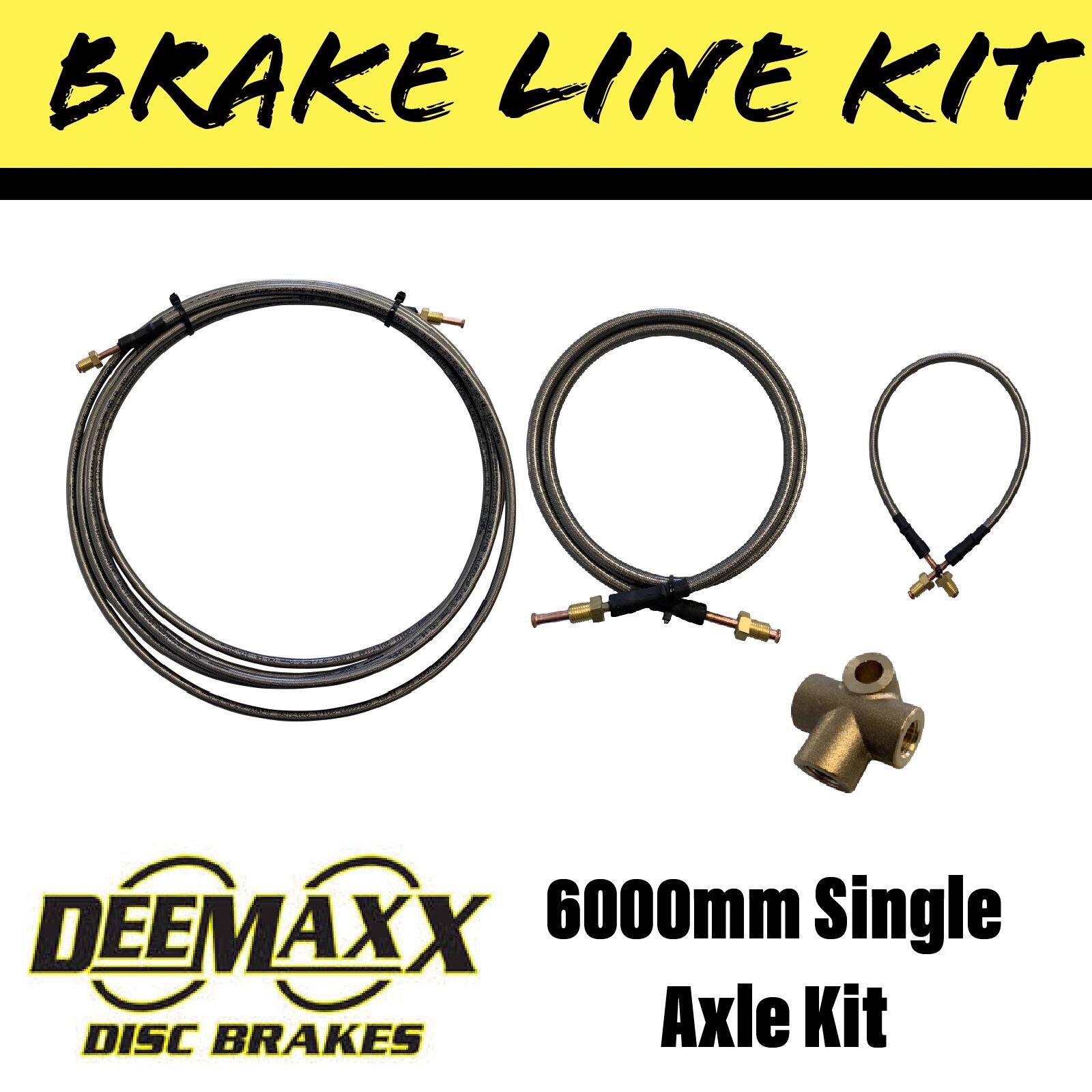

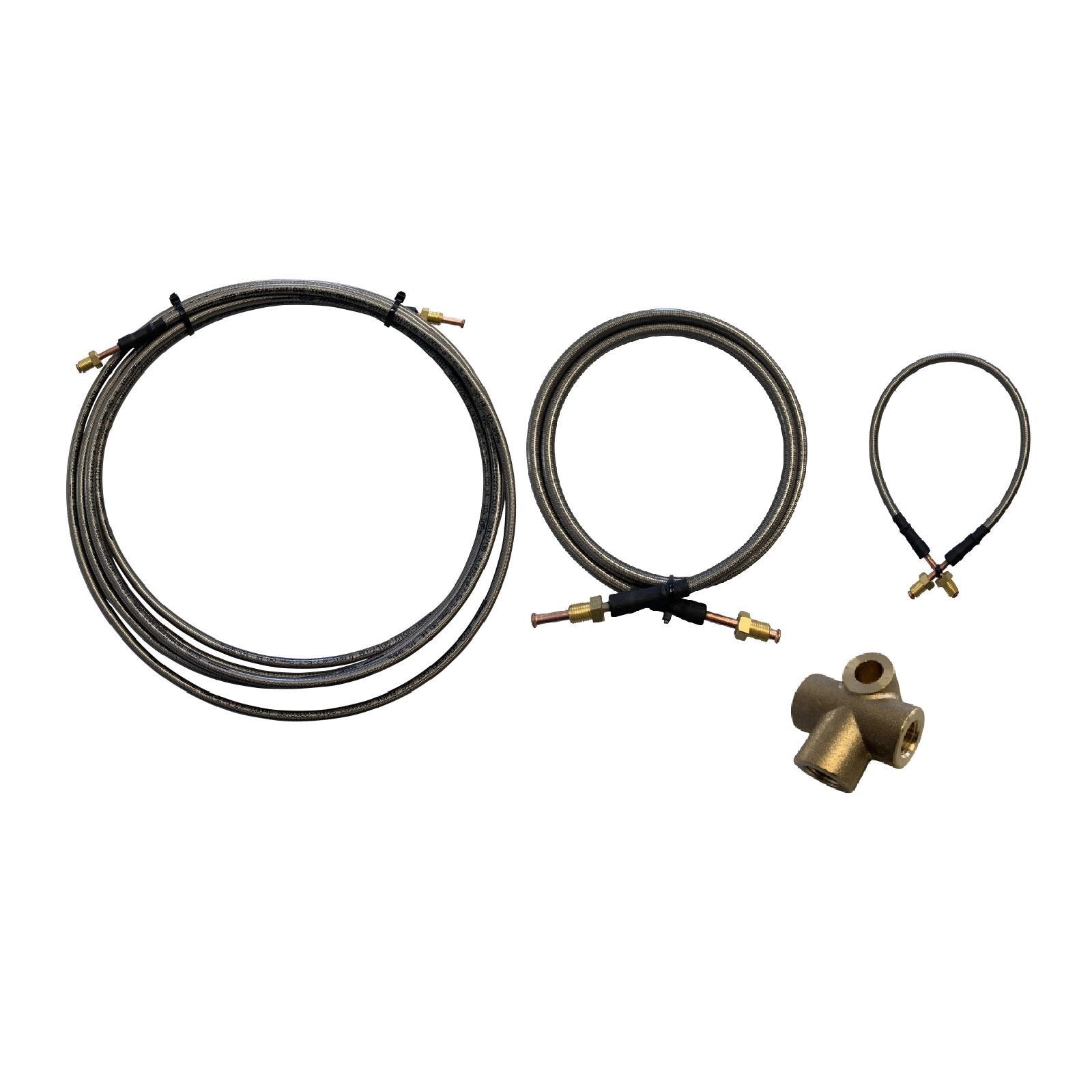

✅ What’s Included
-
1 × 6000 mm main hose (straight ends)
-
1 × 2000 mm hoses (straight ends)
-
1 × 500 mm hoses (straight ends)
-
1× 3-way brass tee joiners (HU3) for 3/16″ hydraulic tube connection
🔧 Key Features
-
Fully pre-flared hoses—no onsite flaring needed
-
PTFE inner core with stainless braid—limits pressure expansion, maintains firm pedal feel
-
Rust and corrosion resistant—suitable for marine and high-moisture environments
-
SAE J1401 / DOT certified—compliant with Australian and US brake system regulations
-
Perfect for tandem-axle trailers—no rigid steel lines, quick install
-
12-month manufacturer warranty and next-business-day dispatch from Brisbane
⚙️ Technical Specifications
| Feature | Specification |
|---|---|
| Kit Code | BLK.6000S |
| Main Hose | 6000 mm (straight ends) |
| Secondary & Leg Hoses | 1 × 2000 mm, 1 × 500 mm |
| Fittings | 3/8″ UNF inverted flare (brass) |
| Joiners | 1 × 3-way brass tees (3/16″) |
| Compliance | SAE J1401 / US DOT certified |
| Warranty | 12-month manufacturer warranty |
🚚 Applications
Ideal for:
-
Tandem-axle and dual-axle trailers, boats, caravans, and RV setups up to ~7 m
-
Routing flexible brake lines without rigid copper tubing
-
Harsh environments like marine or coastal use
-
Users seeking tool-free, ready-to-fit hydraulic brake solutions
🔍 Why Choose This Kit?
Compared to rigid tubing or rubber hoses, stainless braided hoses with PTFE cores offer far less expansion, more responsive braking, and exceptional flexibility. This full kit covers main and axle runs—cutting installation time significantly while maintaining DOT/SAE compliance and reliability.
🛠 Installation Tips
-
Secure hoses to chassis using stainless steel P‑clips to prevent abrasion.
-
Keep hose bends smooth—avoid tight angles near suspension pivots.
-
Hand-tighten fittings before applying final torque—avoid twisting the hose.
-
Bleed the hydraulic system thoroughly after installation to eliminate air.
