Overview

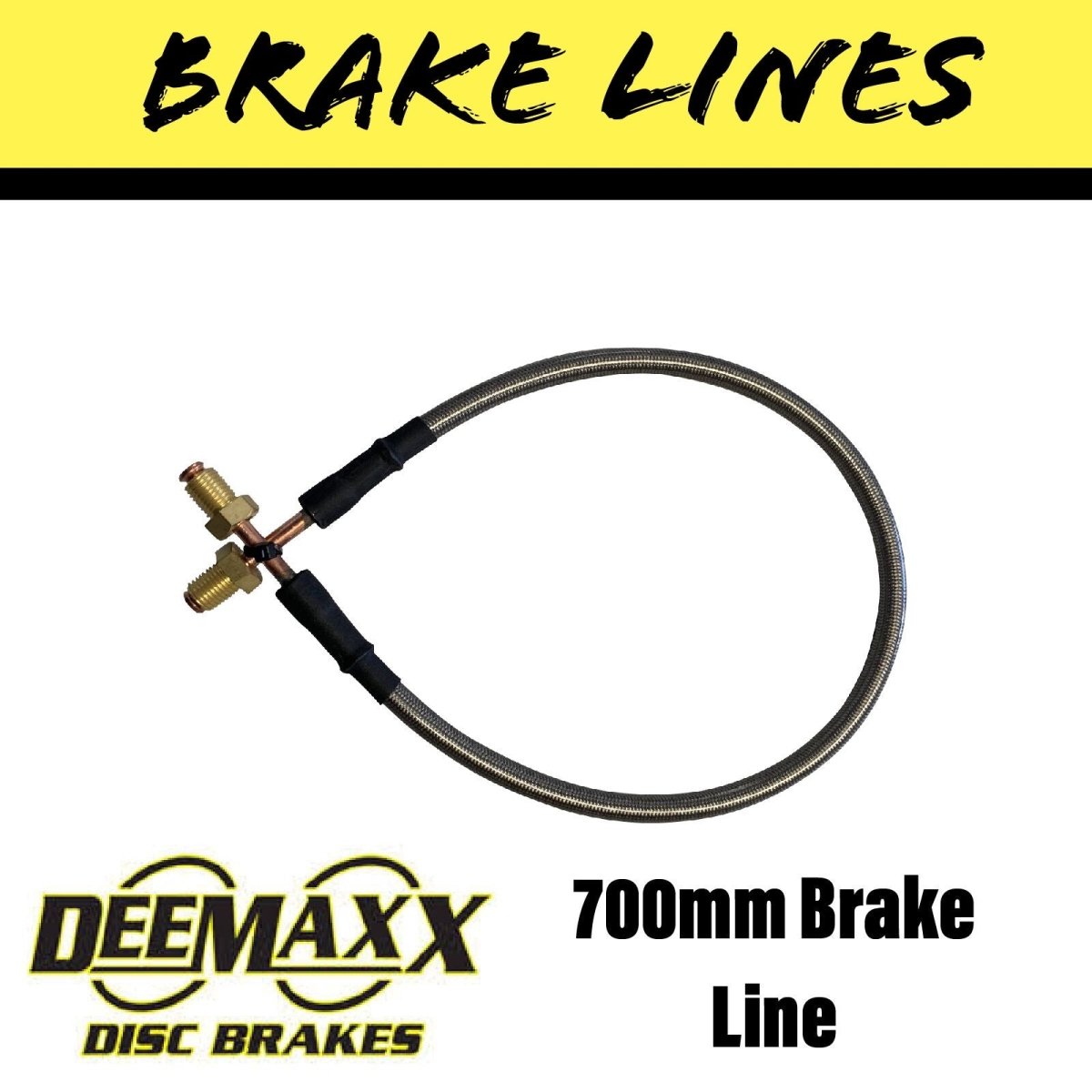

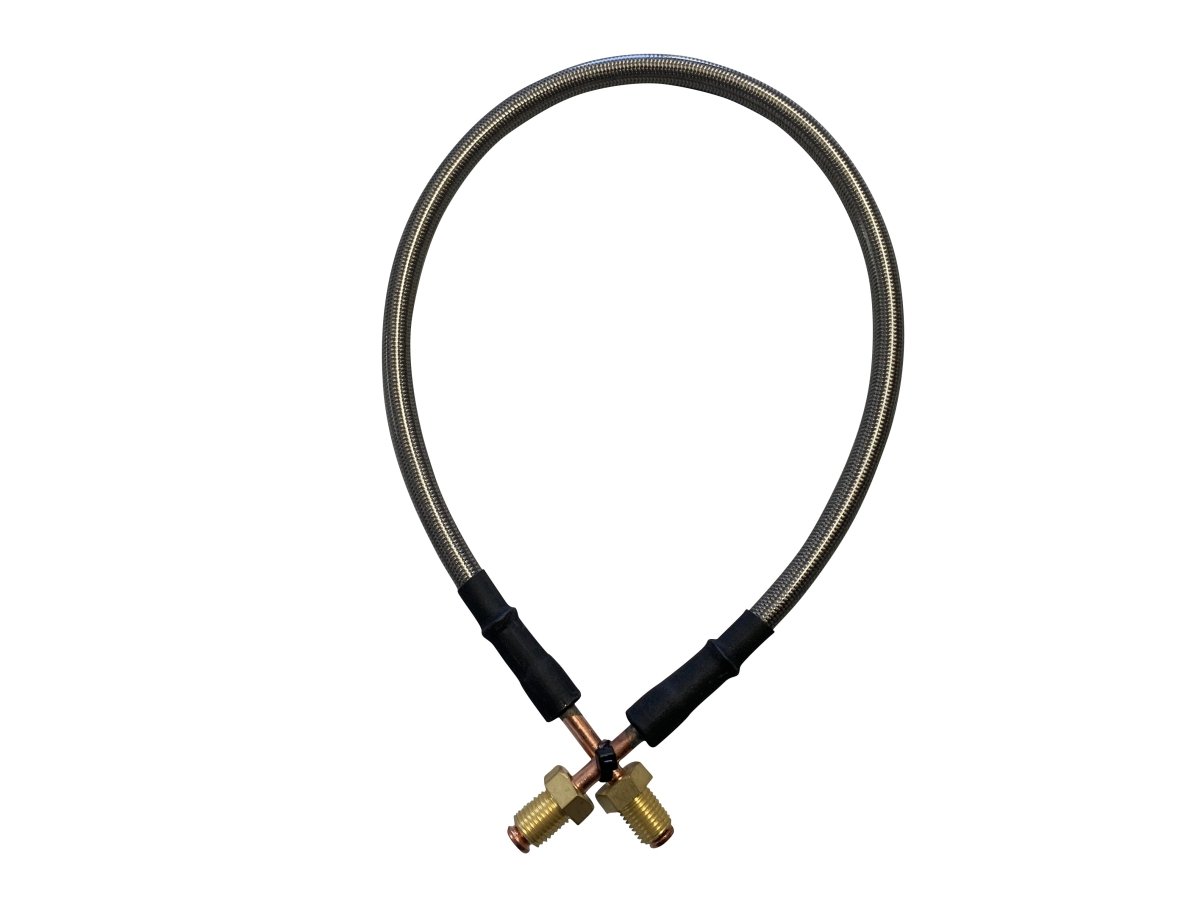

Enhance your trailer’s hydraulic brake performance with the 700 mm stainless steel braided brake hose (Part EBS.BL.0700). Featuring a PTFE (Teflon) inner tube and durable stainless steel braid, this hose delivers minimal expansion under pressure, corrosion resilience, and direct brake pedal feedback.
Pre-flared 3/8″ UNF inverted-flare brass fittings eliminate the need for onsite tools. Fully compliant with SAE J1401 and DOT standards, it’s an ideal choice for trailers, caravans, and boat trailers—especially in marine or vibration-intensive applications.
What’s Included
-
1 × 700 mm stainless steel braided brake hose with PTFE inner core
-
Pre-assembled inverted flare fittings (3/8″ UNF)
Key Features
✅ SAE J1401 / DOT Compliant — meets stringent hydraulic safety standards
✅ Minimal expansion under load — firm brake response ensured thanks to PTFE core
✅ Ready-to-fit system — no flaring required, saving time on installation
✅ Marine-grade construction — stainless braiding for maximum corrosion resistance
✅ Flexible and kink-resistant — handle chassis and suspension movement easily
✅ Fast dispatch from Brisbane with next-day shipping and a 12‑month warranty on all brake hoses
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | EBS.BL.0700 |
| Length | 700 mm |
| Thread Size | 3/8″ UNF inverted-flare fittings |
| Core Tube | PTFE (Teflon) |
| Outer Braid | Stainless steel |
| Compliance | SAE J1401, DOT |
| Installation | Pre-flared — no flaring required |
| Warranty | 12‑month manufacturer coverage |
Applications
-
Hydraulic braking systems in trailers, boats, and caravans
-
Ideal for corrosive or high-moisture environments
-
Upgrade from rigid copper or rubber lines without flaring hassle
-
Suited for installations up to 700 mm internal hose length
Why Choose This Brake Hose?
Compared to conventional rubber hoses, this 700 mm stainless line drastically reduces expansion, delivering firmer brake control and enhanced safety. The braid resists corroding coastal environments, and the ready-to-install fittings save time and frustration. Perfect for DIYers and professional mechanics alike.
🔧 Installation Tips
-
Secure the hose firmly with P‑clips to avoid chafing.
-
Avoid tight angles—use smooth bends through suspension zones.
-
Hand-tighten fittings before final torque, preventing hose twist.
-
Fully bleed the brake system after installation to eliminate air.
