Overview

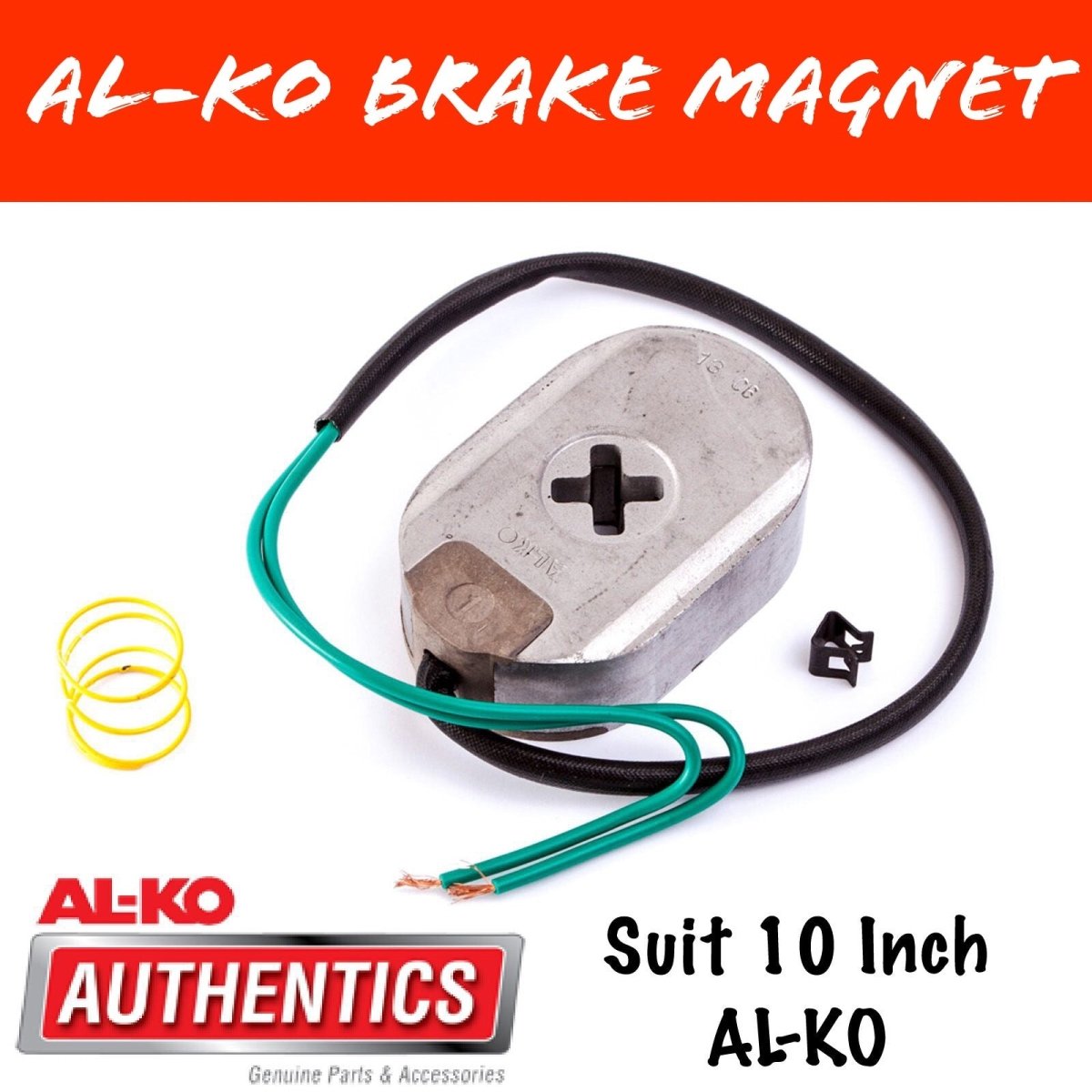

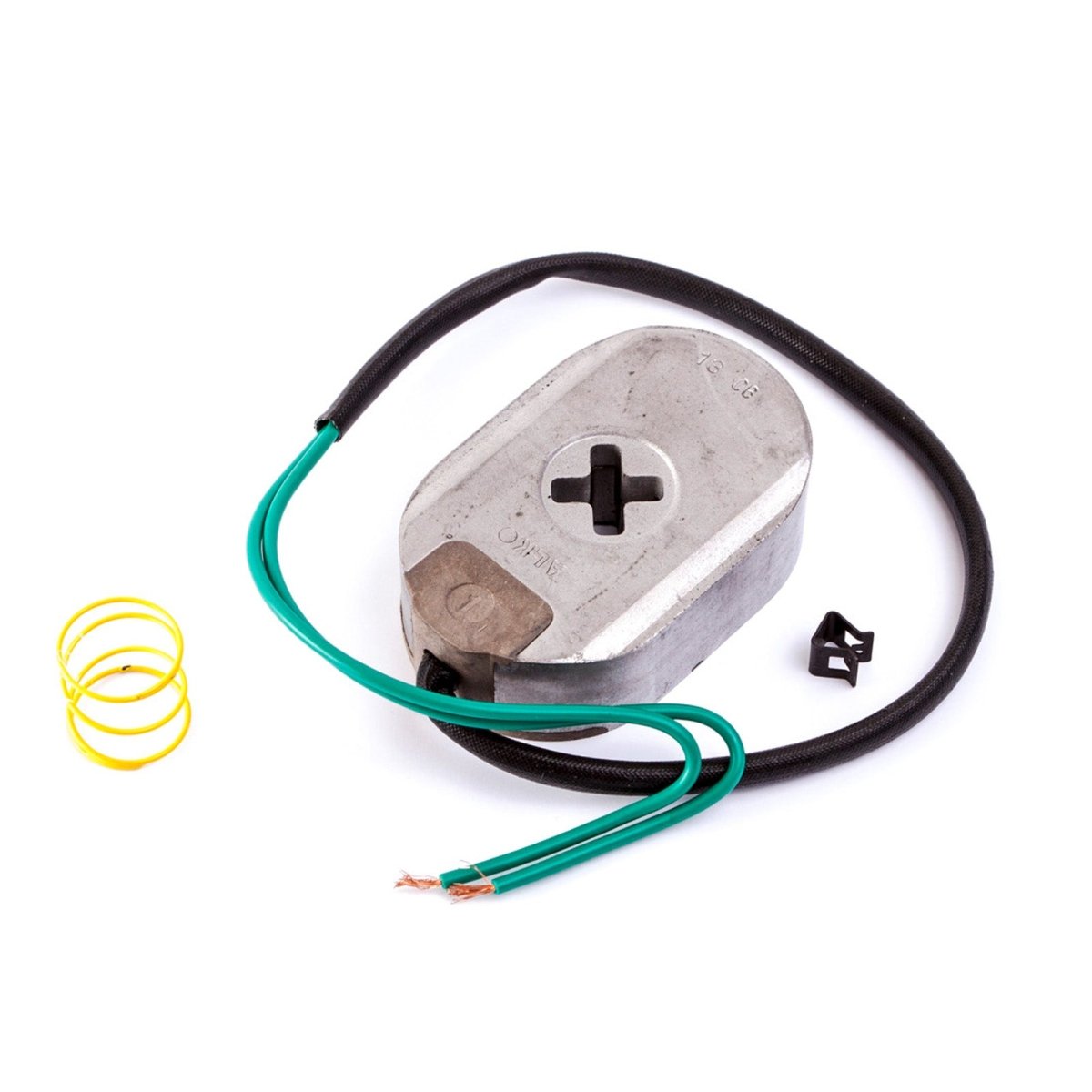

Enhance braking performance with this genuine AL‑KO 10″ × 2¼″ oval electric brake magnet kit (Part #339010) — suitable for one wheel only (left or right). Compatible with AL‑KO, Dexter, and Hayes standard electric backing plates, this kit includes everything needed for a quick and secure installation.
What’s Included
-
1 × oval-shaped electric brake magnet
-
1 × spring
-
1 × retaining clip
Key Features
✅ Factory-grade AL‑KO part #339010 — exact match for AL‑KO, Hayes, or Dexter brake systems
✅ Oval magnet profile — enhances contact area and braking efficiency while improving wear life
✅ Wear indicator holes for easy inspection—replace magnet when fewer than four holes are visible
✅ Single-wheel kit — LH and RH magnets are interchangeable and sold individually
✅ In-stock dispatch from Brisbane — fast shipping Australia-wide with 12-month ACL warranty
Technical Specifications
| Specification | Detail |
|---|---|
| Magnet Size | 10″ × 2¼″ (254 mm × 57 mm) |
| AL‑KO Part Number | 339010 |
| Fitting Options | Left or Right wheel only |
| Includes Hardware | Spring & retaining clip |
| Compatible With | AL‑KO, Dexter, Hayes electric systems |
| Application | 3,500 lb (≈1,590 kg) axle brake systems |
Applications
-
Ideal replacement for worn or noisy brake magnets
-
Perfect for trailer, caravan, boat, or camper brake systems using 10″ electric drums
-
Recommended alongside brake shoes for full braking overhaul
Why Choose the AL‑KO Oval Magnet?
The oval-shaped magnet ensures stronger engagement and more efficient brake actuation. Compared to aftermarket options, this OEM magnet offers wear indicators and is backed by 12-month warranty for peace of mind. It fits widely used AL‑KO, Hayes, and Dexter 10″ brake plates.
🔧 Installation Tips
-
Identify correct side (LH/RH not required—interchangeable).
-
Clean backing plate lever and pivot before installation.
-
Clip the magnet fully and ensure spring retention is secure.
-
Verify wear-hole visibility pre- and post-installation.
-
Replace opposing wheel magnet if wear is uneven.
-
Test brake engagement with controller after installation.
