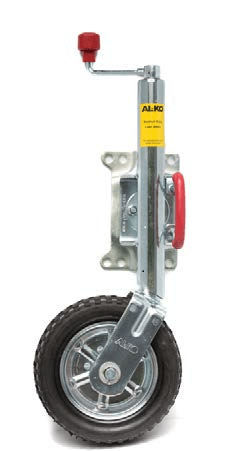

PREMIUM JOCKEY WHEEL WITH LOCKING PIN SWIVEL BRACKET SLS TYPE
Ease of use is the benefit when selecting an AL-KO Swivel Bracket Jockey Wheel. No need to
remove it from the trailer - just pull the release handle and the jockey wheel rotates into a
suitable travelling position. This unique design is covered by Registered Design in Australia and
New Zealand. The swivel bracket can be either welded or bolted to the drawbar. A selection
of mounting holes allows the use of u-bolts to attach the jockey wheel to.
Jockey Wheel,250mm (10”) 3 bolt lock pin
swivel bracket, Zinc.

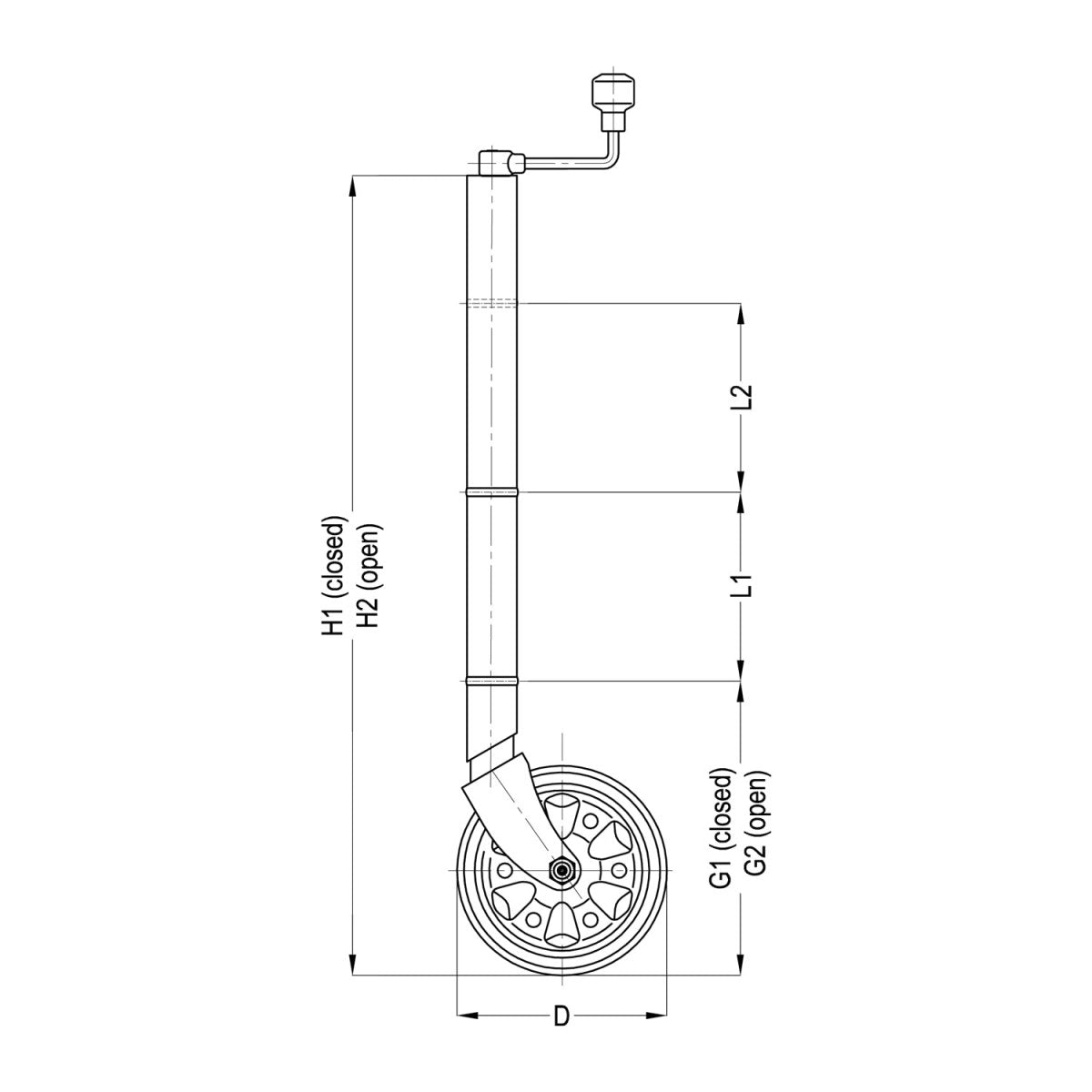

Wheel Size (D): 200mm dia.
Static Capacity: 400 kg
Tube O.D.: 48mm
Closed H1: 630mm
Open H2: 880mm
Closed G1: 320mm
Open G2: 570mm
U1, U2, U3: 63, 113, 88mm
Weight: 11 kg
