AL-KO 8 INCH PREMIUM Clamp On Jockey Wheel
AL-KO 8 INCH PREMIUM Clamp On Jockey Wheel
AL-KO 8 INCH PREMIUM Clamp On Jockey Wheel

AL-KO 8 INCH PREMIUM Clamp On Jockey Wheel

Regular price
$99.00
Sale price
$99.00
Unit price
per
Tax included.

Jockey Wheel - 8" Wheel - With Weld On Or Bolt On Clamp

Part Number: 628100BX





Jockey Wheel - 8" Wheel - With Weld On Or Bolt On Clamp



Specifications:

  • Surface finish: Zinc Plated
  • Static Capacity: 400kg
  • Outer Tube Dia.: 48mm
  • Weight: 7kg
  • Wheel Dia.: 200mm
  • Mount holes per side: 1
  • Mounting Hole Dia.: 13mm
  • Hole spacing: 150mm

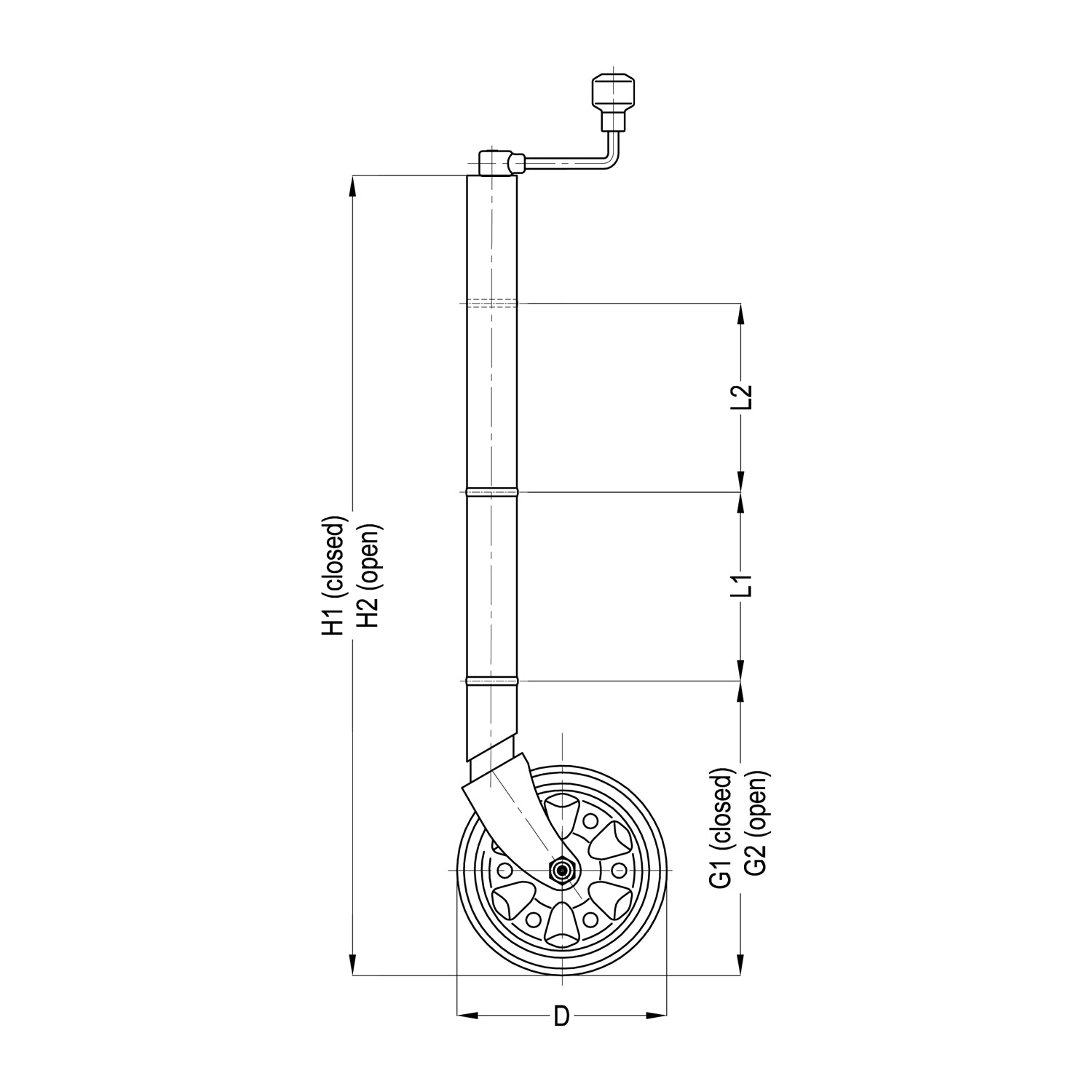

  • Height Closed (H1):567mm
  • Height Open (H2):832mm
  • Bottom of wheel to bottom rib center when closed (G1): 262mm
  • Bottom of wheel to bottob rib center when closed (G2): 522mm
